#include <ossimNitfLocalCartographicTag.h>

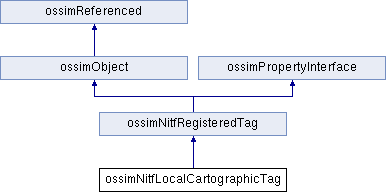

Inheritance diagram for ossimNitfLocalCartographicTag:

Public Member Functions
	ossimNitfLocalCartographicTag ()

virtual	~ossimNitfLocalCartographicTag ()

virtual void	parseStream (std::istream &in)

virtual void	writeStream (std::ostream &out)

virtual void	clearFields ()

void	setLengthUnits (const ossimString &units)

void	setEastingInterval (ossim_uint32 eastingInterval)

void	setNorthingInterval (ossim_uint32 northingInterval)

void	setEastingReferenceOrigin (ossim_float64 east)

void	setNorthingReferenceOrigin (ossim_float64 north)

Public Member Functions inherited from ossimNitfRegisteredTag
	ossimNitfRegisteredTag ()
	default constructor More...

	ossimNitfRegisteredTag (const std::string &tagName, ossim_uint32 tagLength)
	Constructor that takes name and size. More...

virtual	~ossimNitfRegisteredTag ()
	destructor More...

virtual std::string	getRegisterTagName () const
	This will return the name of the registered tag for this user defined header. More...

virtual const std::string &	getTagName () const
	This will return the name of the registered tag for this user defined header. More...

virtual void	setTagName (const std::string &tagName)

virtual ossim_uint32	getSizeInBytes () const
	Returns the length in bytes of the tag from the CEL or REL field. More...

virtual ossim_uint32	getTagLength () const
	Returns the length in bytes of the tag from the CEL or REL field. More...

virtual void	setTagLength (ossim_uint32 length)
	Set the tag length. More...

virtual void	parseStream (ossim::istream &in)=0
	This will allow the user defined data to parse the stream. More...

virtual void	writeStream (ossim::ostream &out)=0

virtual void	setProperty (ossimRefPtr< ossimProperty > property)

virtual ossimRefPtr< ossimProperty >	getProperty (const ossimString &name) const

virtual void	getPropertyNames (std::vector< ossimString > &propertyNames) const

virtual void	getMetadata (ossimKeywordlist &kwl, const char *prefix=0) const
	Default interface to populate keyword list with metadata. More...

virtual std::ostream &	print (std::ostream &out, const std::string &prefix=std::string()) const
	Pure virtual print method that outputs a key/value type format adding prefix to keys. More...

virtual bool	saveState (ossimKeywordlist &kwl, const ossimString &prefix) const

Public Member Functions inherited from ossimObject
	ossimObject ()

virtual	~ossimObject ()

virtual ossimObject *	dup () const

virtual ossimString	getShortName () const

virtual ossimString	getLongName () const

virtual ossimString	getDescription () const

virtual ossimString	getClassName () const

virtual RTTItypeid	getType () const

virtual bool	canCastTo (ossimObject *obj) const

virtual bool	canCastTo (const RTTItypeid &id) const

virtual bool	canCastTo (const ossimString &parentClassName) const

virtual bool	saveState (ossimKeywordlist &kwl, const char *prefix=0) const

virtual bool	loadState (const ossimKeywordlist &kwl, const char *prefix=0)

virtual std::ostream &	print (std::ostream &out) const
	Generic print method. More...

virtual bool	isEqualTo (const ossimObject &obj, ossimCompareType compareType=OSSIM_COMPARE_FULL) const

virtual void	accept (ossimVisitor &visitor)

Public Member Functions inherited from ossimReferenced
	ossimReferenced ()

	ossimReferenced (const ossimReferenced &)

ossimReferenced &	operator= (const ossimReferenced &)

void	ref () const
	increment the reference count by one, indicating that this object has another pointer which is referencing it. More...

void	unref () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...

void	unref_nodelete () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...

int	referenceCount () const

Public Member Functions inherited from ossimPropertyInterface
	ossimPropertyInterface ()

virtual	~ossimPropertyInterface ()

virtual void	setProperty (const ossimString &name, const ossimString &value)

virtual ossimString	getPropertyValueAsString (const ossimString &name) const

void	getPropertyList (std::vector< ossimRefPtr< ossimProperty > > &propertyList) const

void	setProperties (std::vector< ossimRefPtr< ossimProperty > > &propertyList)

Protected Attributes
char	theLengthUnits [4]
	FIELD: UNILOA. More...

char	theEastingInterval [6]
	FIELD: LOD. More...

char	theNorthingInterval [6]
	FIELD: LAD. More...

char	theEastingReferenceOrigin [16]
	FIELD: LSO. More...

char	theNorthingReferenceOrigin [16]
	FIELD: PSO. More...

Protected Attributes inherited from ossimNitfRegisteredTag
std::string	m_tagName

ossim_uint32	m_tagLength

Additional Inherited Members
Protected Member Functions inherited from ossimReferenced
virtual	~ossimReferenced ()

Detailed Description

Definition at line 5 of file ossimNitfLocalCartographicTag.h.

Constructor & Destructor Documentation

◆ ossimNitfLocalCartographicTag()

ossimNitfLocalCartographicTag::ossimNitfLocalCartographicTag ( )

Definition at line 20 of file ossimNitfLocalCartographicTag.cpp.

    : ossimNitfRegisteredTag(std::string("MAPLOB"), 43)
 {
 }

◆ ~ossimNitfLocalCartographicTag()

ossimNitfLocalCartographicTag::~ossimNitfLocalCartographicTag ( )

virtual

Definition at line 25 of file ossimNitfLocalCartographicTag.cpp.

26 {

27 }

Member Function Documentation

◆ clearFields()

void ossimNitfLocalCartographicTag::clearFields ( )

virtual

Definition at line 49 of file ossimNitfLocalCartographicTag.cpp.

References theEastingInterval, theEastingReferenceOrigin, theLengthUnits, theNorthingInterval, and theNorthingReferenceOrigin.

Referenced by parseStream().

 {
    memset(theLengthUnits, ' ', 3);
    memset(theEastingInterval, '0', 5);
    memset(theNorthingInterval, '0', 5);
    memset(theEastingReferenceOrigin, '0', 15);
    memset(theNorthingReferenceOrigin, '0', 15);

    theLengthUnits[3]              = '\0';
    theEastingInterval[5]          = '\0';
    theNorthingInterval[5]         = '\0';
    theEastingReferenceOrigin[15]  = '\0';
    theNorthingReferenceOrigin[15] = '\0';
 }

◆ parseStream()

void ossimNitfLocalCartographicTag::parseStream ( std::istream & in )

virtual

Definition at line 29 of file ossimNitfLocalCartographicTag.cpp.

References clearFields(), theEastingInterval, theEastingReferenceOrigin, theLengthUnits, theNorthingInterval, and theNorthingReferenceOrigin.

 {
    clearFields();

    in.read(theLengthUnits, 3);
    in.read(theEastingInterval, 5);
    in.read(theNorthingInterval, 5);
    in.read(theEastingReferenceOrigin, 15);
    in.read(theNorthingReferenceOrigin, 15);
 }

◆ setEastingInterval()

void ossimNitfLocalCartographicTag::setEastingInterval ( ossim_uint32 eastingInterval )

Definition at line 76 of file ossimNitfLocalCartographicTag.cpp.

References theEastingInterval.

 {
    ossim_uint32 temp = eastingInterval;

    if(temp > 99999)
    {
       temp = 99999;
    }

    std::ostringstream out;

    out << std::setw(5)
        << std::setfill('0')
        << temp;

    memcpy(theEastingInterval, out.str().c_str(), 5);
 }

◆ setEastingReferenceOrigin()

void ossimNitfLocalCartographicTag::setEastingReferenceOrigin ( ossim_float64 east )

Definition at line 112 of file ossimNitfLocalCartographicTag.cpp.

References theEastingReferenceOrigin.

 {
    std::ostringstream out;

    out << std::setw(15)
        << std::setfill(' ')
        << std::setprecision(1)
        << std::setiosflags(std::ios::fixed)
        << east;

    memcpy(theEastingReferenceOrigin, out.str().c_str(), 15);

 }

◆ setLengthUnits()

void ossimNitfLocalCartographicTag::setLengthUnits ( const ossimString & units )

Definition at line 64 of file ossimNitfLocalCartographicTag.cpp.

References ossimString::c_str(), theLengthUnits, ossimString::trim(), and ossimString::upcase().

 {
    ossimString temp = ossimString(units).trim().upcase();
    std::ostringstream out;

    out << std::setw(3)
        << std::setfill(' ')
        << temp.c_str();

    memcpy(theLengthUnits, out.str().c_str(), 3);
 }

◆ setNorthingInterval()

void ossimNitfLocalCartographicTag::setNorthingInterval ( ossim_uint32 northingInterval )

Definition at line 94 of file ossimNitfLocalCartographicTag.cpp.

References theNorthingInterval.

 {
    ossim_uint32 temp = northingInterval;

    if(temp > 99999)
    {
       temp = 99999;
    }

    std::ostringstream out;

    out << std::setw(5)
        << std::setfill('0')
        << temp;

    memcpy(theNorthingInterval, out.str().c_str(), 5);
 }

◆ setNorthingReferenceOrigin()

void ossimNitfLocalCartographicTag::setNorthingReferenceOrigin ( ossim_float64 north )

Definition at line 126 of file ossimNitfLocalCartographicTag.cpp.

References theNorthingReferenceOrigin.

 {
    std::ostringstream out;

    out << std::setw(15)
        << std::setfill(' ')
        << std::setprecision(1)
        << std::setiosflags(std::ios::fixed)
        << north;

    memcpy(theNorthingReferenceOrigin, out.str().c_str(), 15);
 }

◆ writeStream()

void ossimNitfLocalCartographicTag::writeStream ( std::ostream & out )

virtual

Definition at line 40 of file ossimNitfLocalCartographicTag.cpp.

References theEastingInterval, theEastingReferenceOrigin, theLengthUnits, theNorthingInterval, and theNorthingReferenceOrigin.

 {
    out.write(theLengthUnits, 3);
    out.write(theEastingInterval, 5);
    out.write(theNorthingInterval, 5);
    out.write(theEastingReferenceOrigin, 15);
    out.write(theNorthingReferenceOrigin, 15);
 }
