ossimNitfDataExtensionSegmentV2_1 Class Reference

#include <ossimNitfDataExtensionSegmentV2_1.h>

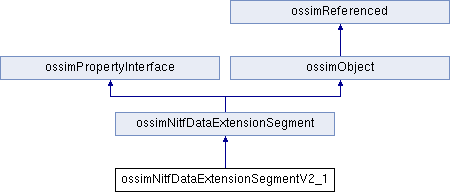

Inheritance diagram for ossimNitfDataExtensionSegmentV2_1:

Public Member Functions
	ossimNitfDataExtensionSegmentV2_1 ()
virtual	~ossimNitfDataExtensionSegmentV2_1 ()
virtual void	parseStream (std::istream &in, ossim_uint64 dataLength)
virtual void	writeStream (std::ostream &out)
virtual std::ostream &	print (std::ostream &out) const
	Generic print method. More...
virtual const std::vector< ossimNitfTagInformation > &	getTagList () const
virtual void	setTagList (const std::vector< ossimNitfTagInformation > &tagList)
virtual void	setSecurityMarkings (const ossimNitfFileHeaderV2_1 &fileHeader)
virtual ossim_uint32	getHeaderLength () const
virtual ossim_uint64	getDataLength () const
virtual void	setProperty (ossimRefPtr< ossimProperty > property)
virtual ossimRefPtr< ossimProperty >	getProperty (const ossimString &name) const
virtual void	getPropertyNames (std::vector< ossimString > &propertyNames) const
Public Member Functions inherited from ossimNitfDataExtensionSegment
	ossimNitfDataExtensionSegment ()
virtual	~ossimNitfDataExtensionSegment ()
Public Member Functions inherited from ossimPropertyInterface
	ossimPropertyInterface ()
virtual	~ossimPropertyInterface ()
virtual void	setProperty (const ossimString &name, const ossimString &value)
virtual ossimString	getPropertyValueAsString (const ossimString &name) const
void	getPropertyList (std::vector< ossimRefPtr< ossimProperty > > &propertyList) const
void	setProperties (std::vector< ossimRefPtr< ossimProperty > > &propertyList)
Public Member Functions inherited from ossimObject
	ossimObject ()
virtual	~ossimObject ()
virtual ossimObject *	dup () const
virtual ossimString	getShortName () const
virtual ossimString	getLongName () const
virtual ossimString	getDescription () const
virtual ossimString	getClassName () const
virtual RTTItypeid	getType () const
virtual bool	canCastTo (ossimObject *obj) const
virtual bool	canCastTo (const RTTItypeid &id) const
virtual bool	canCastTo (const ossimString &parentClassName) const
virtual bool	saveState (ossimKeywordlist &kwl, const char *prefix=0) const
virtual bool	loadState (const ossimKeywordlist &kwl, const char *prefix=0)
virtual bool	isEqualTo (const ossimObject &obj, ossimCompareType compareType=OSSIM_COMPARE_FULL) const
virtual void	accept (ossimVisitor &visitor)
Public Member Functions inherited from ossimReferenced
	ossimReferenced ()
	ossimReferenced (const ossimReferenced &)
ossimReferenced &	operator= (const ossimReferenced &)
void	ref () const
	increment the reference count by one, indicating that this object has another pointer which is referencing it. More...
void	unref () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...
void	unref_nodelete () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...
int	referenceCount () const

Static Public Attributes
static const ossimString	DESID_KW = "desid"
static const ossimString	DESCLSY_KW = "desclsy"
static const ossimString	DESDCTP_KW = "desdctp"
static const ossimString	DESDCDT_KW = "desdcdt"
static const ossimString	DESDCXM_KW = "desdcxm"
static const ossimString	DESDG_KW = "desdg"
static const ossimString	DESDGDT_KW = "desdgdt"
static const ossimString	DESCLTX_KW = "descltx"
static const ossimString	DESCATP_KW = "descatp"
static const ossimString	DESCRSN_KW = "descrsn"
static const ossimString	DESSRDT_KW = "dessrdt"
Static Public Attributes inherited from ossimNitfDataExtensionSegment
static const ossimString	DE_KW
static const ossimString	DESVER_KW
static const ossimString	DESOFLW_KW = "desoflw"
static const ossimString	DESITEM_KW = "desitem"
static const ossimString	DESSHL_KW = "desshl"
static const ossimString	DESSHF_KW = "desshf"
static const ossimString	DESDATA_KW = "desdata"
static const ossimString	DECLAS_KW = "declas"
static const ossimString	DESCODE_KW = "descode"
static const ossimString	DESCTLH_KW = "desctlh"
static const ossimString	DESREL_KW = "desrel"
static const ossimString	DESCAUT_KW = "descaut"
static const ossimString	DESCTLN_KW = "desctln"

Private Member Functions
void	clearFields ()

Private Attributes
ossimNitfDataExtIdentSecurityChunkV2_1	theIdentSecurityChunk
char	theOverflowedHeaderType [7]
char	theDataItemOverflowed [4]
char	theLengthOfUserDefinedSubheaderFields [5]
std::vector< unsigned char >	theUserDefinedSubheaderFields
std::vector< unsigned char >	theData
std::vector< ossimNitfTagInformation >	theTagList

Additional Inherited Members
Protected Member Functions inherited from ossimReferenced
virtual	~ossimReferenced ()

Detailed Description

Definition at line 44 of file ossimNitfDataExtensionSegmentV2_1.h.

Constructor & Destructor Documentation

ossimNitfDataExtensionSegmentV2_1()

ossimNitfDataExtensionSegmentV2_1::ossimNitfDataExtensionSegmentV2_1

(

)

Definition at line 64 of file ossimNitfDataExtensionSegmentV2_1.cpp.

References clearFields().

                                                                     :
   theUserDefinedSubheaderFields(0),
   theData(0)
{
   clearFields();
}

~ossimNitfDataExtensionSegmentV2_1()

ossimNitfDataExtensionSegmentV2_1::~ossimNitfDataExtensionSegmentV2_1 ( )

virtual

Definition at line 71 of file ossimNitfDataExtensionSegmentV2_1.cpp.

{

}

Member Function Documentation

clearFields()

void ossimNitfDataExtensionSegmentV2_1::clearFields ( )

private

Definition at line 198 of file ossimNitfDataExtensionSegmentV2_1.cpp.

References theData, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassAuthority, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassAuthType, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassReason, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassSystem, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtCodewords, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtControlAndHand, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtDeclassDate, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtDeclassExempt, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtDeclassType, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtReleasingInst, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityClass, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityClassText, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityConNum, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityDowngrade, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityDowngradeDate, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecuritySourceDate, theDataItemOverflowed, ossimNitfDataExtIdentSecurityChunkV2_1::theFilePartType, theIdentSecurityChunk, theLengthOfUserDefinedSubheaderFields, theOverflowedHeaderType, theTagList, ossimNitfDataExtIdentSecurityChunkV2_1::theUniqueDataExtTypeId, theUserDefinedSubheaderFields, and ossimNitfDataExtIdentSecurityChunkV2_1::theVersionDataFieldDef.

Referenced by ossimNitfDataExtensionSegmentV2_1(), and parseStream().

{
   memset(theIdentSecurityChunk.theFilePartType, ' ', 2);
   memset(theIdentSecurityChunk.theUniqueDataExtTypeId, ' ', 25);
   memset(theIdentSecurityChunk.theVersionDataFieldDef, 0, 2);
   memset(theIdentSecurityChunk.theDataExtSecurityClass, ' ', 1);
   memset(theIdentSecurityChunk.theDataExtClassSystem, ' ', 2);
   memset(theIdentSecurityChunk.theDataExtCodewords, ' ', 11);
   memset(theIdentSecurityChunk.theDataExtControlAndHand, ' ', 2);
   memset(theIdentSecurityChunk.theDataExtReleasingInst, ' ', 20);
   memset(theIdentSecurityChunk.theDataExtDeclassType, ' ', 2);
   memset(theIdentSecurityChunk.theDataExtDeclassDate, ' ', 8);
   memset(theIdentSecurityChunk.theDataExtDeclassExempt, ' ', 4);
   memset(theIdentSecurityChunk.theDataExtSecurityDowngrade, ' ', 1);
   memset(theIdentSecurityChunk.theDataExtSecurityDowngradeDate, ' ', 8);
   memset(theIdentSecurityChunk.theDataExtSecurityClassText, ' ', 43);
   memset(theIdentSecurityChunk.theDataExtClassAuthType, ' ', 1);
   memset(theIdentSecurityChunk.theDataExtClassAuthority, ' ', 40);
   memset(theIdentSecurityChunk.theDataExtClassReason, ' ', 1);
   memset(theIdentSecurityChunk.theDataExtSecuritySourceDate, ' ', 8);
   memset(theIdentSecurityChunk.theDataExtSecurityConNum, ' ', 15);

   memset(theOverflowedHeaderType, ' ', 6);
   memset(theDataItemOverflowed, '0', 3);
   memset(theLengthOfUserDefinedSubheaderFields, '0', 4);

   theIdentSecurityChunk.theFilePartType[2] = '\0';
   theIdentSecurityChunk.theUniqueDataExtTypeId[25] = '\0';
   theIdentSecurityChunk.theVersionDataFieldDef[2] = '\0';
   theIdentSecurityChunk.theDataExtSecurityClass[1] = '\0';
   theIdentSecurityChunk.theDataExtClassSystem[2] = '\0';
   theIdentSecurityChunk.theDataExtCodewords[11] = '\0';
   theIdentSecurityChunk.theDataExtControlAndHand[2] = '\0';
   theIdentSecurityChunk.theDataExtReleasingInst[20] = '\0';
   theIdentSecurityChunk.theDataExtDeclassType[2] = '\0';
   theIdentSecurityChunk.theDataExtDeclassDate[8] = '\0';
   theIdentSecurityChunk.theDataExtDeclassExempt[4] = '\0';
   theIdentSecurityChunk.theDataExtSecurityDowngrade[1] = '\0';
   theIdentSecurityChunk.theDataExtSecurityDowngradeDate[8] = '\0';
   theIdentSecurityChunk.theDataExtSecurityClassText[43] = '\0';
   theIdentSecurityChunk.theDataExtClassAuthType[1] = '\0';
   theIdentSecurityChunk.theDataExtClassAuthority[40] = '\0';
   theIdentSecurityChunk.theDataExtClassReason[1] = '\0';
   theIdentSecurityChunk.theDataExtSecuritySourceDate[8] = '\0';
   theIdentSecurityChunk.theDataExtSecurityConNum[15] = '\0';

   theOverflowedHeaderType[6] = '\0';
   theDataItemOverflowed[3]   = '\0';
   theLengthOfUserDefinedSubheaderFields[4] = '\0';
   theUserDefinedSubheaderFields.clear();
   theData.clear();
   theTagList.clear();
}

getDataLength()

ossim_uint64 ossimNitfDataExtensionSegmentV2_1::getDataLength ( ) const

virtual

Definition at line 303 of file ossimNitfDataExtensionSegmentV2_1.cpp.

References theData, and theTagList.

{
   ossim_uint64 totalDataLength = 0;
   if (theTagList.empty() == true)
   {
      totalDataLength = theData.size();
   }
   else
   {
      for (std::vector<ossimNitfTagInformation>::const_iterator iter = theTagList.begin();
         iter != theTagList.end(); iter++)
      {
         totalDataLength += iter->getTotalTagLength();
      }
   }

   return totalDataLength;
}

getHeaderLength()

ossim_uint32 ossimNitfDataExtensionSegmentV2_1::getHeaderLength ( ) const

virtual

Definition at line 293 of file ossimNitfDataExtensionSegmentV2_1.cpp.

References theIdentSecurityChunk, ossimNitfDataExtIdentSecurityChunkV2_1::theUniqueDataExtTypeId, theUserDefinedSubheaderFields, ossimString::trim(), and ossimString::upcase().

{
   if (ossimString(theIdentSecurityChunk.theUniqueDataExtTypeId).trim().upcase() == "TRE_OVERFLOW")
   {
      return 209;
   }

   return 200 + theUserDefinedSubheaderFields.size();
}

getProperty()

ossimRefPtr< ossimProperty > ossimNitfDataExtensionSegmentV2_1::getProperty ( const ossimString &  name ) const

virtual

Reimplemented from ossimPropertyInterface.

Definition at line 436 of file ossimNitfDataExtensionSegmentV2_1.cpp.

References ossimNitfDataExtensionSegment::DE_KW, ossimNitfDataExtensionSegment::DECLAS_KW, DESCATP_KW, ossimNitfDataExtensionSegment::DESCAUT_KW, DESCLSY_KW, DESCLTX_KW, ossimNitfDataExtensionSegment::DESCODE_KW, DESCRSN_KW, ossimNitfDataExtensionSegment::DESCTLH_KW, ossimNitfDataExtensionSegment::DESCTLN_KW, ossimNitfDataExtensionSegment::DESDATA_KW, DESDCDT_KW, DESDCTP_KW, DESDCXM_KW, DESDG_KW, DESDGDT_KW, DESID_KW, ossimNitfDataExtensionSegment::DESITEM_KW, ossimNitfDataExtensionSegment::DESOFLW_KW, ossimNitfDataExtensionSegment::DESREL_KW, ossimNitfDataExtensionSegment::DESSHF_KW, ossimNitfDataExtensionSegment::DESSHL_KW, DESSRDT_KW, ossimNitfDataExtensionSegment::DESVER_KW, theData, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassAuthority, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassAuthType, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassReason, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassSystem, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtCodewords, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtControlAndHand, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtDeclassDate, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtDeclassExempt, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtDeclassType, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtReleasingInst, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityClass, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityClassText, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityConNum, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityDowngrade, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityDowngradeDate, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecuritySourceDate, theDataItemOverflowed, ossimNitfDataExtIdentSecurityChunkV2_1::theFilePartType, theIdentSecurityChunk, theLengthOfUserDefinedSubheaderFields, theOverflowedHeaderType, ossimNitfDataExtIdentSecurityChunkV2_1::theUniqueDataExtTypeId, theUserDefinedSubheaderFields, ossimNitfDataExtIdentSecurityChunkV2_1::theVersionDataFieldDef, and ossimString::trim().

Referenced by ossimNitfWriter::addDataExtensionSegment().

{
   ossimProperty* property = 0;
   if (name == DE_KW)
   {
      property = new ossimStringProperty(name, ossimString(theIdentSecurityChunk.theFilePartType).trim());
   }
   else if (name == DESID_KW)
   {
      property = new ossimStringProperty(name, ossimString(theIdentSecurityChunk.theUniqueDataExtTypeId).trim());
   }
   else if (name == DESVER_KW)
   {
      property = new ossimStringProperty(name, ossimString(theIdentSecurityChunk.theVersionDataFieldDef).trim());
   }
   else if (name == DECLAS_KW)
   {
      property = new ossimStringProperty(name, ossimString(theIdentSecurityChunk.theDataExtSecurityClass).trim());
   }
   else if (name == DESCLSY_KW)
   {
      property = new ossimStringProperty(name, ossimString(theIdentSecurityChunk.theDataExtClassSystem).trim());
   }
   else if (name == DESCODE_KW)
   {
      property = new ossimStringProperty(name, ossimString(theIdentSecurityChunk.theDataExtCodewords).trim());
   }
   else if (name == DESCTLH_KW)
   {
      property = new ossimStringProperty(name, ossimString(theIdentSecurityChunk.theDataExtControlAndHand).trim());
   }
   else if (name == DESREL_KW)
   {
      property = new ossimStringProperty(name, ossimString(theIdentSecurityChunk.theDataExtReleasingInst).trim());
   }
   else if (name == DESDCTP_KW)
   {
      property = new ossimStringProperty(name, ossimString(theIdentSecurityChunk.theDataExtDeclassType).trim());
   }
   else if (name == DESDCDT_KW)
   {
      property = new ossimStringProperty(name, ossimString(theIdentSecurityChunk.theDataExtDeclassDate).trim());
   }
   else if (name == DESDCXM_KW)
   {
      property = new ossimStringProperty(name, ossimString(theIdentSecurityChunk.theDataExtDeclassExempt).trim());
   }
   else if (name == DESDG_KW)
   {
      property = new ossimStringProperty(name, ossimString(theIdentSecurityChunk.theDataExtSecurityDowngrade).trim());
   }
   else if (name == DESDGDT_KW)
   {
      property = new ossimStringProperty(name, ossimString(theIdentSecurityChunk.theDataExtSecurityDowngradeDate).trim());
   }
   else if (name == DESCLTX_KW)
   {
      property = new ossimStringProperty(name, ossimString(theIdentSecurityChunk.theDataExtSecurityClassText).trim());
   }
   else if (name == DESCATP_KW)
   {
      property = new ossimStringProperty(name, ossimString(theIdentSecurityChunk.theDataExtClassAuthType).trim());
   }
   else if (name == DESCAUT_KW)
   {
      property = new ossimStringProperty(name, ossimString(theIdentSecurityChunk.theDataExtClassAuthority).trim());
   }
   else if (name == DESCRSN_KW)
   {
      property = new ossimStringProperty(name, ossimString(theIdentSecurityChunk.theDataExtClassReason).trim());
   }
   else if (name == DESSRDT_KW)
   {
      property = new ossimStringProperty(name, ossimString(theIdentSecurityChunk.theDataExtSecuritySourceDate).trim());
   }
   else if (name == DESCTLN_KW)
   {
      property = new ossimStringProperty(name, ossimString(theIdentSecurityChunk.theDataExtSecurityConNum).trim());
   }
   else if (name == DESOFLW_KW)
   {
      property = new ossimStringProperty(name, ossimString(theOverflowedHeaderType).trim());
   }
   else if (name == DESITEM_KW)
   {
      property = new ossimStringProperty(name, ossimString(theDataItemOverflowed).trim());
   }
   else if (name == DESSHL_KW)
   {
      property = new ossimStringProperty(name, ossimString(theLengthOfUserDefinedSubheaderFields).trim());
   }
   else if (name == DESSHF_KW)
   {
      property = new ossimBinaryDataProperty(name, theUserDefinedSubheaderFields);
   }
   else if (name == DESDATA_KW)
   {
      // Only valid if setTagList has not been called on this object.
      property = new ossimBinaryDataProperty(name, theData);
   }

   return property;
}

getPropertyNames()

void ossimNitfDataExtensionSegmentV2_1::getPropertyNames ( std::vector< ossimString > &  propertyNames ) const

virtual

Reimplemented from ossimNitfDataExtensionSegment.

Definition at line 540 of file ossimNitfDataExtensionSegmentV2_1.cpp.

References DESCATP_KW, DESCLSY_KW, DESCLTX_KW, DESCRSN_KW, DESDCDT_KW, DESDCTP_KW, DESDCXM_KW, DESDG_KW, DESDGDT_KW, DESID_KW, DESSRDT_KW, and ossimNitfDataExtensionSegment::getPropertyNames().

{
   ossimNitfDataExtensionSegment::getPropertyNames(propertyNames);
   propertyNames.push_back(DESID_KW);
   propertyNames.push_back(DESCLSY_KW);
   propertyNames.push_back(DESDCTP_KW);
   propertyNames.push_back(DESDCDT_KW);
   propertyNames.push_back(DESDCXM_KW);
   propertyNames.push_back(DESDG_KW);
   propertyNames.push_back(DESDGDT_KW);
   propertyNames.push_back(DESCLTX_KW);
   propertyNames.push_back(DESCATP_KW);
   propertyNames.push_back(DESCRSN_KW);
   propertyNames.push_back(DESSRDT_KW);
}

getTagList()

virtual const std::vector<ossimNitfTagInformation>& ossimNitfDataExtensionSegmentV2_1::getTagList ( ) const

inlinevirtual

Implements ossimNitfDataExtensionSegment.

Definition at line 52 of file ossimNitfDataExtensionSegmentV2_1.h.

      {
         return theTagList;
      }

parseStream()

void ossimNitfDataExtensionSegmentV2_1::parseStream ( std::istream &  in, ossim_uint64  dataLength  )

virtual

Implements ossimNitfDataExtensionSegment.

Definition at line 76 of file ossimNitfDataExtensionSegmentV2_1.cpp.

References ossimNitfTagInformation::clearFields(), clearFields(), ossimNitfTagInformation::parseStream(), ossimIFStream64::seekg64(), theData, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassAuthority, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassAuthType, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassReason, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassSystem, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtCodewords, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtControlAndHand, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtDeclassDate, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtDeclassExempt, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtDeclassType, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtReleasingInst, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityClass, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityClassText, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityConNum, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityDowngrade, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityDowngradeDate, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecuritySourceDate, theDataItemOverflowed, ossimNitfDataExtIdentSecurityChunkV2_1::theFilePartType, theIdentSecurityChunk, theLengthOfUserDefinedSubheaderFields, theOverflowedHeaderType, theTagList, ossimNitfDataExtIdentSecurityChunkV2_1::theUniqueDataExtTypeId, theUserDefinedSubheaderFields, ossimNitfDataExtIdentSecurityChunkV2_1::theVersionDataFieldDef, ossimString::toLong(), ossimString::trim(), and ossimString::upcase().

{
   if(in)
   {
      clearFields();

      in.read(theIdentSecurityChunk.theFilePartType, 2); // 2 byte alpha
      in.read(theIdentSecurityChunk.theUniqueDataExtTypeId, 25); // 25 byte alpha numeric
      in.read(theIdentSecurityChunk.theVersionDataFieldDef, 2); // 2 byte numeric
      in.read(theIdentSecurityChunk.theDataExtSecurityClass, 1); // 1 byte alpha
      in.read(theIdentSecurityChunk.theDataExtClassSystem, 2);
      in.read(theIdentSecurityChunk.theDataExtCodewords, 11);    // 11 byte alpha numeric
      in.read(theIdentSecurityChunk.theDataExtControlAndHand, 2); // 2 byte alpha numeric
      in.read(theIdentSecurityChunk.theDataExtReleasingInst, 20); // 20 byte alpha numeric
      in.read(theIdentSecurityChunk.theDataExtDeclassType, 2); // 2 byte alph num
      in.read(theIdentSecurityChunk.theDataExtDeclassDate, 8); // 8 byte alph num
      in.read(theIdentSecurityChunk.theDataExtDeclassExempt, 4); // 4 byte alpha num
      in.read(theIdentSecurityChunk.theDataExtSecurityDowngrade, 1); // 1 byte alpha num
      in.read(theIdentSecurityChunk.theDataExtSecurityDowngradeDate, 8); // 8 byte alpha num
      in.read(theIdentSecurityChunk.theDataExtSecurityClassText, 43); // 43 byte alpha num
      in.read(theIdentSecurityChunk.theDataExtClassAuthType, 1); // 1 byte alpha num
      in.read(theIdentSecurityChunk.theDataExtClassAuthority, 40); // 40 byte alpha num
      in.read(theIdentSecurityChunk.theDataExtClassReason, 1); // 1 byte alpha num
      in.read(theIdentSecurityChunk.theDataExtSecuritySourceDate, 8); // 8 byte alpha num
      in.read(theIdentSecurityChunk.theDataExtSecurityConNum, 15); // 15 byte alpha num

      bool overflow = ossimString(theIdentSecurityChunk.theUniqueDataExtTypeId).trim().upcase() == "TRE_OVERFLOW";
      if (overflow)
      {
         in.read(theOverflowedHeaderType, 6);
         in.read(theDataItemOverflowed, 3);
      }

      in.read(theLengthOfUserDefinedSubheaderFields, 4);

      // look to see if there is any data and if so read the tag
      // to see what it is
      long length = ossimString(theLengthOfUserDefinedSubheaderFields).toLong();
      if (length > 0)
      {
         theUserDefinedSubheaderFields.resize(length);
         in.read(reinterpret_cast<char*>(&theUserDefinedSubheaderFields.front()), theUserDefinedSubheaderFields.size());
      }

      if (dataLength != 0)
      {
         if (overflow)
         {
            std::streamoff dataBegin = in.tellg();
            std::streamoff dataEnd   = dataBegin + static_cast<std::streamoff>(dataLength);

            // dataBegin + static_cast<istream::pos_type>(dataLength))
            while (in.good() && (in.tellg() < dataEnd) )
            {
               ossimNitfTagInformation tag;
               tag.clearFields();
               tag.parseStream(in);
               theTagList.push_back(tag);
            }

            ossimIFStream64::seekg64(in, dataBegin, ios::beg);
            in.clear();
         }

         theData.resize(dataLength);
         in.read(reinterpret_cast<char*>(&theData.front()), theData.size());
      }
   }
}

print()

std::ostream & ossimNitfDataExtensionSegmentV2_1::print ( std::ostream &  out ) const

virtual

Generic print method.

Derived classes should re-implement as they see fit.

Returns

std::ostream&

Reimplemented from ossimObject.

Definition at line 278 of file ossimNitfDataExtensionSegmentV2_1.cpp.

References theDataItemOverflowed, theIdentSecurityChunk, theLengthOfUserDefinedSubheaderFields, theOverflowedHeaderType, and theTagList.

{
   out << "theIdentSecurityChunk:                   "
       << theIdentSecurityChunk
       << "\ntheOverflowedHeaderType:               "
       << theOverflowedHeaderType
       << "\ntheDataItemOverflowed:                 "
       << theDataItemOverflowed
       << "\ntheLengthOfUserDefinedSubheaderFields: "
       << theLengthOfUserDefinedSubheaderFields
       << "\ntag count:                             "
       << theTagList.size() << std::endl;
   return out;
}

setProperty()

void ossimNitfDataExtensionSegmentV2_1::setProperty ( ossimRefPtr< ossimProperty >  property )

virtual

Reimplemented from ossimPropertyInterface.

Definition at line 322 of file ossimNitfDataExtensionSegmentV2_1.cpp.

References ossimNitfDataExtensionSegment::DE_KW, ossimNitfDataExtensionSegment::DECLAS_KW, DESCATP_KW, ossimNitfDataExtensionSegment::DESCAUT_KW, DESCLSY_KW, DESCLTX_KW, ossimNitfDataExtensionSegment::DESCODE_KW, DESCRSN_KW, ossimNitfDataExtensionSegment::DESCTLH_KW, ossimNitfDataExtensionSegment::DESCTLN_KW, ossimNitfDataExtensionSegment::DESDATA_KW, DESDCDT_KW, DESDCTP_KW, DESDCXM_KW, DESDG_KW, DESDGDT_KW, DESID_KW, ossimNitfDataExtensionSegment::DESITEM_KW, ossimNitfDataExtensionSegment::DESOFLW_KW, ossimNitfDataExtensionSegment::DESREL_KW, ossimNitfDataExtensionSegment::DESSHF_KW, ossimNitfDataExtensionSegment::DESSHL_KW, DESSRDT_KW, ossimNitfDataExtensionSegment::DESVER_KW, ossimRefPtr< T >::get(), ossimBinaryDataProperty::getBinaryData(), PTR_CAST, ossimNitfCommon::setField(), theData, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassAuthority, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassAuthType, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassReason, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassSystem, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtCodewords, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtControlAndHand, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtDeclassDate, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtDeclassExempt, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtDeclassType, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtReleasingInst, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityClass, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityClassText, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityConNum, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityDowngrade, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityDowngradeDate, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecuritySourceDate, theDataItemOverflowed, ossimNitfDataExtIdentSecurityChunkV2_1::theFilePartType, theIdentSecurityChunk, theLengthOfUserDefinedSubheaderFields, theOverflowedHeaderType, ossimNitfDataExtIdentSecurityChunkV2_1::theUniqueDataExtTypeId, theUserDefinedSubheaderFields, ossimNitfDataExtIdentSecurityChunkV2_1::theVersionDataFieldDef, and ossimProperty::valueToString().

Referenced by ossimNitfWriter::takeOverflowTags().

{
   if (property.get() == NULL)
   {
      return;
   }

   const ossimString& name = property->getName();
   if (name == DE_KW)
   {
      ossimNitfCommon::setField(theIdentSecurityChunk.theFilePartType, property->valueToString(), 2);
   }
   else if (name == DESID_KW)
   {
      ossimNitfCommon::setField(theIdentSecurityChunk.theUniqueDataExtTypeId, property->valueToString(), 25);
   }
   else if (name == DESVER_KW)
   {
      ossimNitfCommon::setField(theIdentSecurityChunk.theVersionDataFieldDef, property->valueToString(), 2, ios::right, '0');
   }
   else if (name == DECLAS_KW)
   {
      ossimNitfCommon::setField(theIdentSecurityChunk.theDataExtSecurityClass, property->valueToString(), 1);
   }
   else if (name == DESCLSY_KW)
   {
      ossimNitfCommon::setField(theIdentSecurityChunk.theDataExtClassSystem, property->valueToString(), 2);
   }
   else if (name == DESCODE_KW)
   {
      ossimNitfCommon::setField(theIdentSecurityChunk.theDataExtCodewords, property->valueToString(), 11);
   }
   else if (name == DESCTLH_KW)
   {
      ossimNitfCommon::setField(theIdentSecurityChunk.theDataExtControlAndHand, property->valueToString(), 2);
   }
   else if (name == DESREL_KW)
   {
      ossimNitfCommon::setField(theIdentSecurityChunk.theDataExtReleasingInst, property->valueToString(), 20);
   }
   else if (name == DESDCTP_KW)
   {
      ossimNitfCommon::setField(theIdentSecurityChunk.theDataExtDeclassType, property->valueToString(), 2);
   }
   else if (name == DESDCDT_KW)
   {
      ossimNitfCommon::setField(theIdentSecurityChunk.theDataExtDeclassDate, property->valueToString(), 8);
   }
   else if (name == DESDCXM_KW)
   {
      ossimNitfCommon::setField(theIdentSecurityChunk.theDataExtDeclassExempt, property->valueToString(), 4);
   }
   else if (name == DESDG_KW)
   {
      ossimNitfCommon::setField(theIdentSecurityChunk.theDataExtSecurityDowngrade, property->valueToString(), 1);
   }
   else if (name == DESDGDT_KW)
   {
      ossimNitfCommon::setField(theIdentSecurityChunk.theDataExtSecurityDowngradeDate, property->valueToString(), 8);
   }
   else if (name == DESCLTX_KW)
   {
      ossimNitfCommon::setField(theIdentSecurityChunk.theDataExtSecurityClassText, property->valueToString(), 43);
   }
   else if (name == DESCATP_KW)
   {
      ossimNitfCommon::setField(theIdentSecurityChunk.theDataExtClassAuthType, property->valueToString(), 1);
   }
   else if (name == DESCAUT_KW)
   {
      ossimNitfCommon::setField(theIdentSecurityChunk.theDataExtClassAuthority, property->valueToString(), 40);
   }
   else if (name == DESCRSN_KW)
   {
      ossimNitfCommon::setField(theIdentSecurityChunk.theDataExtClassReason, property->valueToString(), 1);
   }
   else if (name == DESSRDT_KW)
   {
      ossimNitfCommon::setField(theIdentSecurityChunk.theDataExtSecuritySourceDate, property->valueToString(), 8);
   }
   else if (name == DESCTLN_KW)
   {
      ossimNitfCommon::setField(theIdentSecurityChunk.theDataExtSecurityConNum, property->valueToString(), 15);
   }
   else if (name == DESOFLW_KW)
   {
      ossimNitfCommon::setField(theOverflowedHeaderType, property->valueToString(), 6);
   }
   else if (name == DESITEM_KW)
   {
      ossimNitfCommon::setField(theDataItemOverflowed, property->valueToString(), 3, ios::right, '0');
   }
   else if (name == DESSHL_KW)
   {
      ossimNitfCommon::setField(theLengthOfUserDefinedSubheaderFields, property->valueToString(), 4, ios::right, '0');
   }
   else if (name == DESSHF_KW)
   {
      ossimBinaryDataProperty* pBinaryData = PTR_CAST(ossimBinaryDataProperty, property.get());
      if (pBinaryData != NULL)
      {
         theUserDefinedSubheaderFields = pBinaryData->getBinaryData();
      }
   }
   else if (name == DESDATA_KW)
   {
      ossimBinaryDataProperty* pBinaryData = PTR_CAST(ossimBinaryDataProperty, property.get());
      if (pBinaryData != NULL)
      {
         theData = pBinaryData->getBinaryData();
      }
   }
}

setSecurityMarkings()

void ossimNitfDataExtensionSegmentV2_1::setSecurityMarkings ( const ossimNitfFileHeaderV2_1 &  fileHeader )

virtual

Definition at line 258 of file ossimNitfDataExtensionSegmentV2_1.cpp.

References ossimString::c_str(), ossimNitfFileHeaderV2_1::getClassificationAuthority(), ossimNitfFileHeaderV2_1::getClassificationAuthorityType(), ossimNitfFileHeaderV2_1::getClassificationReason(), ossimNitfFileHeaderV2_1::getClassificationText(), ossimNitfFileHeaderV2_1::getCodeWords(), ossimNitfFileHeaderV2_1::getControlAndHandling(), ossimNitfFileHeaderV2_1::getDeclassificationDate(), ossimNitfFileHeaderV2_1::getDeclassificationExemption(), ossimNitfFileHeaderV2_1::getDeclassificationType(), ossimNitfFileHeaderV2_1::getDowngrade(), ossimNitfFileHeaderV2_1::getDowngradingDate(), ossimNitfFileHeaderV2_1::getReleasingInstructions(), ossimNitfFileHeaderV2_X::getSecurityClassification(), ossimNitfFileHeaderV2_1::getSecurityClassificationSys(), ossimNitfFileHeaderV2_1::getSecurityControlNumber(), ossimNitfFileHeaderV2_1::getSecuritySourceDate(), ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassAuthority, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassAuthType, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassReason, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassSystem, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtCodewords, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtControlAndHand, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtDeclassDate, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtDeclassExempt, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtDeclassType, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtReleasingInst, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityClass, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityClassText, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityConNum, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityDowngrade, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityDowngradeDate, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecuritySourceDate, and theIdentSecurityChunk.

{
   strcpy(theIdentSecurityChunk.theDataExtSecurityClass, fileHeader.getSecurityClassification().c_str());
   strcpy(theIdentSecurityChunk.theDataExtClassSystem, fileHeader.getSecurityClassificationSys().c_str());
   strcpy(theIdentSecurityChunk.theDataExtCodewords, fileHeader.getCodeWords().c_str());
   strcpy(theIdentSecurityChunk.theDataExtControlAndHand, fileHeader.getControlAndHandling().c_str());
   strcpy(theIdentSecurityChunk.theDataExtReleasingInst, fileHeader.getReleasingInstructions().c_str());
   strcpy(theIdentSecurityChunk.theDataExtDeclassType, fileHeader.getDeclassificationType().c_str());
   strcpy(theIdentSecurityChunk.theDataExtDeclassDate, fileHeader.getDeclassificationDate().c_str());
   strcpy(theIdentSecurityChunk.theDataExtDeclassExempt, fileHeader.getDeclassificationExemption().c_str());
   strcpy(theIdentSecurityChunk.theDataExtSecurityDowngrade, fileHeader.getDowngrade().c_str());
   strcpy(theIdentSecurityChunk.theDataExtSecurityDowngradeDate, fileHeader.getDowngradingDate().c_str());
   strcpy(theIdentSecurityChunk.theDataExtSecurityClassText, fileHeader.getClassificationText().c_str());
   strcpy(theIdentSecurityChunk.theDataExtClassAuthType, fileHeader.getClassificationAuthorityType().c_str());
   strcpy(theIdentSecurityChunk.theDataExtClassAuthority, fileHeader.getClassificationAuthority().c_str());
   strcpy(theIdentSecurityChunk.theDataExtClassReason, fileHeader.getClassificationReason().c_str());
   strcpy(theIdentSecurityChunk.theDataExtSecuritySourceDate, fileHeader.getSecuritySourceDate().c_str());
   strcpy(theIdentSecurityChunk.theDataExtSecurityConNum, fileHeader.getSecurityControlNumber().c_str());
}

setTagList()

void ossimNitfDataExtensionSegmentV2_1::setTagList ( const std::vector< ossimNitfTagInformation > &  tagList )

virtual

Definition at line 252 of file ossimNitfDataExtensionSegmentV2_1.cpp.

References theData, and theTagList.

Referenced by ossimNitfWriter::takeOverflowTags().

{
   theTagList = tagList;
   theData.clear();
}

writeStream()

void ossimNitfDataExtensionSegmentV2_1::writeStream ( std::ostream &  out )

virtual

Definition at line 146 of file ossimNitfDataExtensionSegmentV2_1.cpp.

References theData, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassAuthority, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassAuthType, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassReason, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtClassSystem, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtCodewords, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtControlAndHand, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtDeclassDate, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtDeclassExempt, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtDeclassType, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtReleasingInst, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityClass, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityClassText, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityConNum, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityDowngrade, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecurityDowngradeDate, ossimNitfDataExtIdentSecurityChunkV2_1::theDataExtSecuritySourceDate, theDataItemOverflowed, ossimNitfDataExtIdentSecurityChunkV2_1::theFilePartType, theIdentSecurityChunk, theLengthOfUserDefinedSubheaderFields, theOverflowedHeaderType, theTagList, ossimNitfDataExtIdentSecurityChunkV2_1::theUniqueDataExtTypeId, theUserDefinedSubheaderFields, ossimNitfDataExtIdentSecurityChunkV2_1::theVersionDataFieldDef, ossimString::trim(), and ossimString::upcase().

{
   if (out)
   {
      out.write(theIdentSecurityChunk.theFilePartType, 2);
      out.write(theIdentSecurityChunk.theUniqueDataExtTypeId, 25);
      out.write(theIdentSecurityChunk.theVersionDataFieldDef, 2);
      out.write(theIdentSecurityChunk.theDataExtSecurityClass, 1);
      out.write(theIdentSecurityChunk.theDataExtClassSystem, 2);
      out.write(theIdentSecurityChunk.theDataExtCodewords, 11);
      out.write(theIdentSecurityChunk.theDataExtControlAndHand, 2);
      out.write(theIdentSecurityChunk.theDataExtReleasingInst, 20);
      out.write(theIdentSecurityChunk.theDataExtDeclassType, 2);
      out.write(theIdentSecurityChunk.theDataExtDeclassDate, 8);
      out.write(theIdentSecurityChunk.theDataExtDeclassExempt, 4);
      out.write(theIdentSecurityChunk.theDataExtSecurityDowngrade, 1);
      out.write(theIdentSecurityChunk.theDataExtSecurityDowngradeDate, 8);
      out.write(theIdentSecurityChunk.theDataExtSecurityClassText, 43);
      out.write(theIdentSecurityChunk.theDataExtClassAuthType, 1);
      out.write(theIdentSecurityChunk.theDataExtClassAuthority, 40);
      out.write(theIdentSecurityChunk.theDataExtClassReason, 1);
      out.write(theIdentSecurityChunk.theDataExtSecuritySourceDate, 8);
      out.write(theIdentSecurityChunk.theDataExtSecurityConNum, 15);

      bool overflow = ossimString(theIdentSecurityChunk.theUniqueDataExtTypeId).trim().upcase() == "TRE_OVERFLOW";
      if (overflow)
      {
         out.write(theOverflowedHeaderType, 6);
         out.write(theDataItemOverflowed, 3);
      }

      out.write(theLengthOfUserDefinedSubheaderFields, 4);
      for (unsigned int i = 0; i < theUserDefinedSubheaderFields.size(); i++)
      {
         out.write(reinterpret_cast<char*>(&theUserDefinedSubheaderFields.front()), theUserDefinedSubheaderFields.size());
      }

      if (overflow && theTagList.empty() == false)
      {
         for (std::vector<ossimNitfTagInformation>::iterator iter = theTagList.begin();
            iter != theTagList.end(); ++iter)
         {
            iter->writeStream(out);
         }
      }
      else
      {
         out.write(reinterpret_cast<char*>(&theData.front()), theData.size());
      }
   }
}

Member Data Documentation

DESCATP_KW

const ossimString ossimNitfDataExtensionSegmentV2_1::DESCATP_KW = "descatp"

static

Definition at line 76 of file ossimNitfDataExtensionSegmentV2_1.h.

Referenced by getProperty(), getPropertyNames(), and setProperty().

DESCLSY_KW

const ossimString ossimNitfDataExtensionSegmentV2_1::DESCLSY_KW = "desclsy"

static

Definition at line 69 of file ossimNitfDataExtensionSegmentV2_1.h.

Referenced by getProperty(), getPropertyNames(), and setProperty().

DESCLTX_KW

const ossimString ossimNitfDataExtensionSegmentV2_1::DESCLTX_KW = "descltx"

static

Definition at line 75 of file ossimNitfDataExtensionSegmentV2_1.h.

Referenced by getProperty(), getPropertyNames(), and setProperty().

DESCRSN_KW

const ossimString ossimNitfDataExtensionSegmentV2_1::DESCRSN_KW = "descrsn"

static

Definition at line 77 of file ossimNitfDataExtensionSegmentV2_1.h.

Referenced by getProperty(), getPropertyNames(), and setProperty().

DESDCDT_KW

const ossimString ossimNitfDataExtensionSegmentV2_1::DESDCDT_KW = "desdcdt"

static

Definition at line 71 of file ossimNitfDataExtensionSegmentV2_1.h.

Referenced by getProperty(), getPropertyNames(), and setProperty().

DESDCTP_KW

const ossimString ossimNitfDataExtensionSegmentV2_1::DESDCTP_KW = "desdctp"

static

Definition at line 70 of file ossimNitfDataExtensionSegmentV2_1.h.

Referenced by getProperty(), getPropertyNames(), and setProperty().

DESDCXM_KW

const ossimString ossimNitfDataExtensionSegmentV2_1::DESDCXM_KW = "desdcxm"

static

Definition at line 72 of file ossimNitfDataExtensionSegmentV2_1.h.

Referenced by getProperty(), getPropertyNames(), and setProperty().

DESDG_KW

const ossimString ossimNitfDataExtensionSegmentV2_1::DESDG_KW = "desdg"

static

Definition at line 73 of file ossimNitfDataExtensionSegmentV2_1.h.

Referenced by getProperty(), getPropertyNames(), and setProperty().

DESDGDT_KW

const ossimString ossimNitfDataExtensionSegmentV2_1::DESDGDT_KW = "desdgdt"

static

Definition at line 74 of file ossimNitfDataExtensionSegmentV2_1.h.

Referenced by getProperty(), getPropertyNames(), and setProperty().

DESID_KW

const ossimString ossimNitfDataExtensionSegmentV2_1::DESID_KW = "desid"

static

Definition at line 68 of file ossimNitfDataExtensionSegmentV2_1.h.

Referenced by ossimNitfWriter::addDataExtensionSegment(), getProperty(), getPropertyNames(), setProperty(), and ossimNitfWriter::takeOverflowTags().

DESSRDT_KW

const ossimString ossimNitfDataExtensionSegmentV2_1::DESSRDT_KW = "dessrdt"

static

Definition at line 78 of file ossimNitfDataExtensionSegmentV2_1.h.

Referenced by getProperty(), getPropertyNames(), and setProperty().

theData

std::vector<unsigned char> ossimNitfDataExtensionSegmentV2_1::theData

private

This is an n-byte field, where n is found in the file header.

Definition at line 108 of file ossimNitfDataExtensionSegmentV2_1.h.

Referenced by clearFields(), getDataLength(), getProperty(), parseStream(), setProperty(), setTagList(), and writeStream().

theDataItemOverflowed

char ossimNitfDataExtensionSegmentV2_1::theDataItemOverflowed[4]

private

This is a 3 byte field

Definition at line 93 of file ossimNitfDataExtensionSegmentV2_1.h.

Referenced by clearFields(), getProperty(), parseStream(), print(), setProperty(), and writeStream().

theIdentSecurityChunk

ossimNitfDataExtIdentSecurityChunkV2_1 ossimNitfDataExtensionSegmentV2_1::theIdentSecurityChunk

private

Definition at line 83 of file ossimNitfDataExtensionSegmentV2_1.h.

Referenced by clearFields(), getHeaderLength(), getProperty(), parseStream(), print(), setProperty(), setSecurityMarkings(), and writeStream().

theLengthOfUserDefinedSubheaderFields

char ossimNitfDataExtensionSegmentV2_1::theLengthOfUserDefinedSubheaderFields[5]

private

This is a 4 byte field.

Definition at line 98 of file ossimNitfDataExtensionSegmentV2_1.h.

Referenced by clearFields(), getProperty(), parseStream(), print(), setProperty(), and writeStream().

theOverflowedHeaderType

char ossimNitfDataExtensionSegmentV2_1::theOverflowedHeaderType[7]

private

This is a 6 byte field

Definition at line 88 of file ossimNitfDataExtensionSegmentV2_1.h.

Referenced by clearFields(), getProperty(), parseStream(), print(), setProperty(), and writeStream().

theTagList

std::vector<ossimNitfTagInformation> ossimNitfDataExtensionSegmentV2_1::theTagList

private

Definition at line 110 of file ossimNitfDataExtensionSegmentV2_1.h.

Referenced by clearFields(), getDataLength(), parseStream(), print(), setTagList(), and writeStream().

theUserDefinedSubheaderFields

std::vector<unsigned char> ossimNitfDataExtensionSegmentV2_1::theUserDefinedSubheaderFields

private

This is an n-byte field, where n is theLengthOfUserDefinedSubheaderFields.

Definition at line 103 of file ossimNitfDataExtensionSegmentV2_1.h.

Referenced by clearFields(), getHeaderLength(), getProperty(), parseStream(), setProperty(), and writeStream().

---

The documentation for this class was generated from the following files:

• ossimNitfDataExtensionSegmentV2_1.h
• ossimNitfDataExtensionSegmentV2_1.cpp
