#include <ossimNitfFileHeaderV2_X.h>

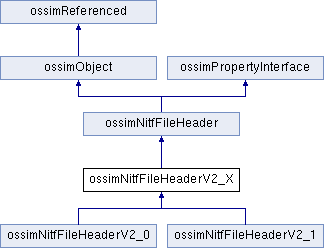

Inheritance diagram for ossimNitfFileHeaderV2_X:

Public Member Functions
	ossimNitfFileHeaderV2_X ()

virtual void	setCodeWords (const ossimString &codeWords)=0

virtual void	setControlAndHandling (const ossimString &controlAndHandling)=0

virtual void	setReleasingInstructions (const ossimString &releasingInstructions)=0

virtual void	setClassificationAuthority (const ossimString &classAuth)=0

virtual void	setSecurityControlNumber (const ossimString &controlNo)=0

virtual void	setOriginatorsName (const ossimString &originatorName)=0

virtual void	setOriginatorsPhone (const ossimString &origniatorPhone)=0

virtual ossimString	getCodeWords () const =0

virtual ossimString	getControlAndHandling () const =0

virtual ossimString	getReleasingInstructions () const =0

virtual ossimString	getClassificationAuthority () const =0

virtual ossimString	getSecurityControlNumber () const =0

virtual ossimString	getOriginatorsName () const =0

virtual ossimString	getOriginatorsPhone () const =0

virtual ossimString	getSecurityClassification () const

void	setComplexityLevel (const ossimString &level)

void	setSystemType (const ossimString &systemType)

void	setOriginatingStationId (const ossimString &originationId)

void	setDate (const ossimLocalTm &d)
	Sets field FDT. More...

void	setDate (const ossimString &d)
	Sets field FDT. More...

virtual void	setDate ()
	Sets field FDT to current time converted to GMT(ZULU). More...

void	setTitle (const ossimString &title)

void	setFileSecurityClassification (const ossimString &securityClassification)

void	setCopyNumber (const ossimString &copyNumber)

void	setNumberOfCopies (const ossimString &numberOfCopies)

void	setEncryption (const ossimString &encryption)

ossimString	getComplexityLevel () const

ossimString	getSystemType () const

ossimString	getOriginatingStationId () const

ossimString	getDate () const

ossimString	getTitle () const

ossimString	getCopyNumber () const

ossimString	getNumberOfCopies () const

ossimString	getEncryption () const

virtual bool	isValid () const
	isValid will test if the fields are valid and will return true or false. More...

virtual void	setProperty (ossimRefPtr< ossimProperty > property)

virtual ossimRefPtr< ossimProperty >	getProperty (const ossimString &name) const

virtual void	getPropertyNames (std::vector< ossimString > &propertyNames) const

bool	saveState (ossimKeywordlist &kwl, const ossimString &prefix="") const

virtual bool	loadState (const ossimKeywordlist &kwl, const char *prefix=0)
	Method to set fields from a keyword list. More...

Public Member Functions inherited from ossimNitfFileHeader
	ossimNitfFileHeader ()

virtual	~ossimNitfFileHeader ()

virtual void	parseStream (ossim::istream &in)=0

virtual void	writeStream (ossim::ostream &out)=0

virtual bool	isEncrypted () const =0

virtual ossim_int32	getNumberOfImages () const =0

virtual ossim_int32	getNumberOfLabels () const =0

virtual ossim_int32	getNumberOfSymbols () const =0

virtual ossim_int32	getNumberOfGraphics () const =0

virtual ossim_int32	getNumberOfTextSegments () const =0

virtual ossim_int32	getNumberOfDataExtSegments () const =0

virtual ossim_int32	getNumberOfReservedExtSegments () const =0

virtual ossim_int32	getHeaderSize () const =0

void	addTag (const ossimNitfTagInformation &tag, bool unique=true)

virtual void	removeTag (const ossimString &tagName)

virtual bool	getTagInformation (ossimNitfTagInformation &tag, int idx) const

virtual std::vector< ossimNitfTagInformation >	getAllTags ()

virtual void	setAllTags (std::vector< ossimNitfTagInformation > tagList)

virtual int	getNumberOfTags () const

virtual bool	getTag (ossimNitfTagInformation &tagInfo, const ossimString &tagName) const

virtual ossim_int64	getFileSize () const =0

virtual const char *	getVersion () const =0

virtual const char *	getDateTime () const =0

virtual ossimDrect	getImageRect () const =0

bool	hasImages () const

bool	hasSymbols () const

bool	hasGraphics () const

bool	hasText () const

bool	hasLabels () const

bool	hasDataExtSegments () const

virtual ossimNitfImageHeader *	getNewImageHeader (ossim_uint32 imageNumber, ossim::istream &in) const =0

virtual ossimNitfSymbolHeader *	getNewSymbolHeader (ossim_uint32 symbolNumber, ossim::istream &in) const =0

virtual ossimNitfLabelHeader *	getNewLabelHeader (ossim_uint32 labelNumber, ossim::istream &in) const =0

virtual ossimNitfTextHeader *	getNewTextHeader (ossim_uint32 textNumber, ossim::istream &in) const =0

virtual ossimNitfDataExtensionSegment *	getNewDataExtensionSegment (ossim_int32 dataExtNumber, ossim::istream &in) const =0

virtual ossimNitfImageHeader *	allocateImageHeader () const =0

virtual ossimNitfSymbolHeader *	allocateSymbolHeader () const =0

virtual ossimNitfLabelHeader *	allocateLabelHeader () const =0

virtual ossimNitfTextHeader *	allocateTextHeader () const =0

virtual ossimNitfDataExtensionSegment *	allocateDataExtSegment () const =0

virtual ossim_uint32	getTotalTagLength () const

virtual void	setFileLength (ossim_uint64 fileLength)=0
	Sets file length (FL) field. More...

virtual void	setHeaderLength (ossim_uint64 headerLength)=0
	Sets header length (HL) field. More...

virtual std::ostream &	print (std::ostream &out, const std::string &prefix=std::string()) const
	Print method that outputs a key/value type format adding prefix to keys. More...

virtual std::ostream &	printTags (std::ostream &out, const std::string &prefix=std::string()) const
	print tags method that outputs a key/value type format adding prefix to keys. More...

Public Member Functions inherited from ossimObject
	ossimObject ()

virtual	~ossimObject ()

virtual ossimObject *	dup () const

virtual ossimString	getShortName () const

virtual ossimString	getLongName () const

virtual ossimString	getDescription () const

virtual ossimString	getClassName () const

virtual RTTItypeid	getType () const

virtual bool	canCastTo (ossimObject *obj) const

virtual bool	canCastTo (const RTTItypeid &id) const

virtual bool	canCastTo (const ossimString &parentClassName) const

virtual bool	saveState (ossimKeywordlist &kwl, const char *prefix=0) const

virtual std::ostream &	print (std::ostream &out) const
	Generic print method. More...

virtual bool	isEqualTo (const ossimObject &obj, ossimCompareType compareType=OSSIM_COMPARE_FULL) const

virtual void	accept (ossimVisitor &visitor)

Public Member Functions inherited from ossimReferenced
	ossimReferenced ()

	ossimReferenced (const ossimReferenced &)

ossimReferenced &	operator= (const ossimReferenced &)

void	ref () const
	increment the reference count by one, indicating that this object has another pointer which is referencing it. More...

void	unref () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...

void	unref_nodelete () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...

int	referenceCount () const

Public Member Functions inherited from ossimPropertyInterface
	ossimPropertyInterface ()

virtual	~ossimPropertyInterface ()

virtual void	setProperty (const ossimString &name, const ossimString &value)

virtual ossimString	getPropertyValueAsString (const ossimString &name) const

void	getPropertyList (std::vector< ossimRefPtr< ossimProperty > > &propertyList) const

void	setProperties (std::vector< ossimRefPtr< ossimProperty > > &propertyList)

Static Public Member Functions
static ossimString	formatDate (const ossimString &version, const ossimLocalTm &d)

Static Public Attributes
static const ossimString	FILE_TYPE_KW = "FILE_TYPE"
	Properties of a NITF 2.x Header file. More...

static const ossimString	FHDR_KW = "FHDR"

static const ossimString	VERSION_KW = "VERSION"

static const ossimString	CLEVEL_KW = "CLEVEL"

static const ossimString	STYPE_KW = "STYPE"

static const ossimString	OSTAID_KW = "OSTAID"

static const ossimString	FDT_KW = "FDT"

static const ossimString	FTITLE_KW = "FTITLE"

static const ossimString	FSCLAS_KW = "FSCLAS"

static const ossimString	FSCODE_KW = "FSCODE"

static const ossimString	FSCTLH_KW = "FSCTLH"

static const ossimString	FSREL_KW = "FSREL"

static const ossimString	FSCAUT_KW = "FSCAUT"

static const ossimString	FSCTLN_KW = "FSCTLN"

static const ossimString	FSCOP_KW = "FSCOP"

static const ossimString	FSCPYS_KW = "FSCPYS"

static const ossimString	ENCRYP_KW = "ENCRYP"

static const ossimString	ONAME_KW = "ONAME"

static const ossimString	OPHONE_KW = "OPHONE"

Protected Attributes
char	theFileTypeVersion [10]
	Field: FHDR Required field for NITF and is a 9 byte value. More...

char	theComplexityLevel [3]
	Field: CLEVEL. More...

char	theSystemType [5]
	Field: STYPE. More...

char	theOriginatingStationId [11]
	Field: OSTAID. More...

char	theDateTime [15]
	Field: FDT. More...

char	theFileTitle [81]
	Field: FTITLE. More...

char	theSecurityClassification [2]
	Field: FSCLAS. More...

char	theCopyNumber [6]
	Field: FSCOP. More...

char	theNumberOfCopies [6]
	Field: FSCOPYS. More...

char	theEncryption [2]
	Field: ENCRYP. More...

Protected Attributes inherited from ossimNitfFileHeader
std::vector< ossimNitfTagInformation >	theTagList

std::vector< ossimNitfDesInformation >	theDesList

Additional Inherited Members
Protected Member Functions inherited from ossimReferenced
virtual	~ossimReferenced ()

Detailed Description

Definition at line 19 of file ossimNitfFileHeaderV2_X.h.

Constructor & Destructor Documentation

◆ ossimNitfFileHeaderV2_X()

ossimNitfFileHeaderV2_X::ossimNitfFileHeaderV2_X ( )

Definition at line 45 of file ossimNitfFileHeaderV2_X.cpp.

46 {

47 }

Member Function Documentation

◆ formatDate()

ossimString ossimNitfFileHeaderV2_X::formatDate	(	const ossimString &	version,
		const ossimLocalTm &	d
	)

static

Definition at line 64 of file ossimNitfFileHeaderV2_X.cpp.

References ossimString::contains(), ossimLocalTm::convertToGmt(), ossimLocalTm::getDay(), ossimLocalTm::getHour(), ossimLocalTm::getMin(), ossimLocalTm::getMonth(), ossimLocalTm::getSec(), and ossimLocalTm::getYear().

Referenced by setDate(), ossimNitfFileHeaderV2_1::setDeclassificationDate(), ossimNitfFileHeaderV2_1::setDowngradingDate(), and ossimNitfFileHeaderV2_1::setSecuritySourceDate().

 {
    // Convert to ZULU as per spec for both versions.
    ossimLocalTm d1 = d.convertToGmt();

    std::ostringstream out;

    if(version.contains("2.1"))
    {
       out << std::setw(4)
       << std::setfill('0')
       << d1.getYear()
       << std::setw(2)
       << std::setfill('0')
       << d1.getMonth()
       << std::setw(2)
       << std::setfill('0')
       << d1.getDay()
       << std::setw(2)
       << std::setfill('0')
       << d1.getHour()
       << std::setw(2)
       << std::setfill('0')
       << d1.getMin()
       << std::setw(2)
       << std::setfill('0')
       << d1.getSec();
    }
    else
    {
       out  << std::setw(2)
       << std::setfill('0')
       << d1.getDay()
       << std::setw(2)
       << std::setfill('0')
       << d1.getHour()
       << std::setw(2)
       << std::setfill('0')
       << d1.getMin()
       << std::setw(2)
       << std::setfill('0')
       << d1.getSec()
       << "Z"
       <<monthConversionTable[d1.getMonth()]
       << std::setw(2)
       << std::setfill('0')
       <<d1.getShortYear();

    }

    return out.str();
 }

◆ getClassificationAuthority()

virtual ossimString ossimNitfFileHeaderV2_X::getClassificationAuthority ( ) const

pure virtual

Implemented in ossimNitfFileHeaderV2_0, and ossimNitfFileHeaderV2_1.

Referenced by getProperty().

◆ getCodeWords()

virtual ossimString ossimNitfFileHeaderV2_X::getCodeWords ( ) const

pure virtual

Implemented in ossimNitfFileHeaderV2_0, and ossimNitfFileHeaderV2_1.

Referenced by getProperty().

◆ getComplexityLevel()

ossimString ossimNitfFileHeaderV2_X::getComplexityLevel ( ) const

Definition at line 175 of file ossimNitfFileHeaderV2_X.cpp.

References theComplexityLevel.

Referenced by getProperty(), and ossimNitfFileHeaderV2_1::getProperty().

 {
    return theComplexityLevel;
 }

◆ getControlAndHandling()

virtual ossimString ossimNitfFileHeaderV2_X::getControlAndHandling ( ) const

pure virtual

Implemented in ossimNitfFileHeaderV2_0, and ossimNitfFileHeaderV2_1.

Referenced by getProperty().

◆ getCopyNumber()

ossimString ossimNitfFileHeaderV2_X::getCopyNumber ( ) const

Definition at line 205 of file ossimNitfFileHeaderV2_X.cpp.

References theCopyNumber.

Referenced by getProperty().

 {
    return theCopyNumber;
 }

◆ getDate()

ossimString ossimNitfFileHeaderV2_X::getDate ( ) const

Definition at line 190 of file ossimNitfFileHeaderV2_X.cpp.

References theDateTime.

Referenced by getProperty().

 {
    return theDateTime;
 }

◆ getEncryption()

ossimString ossimNitfFileHeaderV2_X::getEncryption ( ) const

Definition at line 215 of file ossimNitfFileHeaderV2_X.cpp.

References theEncryption.

Referenced by getProperty().

 {
    return theEncryption;
 }

◆ getNumberOfCopies()

ossimString ossimNitfFileHeaderV2_X::getNumberOfCopies ( ) const

Definition at line 210 of file ossimNitfFileHeaderV2_X.cpp.

References theNumberOfCopies.

Referenced by getProperty().

 {
    return theNumberOfCopies;
 }

◆ getOriginatingStationId()

ossimString ossimNitfFileHeaderV2_X::getOriginatingStationId ( ) const

Definition at line 185 of file ossimNitfFileHeaderV2_X.cpp.

References theOriginatingStationId.

Referenced by getProperty().

 {
    return theOriginatingStationId;
 }

◆ getOriginatorsName()

virtual ossimString ossimNitfFileHeaderV2_X::getOriginatorsName ( ) const

pure virtual

Implemented in ossimNitfFileHeaderV2_0, and ossimNitfFileHeaderV2_1.

◆ getOriginatorsPhone()

virtual ossimString ossimNitfFileHeaderV2_X::getOriginatorsPhone ( ) const

pure virtual

Implemented in ossimNitfFileHeaderV2_0, and ossimNitfFileHeaderV2_1.

◆ getProperty()

ossimRefPtr< ossimProperty > ossimNitfFileHeaderV2_X::getProperty ( const ossimString & name ) const

virtual

Reimplemented from ossimNitfFileHeader.

Reimplemented in ossimNitfFileHeaderV2_0, and ossimNitfFileHeaderV2_1.

Definition at line 304 of file ossimNitfFileHeaderV2_X.cpp.

References ossimStringProperty::addConstraint(), CLEVEL_KW, ENCRYP_KW, FDT_KW, FHDR_KW, FILE_TYPE_KW, FSCAUT_KW, FSCLAS_KW, FSCODE_KW, FSCOP_KW, FSCPYS_KW, FSCTLH_KW, FSCTLN_KW, FSREL_KW, FTITLE_KW, getClassificationAuthority(), getCodeWords(), getComplexityLevel(), getControlAndHandling(), getCopyNumber(), getDate(), getEncryption(), getNumberOfCopies(), getOriginatingStationId(), ossimNitfFileHeader::getProperty(), getReleasingInstructions(), getSecurityClassification(), getSecurityControlNumber(), getSystemType(), getTitle(), ossimNitfFileHeader::getVersion(), ossimNumericProperty::ossimNumericPropertyType_INT, OSTAID_KW, ossimNumericProperty::setNumericType(), STYPE_KW, theFileTypeVersion, and VERSION_KW.

Referenced by ossimNitfFileHeaderV2_1::getProperty(), and ossimNitfFileHeaderV2_0::getProperty().

 {
    ossimRefPtr<ossimProperty> property = 0;

    if(name == FHDR_KW)
    {
       property = new ossimStringProperty(name, ossimString(theFileTypeVersion));
    }
    else if(name == VERSION_KW)
    {
       property = new ossimStringProperty(name, ossimString(getVersion()));
    }
    else if(name == FILE_TYPE_KW)
    {
       property = new ossimStringProperty(name, "NITF");
    }
    else if(name == CLEVEL_KW)
    {
       ossimNumericProperty* numericProperty =
          new ossimNumericProperty(name,
                                   getComplexityLevel(),
                                   1,
                                   99);
       numericProperty->setNumericType(ossimNumericProperty::ossimNumericPropertyType_INT);
       property = numericProperty;

    }
    else if(name == STYPE_KW)
    {
       property = new ossimStringProperty(name, getSystemType().trim());
    }
    else if(name == OSTAID_KW)
    {
       property = new ossimStringProperty(name, getOriginatingStationId().trim());
    }
    else if(name == FDT_KW)
    {
       property = new ossimStringProperty(name, getDate());
    }
    else if(name == FTITLE_KW)
    {
       property = new ossimStringProperty(name, getTitle().trim());
    }
    else if(name == FSCLAS_KW)
    {
       ossimStringProperty* stringProperty =
          new ossimStringProperty(name,
                                  getSecurityClassification().trim(),
                                  false);

       stringProperty->addConstraint("");
       stringProperty->addConstraint("T");
       stringProperty->addConstraint("S");
       stringProperty->addConstraint("C");
       stringProperty->addConstraint("R");
       stringProperty->addConstraint("U");

       property = stringProperty;
    }
    else if(name == FSCODE_KW)
    {
       property = new ossimStringProperty(name,
                                          getCodeWords().trim());
    }
    else if(name == FSCTLH_KW)
    {
       property = new ossimStringProperty(name,
                                          getControlAndHandling().trim());
    }
    else if(name == FSREL_KW)
    {
       property = new ossimStringProperty(name,
                                          getReleasingInstructions().trim());
    }
    else if(name == FSCAUT_KW)
    {
       property = new ossimStringProperty(name,
                                          getClassificationAuthority().trim());
    }
    else if(name == FSCTLN_KW)
    {
       property = new ossimStringProperty(name,
                                          getSecurityControlNumber().trim());

    }
    else if(name == FSCOP_KW)
    {
       property = new ossimStringProperty(name,
                                          getCopyNumber().trim());
    }
    else if(name == FSCPYS_KW)
    {
       property = new ossimStringProperty(name,
                                          getNumberOfCopies().trim());
    }
    else if(name == ENCRYP_KW)
    {
       property = new ossimStringProperty(name,
                                          getEncryption().trim(),
                                          false);
    }
    else
    {
       property = ossimNitfFileHeader::getProperty(name).get();
    }

    return property;
 }

◆ getPropertyNames()

void ossimNitfFileHeaderV2_X::getPropertyNames ( std::vector< ossimString > & propertyNames ) const

virtual

Reimplemented from ossimNitfFileHeader.

Reimplemented in ossimNitfFileHeaderV2_0, and ossimNitfFileHeaderV2_1.

Definition at line 524 of file ossimNitfFileHeaderV2_X.cpp.

References CLEVEL_KW, ENCRYP_KW, FDT_KW, FHDR_KW, FILE_TYPE_KW, FSCAUT_KW, FSCLAS_KW, FSCODE_KW, FSCOP_KW, FSCPYS_KW, FSCTLH_KW, FSCTLN_KW, FSREL_KW, FTITLE_KW, ossimNitfFileHeader::getPropertyNames(), ONAME_KW, OPHONE_KW, OSTAID_KW, STYPE_KW, and VERSION_KW.

Referenced by ossimNitfFileHeaderV2_1::getPropertyNames(), and ossimNitfFileHeaderV2_0::getPropertyNames().

 {
    ossimNitfFileHeader::getPropertyNames(propertyNames);
    propertyNames.push_back(FILE_TYPE_KW);
    propertyNames.push_back(VERSION_KW);
    propertyNames.push_back(FHDR_KW);
    propertyNames.push_back(CLEVEL_KW);
    propertyNames.push_back(STYPE_KW);
    propertyNames.push_back(OSTAID_KW);
    propertyNames.push_back(FDT_KW);
    propertyNames.push_back(FTITLE_KW);
    propertyNames.push_back(FSCLAS_KW);
    propertyNames.push_back(FSCODE_KW);
    propertyNames.push_back(FSCTLH_KW);
    propertyNames.push_back(FSREL_KW);
    propertyNames.push_back(FSCAUT_KW);
    propertyNames.push_back(FSCTLN_KW);
    propertyNames.push_back(FSCOP_KW);
    propertyNames.push_back(FSCPYS_KW);
    propertyNames.push_back(ENCRYP_KW);
    propertyNames.push_back(ONAME_KW);
    propertyNames.push_back(OPHONE_KW);
 }

◆ getReleasingInstructions()

virtual ossimString ossimNitfFileHeaderV2_X::getReleasingInstructions ( ) const

pure virtual

Implemented in ossimNitfFileHeaderV2_0, and ossimNitfFileHeaderV2_1.

Referenced by getProperty().

◆ getSecurityClassification()

ossimString ossimNitfFileHeaderV2_X::getSecurityClassification ( ) const

virtual

Implements ossimNitfFileHeader.

Reimplemented in ossimNitfFileHeaderV2_0.

Definition at line 200 of file ossimNitfFileHeaderV2_X.cpp.

References theSecurityClassification.

Referenced by getProperty(), and ossimNitfDataExtensionSegmentV2_1::setSecurityMarkings().

 {
    return theSecurityClassification;
 }

◆ getSecurityControlNumber()

virtual ossimString ossimNitfFileHeaderV2_X::getSecurityControlNumber ( ) const

pure virtual

Implemented in ossimNitfFileHeaderV2_0, and ossimNitfFileHeaderV2_1.

Referenced by getProperty().

◆ getSystemType()

ossimString ossimNitfFileHeaderV2_X::getSystemType ( ) const

Definition at line 180 of file ossimNitfFileHeaderV2_X.cpp.

References theSystemType.

Referenced by getProperty().

 {
    return theSystemType;
 }

◆ getTitle()

ossimString ossimNitfFileHeaderV2_X::getTitle ( ) const

Definition at line 195 of file ossimNitfFileHeaderV2_X.cpp.

References theFileTitle.

Referenced by getProperty().

 {
    return theFileTitle;
 }

◆ isValid()

bool ossimNitfFileHeaderV2_X::isValid ( void ) const

virtual

isValid will test if the fields are valid and will return true or false.

Implements ossimNitfFileHeader.

Reimplemented in ossimNitfFileHeaderV2_1, and ossimNitfFileHeaderV2_0.

Definition at line 220 of file ossimNitfFileHeaderV2_X.cpp.

Referenced by ossimNitfFileHeaderV2_0::isValid(), and ossimNitfFileHeaderV2_1::isValid().

 {
    return true;
 }

◆ loadState()

bool ossimNitfFileHeaderV2_X::loadState	(	const ossimKeywordlist &	kwl,
		const char *	prefix = `0`
	)

virtual

Method to set fields from a keyword list.

This is not a true loadState as it does not lookup/initialize all class members. This was added to allow defaults, e.g OSTAID, to be set via a site configuration file. Code does not return false if a field(key) is not found..

Returns: true if ok or false on error.

Reimplemented from ossimObject.

Reimplemented in ossimNitfFileHeaderV2_1.

Definition at line 434 of file ossimNitfFileHeaderV2_X.cpp.

References CLEVEL_KW, ENCRYP_KW, FDT_KW, ossimKeywordlist::find(), FSCAUT_KW, FSCLAS_KW, FSCODE_KW, FSCOP_KW, FSCPYS_KW, FSCTLH_KW, FSCTLN_KW, FSREL_KW, FTITLE_KW, ONAME_KW, OPHONE_KW, OSTAID_KW, setClassificationAuthority(), setCodeWords(), setComplexityLevel(), setControlAndHandling(), setCopyNumber(), setDate(), setEncryption(), setFileSecurityClassification(), setNumberOfCopies(), setOriginatingStationId(), setOriginatorsName(), setOriginatorsPhone(), setReleasingInstructions(), setSecurityControlNumber(), setSystemType(), setTitle(), and STYPE_KW.

Referenced by ossimNitfWriterBase::initializeDefaultsFromConfigFile(), and ossimNitfFileHeaderV2_1::loadState().

 {
    // Note: Currently not looking up all fieds only ones that make sense.

    const char* lookup;

    lookup = kwl.find( prefix, CLEVEL_KW);
    if ( lookup )
    {
       setComplexityLevel( ossimString(lookup) );
    }
    lookup = kwl.find( prefix, STYPE_KW);
    if ( lookup )
    {
       setSystemType( ossimString(lookup) );
    }
    lookup = kwl.find( prefix, OSTAID_KW);
    if ( lookup )
    {
       setOriginatingStationId( ossimString(lookup) );
    }
    lookup = kwl.find( prefix, FDT_KW);
    if ( lookup )
    {
       setDate( ossimString(lookup) );
    }
    lookup = kwl.find( prefix, FTITLE_KW);
    if ( lookup )
    {
       setTitle( ossimString(lookup) );
    }
    lookup = kwl.find( prefix, FSCLAS_KW);
    if ( lookup )
    {
       setFileSecurityClassification( ossimString(lookup) );
    }
    lookup = kwl.find( prefix, FSCODE_KW);
    if ( lookup )
    {
       setCodeWords( ossimString(lookup) );
    }
    lookup = kwl.find( prefix, FSCTLH_KW);
    if ( lookup )
    {
       setControlAndHandling( ossimString(lookup) );
    }
    lookup = kwl.find( prefix, FSREL_KW);
    if ( lookup )
    {
       setReleasingInstructions( ossimString(lookup) );
    }
    lookup = kwl.find( prefix, FSCAUT_KW);
    if ( lookup )
    {
       setClassificationAuthority( ossimString(lookup) );
    }
    lookup = kwl.find( prefix, FSCTLN_KW);
    if ( lookup )
    {
       setSecurityControlNumber( ossimString(lookup) );
    }
    lookup = kwl.find( prefix, FSCOP_KW);
    if ( lookup )
    {
       setCopyNumber( ossimString(lookup) );
    }
    lookup = kwl.find( prefix, FSCPYS_KW);
    if ( lookup )
    {
       setNumberOfCopies( ossimString(lookup) );
    }
    lookup = kwl.find( prefix, ENCRYP_KW);
    if ( lookup )
    {
       setEncryption( ossimString(lookup) );
    }
    lookup = kwl.find( prefix, ONAME_KW);
    if ( lookup )
    {
       setOriginatorsName( ossimString(lookup) );
    }
    lookup = kwl.find( prefix, OPHONE_KW);
    if ( lookup )
    {
       setOriginatorsPhone( ossimString(lookup) );
    }

    return true;
 }

◆ saveState()

bool ossimNitfFileHeaderV2_X::saveState	(	ossimKeywordlist &	kwl,
		const ossimString &	prefix = `""`
	)		const

virtual

Reimplemented from ossimNitfFileHeader.

Definition at line 413 of file ossimNitfFileHeaderV2_X.cpp.

References ossimKeywordlist::add(), ossimString::c_str(), CLEVEL_KW, ENCRYP_KW, FDT_KW, FHDR_KW, FSCLAS_KW, FSCOP_KW, FSCPYS_KW, FTITLE_KW, OSTAID_KW, ossimNitfFileHeader::saveState(), STYPE_KW, theComplexityLevel, theCopyNumber, theDateTime, theEncryption, theFileTitle, theFileTypeVersion, theNumberOfCopies, theOriginatingStationId, theSecurityClassification, and theSystemType.

Referenced by ossimNitfFileHeaderV2_1::saveState(), and ossimNitfFileHeaderV2_0::saveState().

 {
    bool result = ossimNitfFileHeader::saveState(kwl, prefix);

    if(result)
    {
       kwl.add(prefix, FHDR_KW.c_str(),   theFileTypeVersion);
       kwl.add(prefix, CLEVEL_KW.c_str(), theComplexityLevel);
       kwl.add(prefix, STYPE_KW.c_str(),  theSystemType);
       kwl.add(prefix, OSTAID_KW.c_str(), theOriginatingStationId);
       kwl.add(prefix, FDT_KW.c_str(),    theDateTime);
       kwl.add(prefix, FTITLE_KW.c_str(), theFileTitle);
       kwl.add(prefix, FSCLAS_KW.c_str(), theSecurityClassification);
       kwl.add(prefix, FSCOP_KW.c_str(),  theCopyNumber);
       kwl.add(prefix, FSCPYS_KW.c_str(), theNumberOfCopies);
       kwl.add(prefix, ENCRYP_KW.c_str(), theEncryption);
    }

    return result;
 }

◆ setClassificationAuthority()

virtual void ossimNitfFileHeaderV2_X::setClassificationAuthority ( const ossimString & classAuth )

pure virtual

Implemented in ossimNitfFileHeaderV2_1, and ossimNitfFileHeaderV2_0.

Referenced by loadState(), and setProperty().

◆ setCodeWords()

virtual void ossimNitfFileHeaderV2_X::setCodeWords ( const ossimString & codeWords )

pure virtual

Implemented in ossimNitfFileHeaderV2_0, and ossimNitfFileHeaderV2_1.

Referenced by loadState(), and setProperty().

◆ setComplexityLevel()

void ossimNitfFileHeaderV2_X::setComplexityLevel ( const ossimString & level )

Definition at line 49 of file ossimNitfFileHeaderV2_X.cpp.

References ossimNitfCommon::setField(), and theComplexityLevel.

Referenced by loadState(), and ossimNitfWriterBase::setComplexityLevel().

 {
    ossimNitfCommon::setField(theComplexityLevel, level, 2, std::ios::right, '0');
 }

◆ setControlAndHandling()

virtual void ossimNitfFileHeaderV2_X::setControlAndHandling ( const ossimString & controlAndHandling )

pure virtual

Implemented in ossimNitfFileHeaderV2_0, and ossimNitfFileHeaderV2_1.

Referenced by loadState(), and setProperty().

◆ setCopyNumber()

void ossimNitfFileHeaderV2_X::setCopyNumber ( const ossimString & copyNumber )

Definition at line 146 of file ossimNitfFileHeaderV2_X.cpp.

References ossimNitfCommon::setField(), theCopyNumber, and ossimString::trim().

Referenced by loadState(), and setProperty().

 {
    if(copyNumber.trim() == "")
    {
       memset(theCopyNumber, '0', 5);
    }
    else
    {
       ossimNitfCommon::setField(theCopyNumber, copyNumber, 5, std::ios::right, '0');
    }
 }

◆ setDate() [1/3]

void ossimNitfFileHeaderV2_X::setDate ( const ossimLocalTm & d )

Sets field FDT.

Version 2.0 format: DDHHMMSSZMONYY Version 2.1 format: CCYYMMDDhhmmss

Parameters

ossimLocalTm Local time. Note that this will be converted to GMT(ZULU).

Definition at line 118 of file ossimNitfFileHeaderV2_X.cpp.

References formatDate(), ossimNitfFileHeader::getVersion(), and theDateTime.

Referenced by ossimNitf20Writer::addTags(), ossimNitfWriter::writeBlockBandSeparate(), ossimNitf20Writer::writeBlockBandSequential(), and ossimNitfWriter::writeBlockBandSequential().

 {
    memcpy(theDateTime, formatDate(getVersion(), d).c_str(), 14);
 }

◆ setDate() [2/3]

void ossimNitfFileHeaderV2_X::setDate ( const ossimString & d )

Sets field FDT.

Parameters

d	Date string to copy to FDT field.

Note: No conversions performed.

Definition at line 123 of file ossimNitfFileHeaderV2_X.cpp.

References ossimString::c_str(), ossimString::size(), and theDateTime.

 {
    if(d.size()==14)
    {
       memcpy(theDateTime, d.c_str(), 14);
    }
 }

◆ setDate() [3/3]

void ossimNitfFileHeaderV2_X::setDate ( )

virtual

Sets field FDT to current time converted to GMT(ZULU).

Version 2.0 format: DDHHMMSSZMONYY Version 2.1 format: CCYYMMDDhhmmss

Definition at line 131 of file ossimNitfFileHeaderV2_X.cpp.

Referenced by loadState(), and setProperty().

 {
    setDate(ossimLocalTm(0));
 }

◆ setEncryption()

void ossimNitfFileHeaderV2_X::setEncryption ( const ossimString & encryption )

Definition at line 170 of file ossimNitfFileHeaderV2_X.cpp.

References ossimNitfCommon::setField(), and theEncryption.

Referenced by loadState(), ossimNitf20Writer::ossimNitf20Writer(), ossimNitfWriter::ossimNitfWriter(), and setProperty().

 {
    ossimNitfCommon::setField(theEncryption, encryption, 1);
 }

◆ setFileSecurityClassification()

void ossimNitfFileHeaderV2_X::setFileSecurityClassification ( const ossimString & securityClassification )

Definition at line 141 of file ossimNitfFileHeaderV2_X.cpp.

References ossimNitfCommon::setField(), and theSecurityClassification.

Referenced by loadState(), and setProperty().

 {
    ossimNitfCommon::setField(theSecurityClassification, securityClassification, 1);
 }

◆ setNumberOfCopies()

void ossimNitfFileHeaderV2_X::setNumberOfCopies ( const ossimString & numberOfCopies )

Definition at line 158 of file ossimNitfFileHeaderV2_X.cpp.

References ossimNitfCommon::setField(), theNumberOfCopies, and ossimString::trim().

Referenced by loadState(), and setProperty().

 {
    if(numberOfCopies.trim() == "")
    {
       memset(theNumberOfCopies, 0, 5);
    }
    else
    {
       ossimNitfCommon::setField(theNumberOfCopies, numberOfCopies, 5, std::ios::right, '0');
    }
 }

◆ setOriginatingStationId()

void ossimNitfFileHeaderV2_X::setOriginatingStationId ( const ossimString & originationId )

Definition at line 59 of file ossimNitfFileHeaderV2_X.cpp.

References ossimNitfCommon::setField(), and theOriginatingStationId.

Referenced by loadState(), and setProperty().

 {
    ossimNitfCommon::setField(theOriginatingStationId, originationId, 10);
 }

◆ setOriginatorsName()

virtual void ossimNitfFileHeaderV2_X::setOriginatorsName ( const ossimString & originatorName )

pure virtual

Implemented in ossimNitfFileHeaderV2_1, and ossimNitfFileHeaderV2_0.

Referenced by loadState(), and setProperty().

◆ setOriginatorsPhone()

virtual void ossimNitfFileHeaderV2_X::setOriginatorsPhone ( const ossimString & origniatorPhone )

pure virtual

Implemented in ossimNitfFileHeaderV2_1, and ossimNitfFileHeaderV2_0.

Referenced by loadState(), and setProperty().

◆ setProperty()

void ossimNitfFileHeaderV2_X::setProperty ( ossimRefPtr< ossimProperty > property )

virtual

Reimplemented from ossimNitfFileHeader.

Reimplemented in ossimNitfFileHeaderV2_0, and ossimNitfFileHeaderV2_1.

Definition at line 225 of file ossimNitfFileHeaderV2_X.cpp.

References ENCRYP_KW, FDT_KW, FHDR_KW, FSCAUT_KW, FSCLAS_KW, FSCODE_KW, FSCOP_KW, FSCPYS_KW, FSCTLH_KW, FSCTLN_KW, FSREL_KW, FTITLE_KW, ONAME_KW, OPHONE_KW, OSTAID_KW, setClassificationAuthority(), setCodeWords(), setControlAndHandling(), setCopyNumber(), setDate(), setEncryption(), setFileSecurityClassification(), setNumberOfCopies(), setOriginatingStationId(), setOriginatorsName(), setOriginatorsPhone(), ossimNitfFileHeader::setProperty(), setReleasingInstructions(), setSecurityControlNumber(), setSystemType(), setTitle(), STYPE_KW, ossimString::upcase(), ossimRefPtr< T >::valid(), and ossimProperty::valueToString().

Referenced by ossimNitfFileHeaderV2_1::setProperty(), and ossimNitfFileHeaderV2_0::setProperty().

 {
    if(!property.valid()) return;

    ossimString name = property->getName();

    // Make case insensitive:
    name.upcase();

    if(name == FHDR_KW)
    {

    }
    else if(name == STYPE_KW)
    {
       setSystemType(property->valueToString());
    }
    else if(name == OSTAID_KW)
    {
       setOriginatingStationId(property->valueToString());
    }
    else if(name == FDT_KW)
    {
       setDate(property->valueToString());
    }
    else if(name == FTITLE_KW)
    {
       setTitle(property->valueToString());
    }
    else if(name == FSCLAS_KW)
    {
       setFileSecurityClassification(property->valueToString());
    }
    else if(name == FSCODE_KW)
    {
       setCodeWords(property->valueToString());
    }
    else if(name == FSCTLH_KW)
    {
       setControlAndHandling(property->valueToString());
    }
    else if(name == FSREL_KW)
    {
       setReleasingInstructions(property->valueToString());
    }
    else if(name == FSCAUT_KW)
    {
       setClassificationAuthority(property->valueToString());
    }
    else if(name == FSCTLN_KW)
    {
       setSecurityControlNumber(property->valueToString());
    }
    else if(name == FSCOP_KW)
    {
       setCopyNumber(property->valueToString());
    }
    else if(name == FSCPYS_KW)
    {
       setNumberOfCopies(property->valueToString());
    }
    else if(name == ENCRYP_KW)
    {
       setEncryption(property->valueToString());
    }
    else if(name == ONAME_KW)
    {
       setOriginatorsName(property->valueToString());
    }
    else if(name == OPHONE_KW)
    {
       setOriginatorsPhone(property->valueToString());
    }
    else
    {
       ossimNitfFileHeader::setProperty(property);
    }
 }

◆ setReleasingInstructions()

virtual void ossimNitfFileHeaderV2_X::setReleasingInstructions ( const ossimString & releasingInstructions )

pure virtual

Implemented in ossimNitfFileHeaderV2_0, and ossimNitfFileHeaderV2_1.

Referenced by loadState(), and setProperty().

◆ setSecurityControlNumber()

virtual void ossimNitfFileHeaderV2_X::setSecurityControlNumber ( const ossimString & controlNo )

pure virtual

Implemented in ossimNitfFileHeaderV2_1, and ossimNitfFileHeaderV2_0.

Referenced by loadState(), and setProperty().

◆ setSystemType()

void ossimNitfFileHeaderV2_X::setSystemType ( const ossimString & systemType )

Definition at line 54 of file ossimNitfFileHeaderV2_X.cpp.

References ossimNitfCommon::setField(), and theSystemType.

Referenced by loadState(), and setProperty().

 {
    ossimNitfCommon::setField(theSystemType, systemType, 4);
 }

◆ setTitle()

void ossimNitfFileHeaderV2_X::setTitle ( const ossimString & title )

Definition at line 136 of file ossimNitfFileHeaderV2_X.cpp.

References ossimNitfCommon::setField(), and theFileTitle.

Referenced by loadState(), and setProperty().

 {
    ossimNitfCommon::setField(theFileTitle, title, 80);
 }

Member Data Documentation

◆ CLEVEL_KW

const ossimString ossimNitfFileHeaderV2_X::CLEVEL_KW = "CLEVEL"

static

Definition at line 125 of file ossimNitfFileHeaderV2_X.h.

Referenced by getProperty(), ossimNitfFileHeaderV2_1::getProperty(), ossimNitfFileHeaderV2_0::getProperty(), getPropertyNames(), ossimNitfFileHeaderV2_0::getPropertyNames(), loadState(), saveState(), and ossimNitfFileHeaderV2_0::setProperty().

◆ ENCRYP_KW

const ossimString ossimNitfFileHeaderV2_X::ENCRYP_KW = "ENCRYP"

static

Definition at line 138 of file ossimNitfFileHeaderV2_X.h.

Referenced by getProperty(), getPropertyNames(), ossimNitfFileHeaderV2_0::getPropertyNames(), loadState(), saveState(), and setProperty().

◆ FDT_KW

const ossimString ossimNitfFileHeaderV2_X::FDT_KW = "FDT"

static

Definition at line 128 of file ossimNitfFileHeaderV2_X.h.

Referenced by getProperty(), getPropertyNames(), ossimNitfFileHeaderV2_0::getPropertyNames(), loadState(), saveState(), and setProperty().

◆ FHDR_KW

const ossimString ossimNitfFileHeaderV2_X::FHDR_KW = "FHDR"

static

Definition at line 123 of file ossimNitfFileHeaderV2_X.h.

Referenced by getProperty(), getPropertyNames(), saveState(), and setProperty().

◆ FILE_TYPE_KW

const ossimString ossimNitfFileHeaderV2_X::FILE_TYPE_KW = "FILE_TYPE"

static

Properties of a NITF 2.x Header file.

See MIL-STD-2500A or MIL-STD-2500B for details.

To access these, pass the constant to getProperty().

Definition at line 122 of file ossimNitfFileHeaderV2_X.h.

Referenced by getProperty(), and getPropertyNames().

◆ FSCAUT_KW

const ossimString ossimNitfFileHeaderV2_X::FSCAUT_KW = "FSCAUT"

static

Definition at line 134 of file ossimNitfFileHeaderV2_X.h.

Referenced by getProperty(), getPropertyNames(), ossimNitfFileHeaderV2_0::getPropertyNames(), loadState(), ossimNitfFileHeaderV2_1::saveState(), and setProperty().

◆ FSCLAS_KW

const ossimString ossimNitfFileHeaderV2_X::FSCLAS_KW = "FSCLAS"

static

Definition at line 130 of file ossimNitfFileHeaderV2_X.h.

Referenced by getProperty(), getPropertyNames(), ossimNitfFileHeaderV2_0::getPropertyNames(), loadState(), saveState(), and setProperty().

◆ FSCODE_KW

const ossimString ossimNitfFileHeaderV2_X::FSCODE_KW = "FSCODE"

static

Definition at line 131 of file ossimNitfFileHeaderV2_X.h.

Referenced by getProperty(), getPropertyNames(), ossimNitfFileHeaderV2_0::getPropertyNames(), loadState(), ossimNitfFileHeaderV2_1::saveState(), and setProperty().

◆ FSCOP_KW

const ossimString ossimNitfFileHeaderV2_X::FSCOP_KW = "FSCOP"

static

Definition at line 136 of file ossimNitfFileHeaderV2_X.h.

Referenced by getProperty(), getPropertyNames(), ossimNitfFileHeaderV2_0::getPropertyNames(), loadState(), saveState(), and setProperty().

◆ FSCPYS_KW

const ossimString ossimNitfFileHeaderV2_X::FSCPYS_KW = "FSCPYS"

static

Definition at line 137 of file ossimNitfFileHeaderV2_X.h.

Referenced by getProperty(), getPropertyNames(), ossimNitfFileHeaderV2_0::getPropertyNames(), loadState(), saveState(), and setProperty().

◆ FSCTLH_KW

const ossimString ossimNitfFileHeaderV2_X::FSCTLH_KW = "FSCTLH"

static

Definition at line 132 of file ossimNitfFileHeaderV2_X.h.

Referenced by getProperty(), getPropertyNames(), ossimNitfFileHeaderV2_0::getPropertyNames(), loadState(), ossimNitfFileHeaderV2_1::saveState(), and setProperty().

◆ FSCTLN_KW

const ossimString ossimNitfFileHeaderV2_X::FSCTLN_KW = "FSCTLN"

static

Definition at line 135 of file ossimNitfFileHeaderV2_X.h.

Referenced by getProperty(), getPropertyNames(), ossimNitfFileHeaderV2_0::getPropertyNames(), loadState(), ossimNitfFileHeaderV2_1::saveState(), and setProperty().

◆ FSREL_KW

const ossimString ossimNitfFileHeaderV2_X::FSREL_KW = "FSREL"

static

Definition at line 133 of file ossimNitfFileHeaderV2_X.h.

Referenced by getProperty(), getPropertyNames(), ossimNitfFileHeaderV2_0::getPropertyNames(), loadState(), ossimNitfFileHeaderV2_1::saveState(), and setProperty().

◆ FTITLE_KW

const ossimString ossimNitfFileHeaderV2_X::FTITLE_KW = "FTITLE"

static

Definition at line 129 of file ossimNitfFileHeaderV2_X.h.

Referenced by getProperty(), getPropertyNames(), ossimNitfFileHeaderV2_0::getPropertyNames(), loadState(), saveState(), and setProperty().

◆ ONAME_KW

const ossimString ossimNitfFileHeaderV2_X::ONAME_KW = "ONAME"

static

Definition at line 139 of file ossimNitfFileHeaderV2_X.h.

Referenced by ossimNitfFileHeaderV2_1::getProperty(), ossimNitfFileHeaderV2_0::getProperty(), getPropertyNames(), ossimNitfFileHeaderV2_0::getPropertyNames(), loadState(), ossimNitfFileHeaderV2_1::saveState(), setProperty(), and ossimNitfFileHeaderV2_0::setProperty().

◆ OPHONE_KW

const ossimString ossimNitfFileHeaderV2_X::OPHONE_KW = "OPHONE"

static

Definition at line 140 of file ossimNitfFileHeaderV2_X.h.

Referenced by ossimNitfFileHeaderV2_1::getProperty(), ossimNitfFileHeaderV2_0::getProperty(), getPropertyNames(), ossimNitfFileHeaderV2_0::getPropertyNames(), loadState(), ossimNitfFileHeaderV2_1::saveState(), setProperty(), and ossimNitfFileHeaderV2_0::setProperty().

◆ OSTAID_KW

const ossimString ossimNitfFileHeaderV2_X::OSTAID_KW = "OSTAID"

static

Definition at line 127 of file ossimNitfFileHeaderV2_X.h.

Referenced by getProperty(), getPropertyNames(), ossimNitfFileHeaderV2_0::getPropertyNames(), loadState(), saveState(), and setProperty().

◆ STYPE_KW

const ossimString ossimNitfFileHeaderV2_X::STYPE_KW = "STYPE"

static

Definition at line 126 of file ossimNitfFileHeaderV2_X.h.

Referenced by getProperty(), getPropertyNames(), ossimNitfFileHeaderV2_0::getPropertyNames(), loadState(), saveState(), and setProperty().

◆ theComplexityLevel

char ossimNitfFileHeaderV2_X::theComplexityLevel[3]

protected

Field: CLEVEL.

Required field. 2 byte field ranges from 01-99

Definition at line 162 of file ossimNitfFileHeaderV2_X.h.

Referenced by ossimNitfFileHeaderV2_1::clearFields(), ossimNitfFileHeaderV2_0::clearFields(), getComplexityLevel(), ossimNitfFileHeaderV2_0::getComplianceLevel(), ossimNitfFileHeaderV2_0::getProperty(), ossimNitfFileHeaderV2_1::parseStream(), ossimNitfFileHeaderV2_0::print(), ossimNitfFileHeaderV2_1::print(), saveState(), setComplexityLevel(), ossimNitfFileHeaderV2_0::setComplianceLevel(), ossimNitfFileHeaderV2_1::writeStream(), and ossimNitfFileHeaderV2_0::writeStream().

◆ theCopyNumber

char ossimNitfFileHeaderV2_X::theCopyNumber[6]

protected

Field: FSCOP.

This is the copy number and is a 5 byte numeric of the form 00000-99999. This field is required.

Definition at line 236 of file ossimNitfFileHeaderV2_X.h.

Referenced by ossimNitfFileHeaderV2_1::clearFields(), ossimNitfFileHeaderV2_0::clearFields(), getCopyNumber(), ossimNitfFileHeaderV2_1::parseStream(), ossimNitfFileHeaderV2_0::print(), ossimNitfFileHeaderV2_1::print(), saveState(), setCopyNumber(), ossimNitfFileHeaderV2_1::writeStream(), and ossimNitfFileHeaderV2_0::writeStream().

◆ theDateTime

char ossimNitfFileHeaderV2_X::theDateTime[15]

protected

Field: FDT.

for NITF 2.1 format we have

Has the form CCYYMMDDhhmmss and is a required field

where CC is the first two digits of the year 00-99 YY is the last 2 digits of the year 00-99 MM is the month 01-12 DD is the day 01-31 hh is the hour 00-23 mm is the minutes 00-59 ss is the seconds 00-59

For NITF 2.0 format we have

DDHHMMSSZMONYY

where DD is the day HH is the hour MM is the minutes SS is the seconds MON is the first 3 characters of the month YY is the 2 digit year

Definition at line 205 of file ossimNitfFileHeaderV2_X.h.

Referenced by ossimNitfFileHeaderV2_1::clearFields(), ossimNitfFileHeaderV2_0::clearFields(), getDate(), ossimNitfFileHeaderV2_1::getDateTime(), ossimNitfFileHeaderV2_0::getDateTime(), ossimNitfFileHeaderV2_1::parseStream(), ossimNitfFileHeaderV2_0::print(), ossimNitfFileHeaderV2_1::print(), saveState(), setDate(), ossimNitfFileHeaderV2_1::writeStream(), and ossimNitfFileHeaderV2_0::writeStream().

◆ theEncryption

char ossimNitfFileHeaderV2_X::theEncryption[2]

protected

Field: ENCRYP.

This is a reqired field and is a 1 byte numeric where 0 is not encrypted and 1 is encrypted. This field is reuqired.

Definition at line 254 of file ossimNitfFileHeaderV2_X.h.

Referenced by ossimNitfFileHeaderV2_1::clearFields(), ossimNitfFileHeaderV2_0::clearFields(), getEncryption(), ossimNitfFileHeaderV2_1::isEncrypted(), ossimNitfFileHeaderV2_0::isEncrypted(), ossimNitfFileHeaderV2_1::parseStream(), ossimNitfFileHeaderV2_0::print(), ossimNitfFileHeaderV2_1::print(), saveState(), setEncryption(), ossimNitfFileHeaderV2_1::writeStream(), and ossimNitfFileHeaderV2_0::writeStream().

◆ theFileTitle

char ossimNitfFileHeaderV2_X::theFileTitle[81]

protected

Field: FTITLE.

Is a required field and is an 80 byte Alphanumeric value this can be all BCS spaces.

Definition at line 213 of file ossimNitfFileHeaderV2_X.h.

Referenced by ossimNitfFileHeaderV2_1::clearFields(), ossimNitfFileHeaderV2_0::clearFields(), getTitle(), ossimNitfFileHeaderV2_1::parseStream(), ossimNitfFileHeaderV2_0::print(), ossimNitfFileHeaderV2_1::print(), saveState(), setTitle(), ossimNitfFileHeaderV2_1::writeStream(), and ossimNitfFileHeaderV2_0::writeStream().

◆ theFileTypeVersion

char ossimNitfFileHeaderV2_X::theFileTypeVersion[10]

protected

Field: FHDR Required field for NITF and is a 9 byte value.

format is NITFNN.NN where NN.NN is the version number. The valid version number for this class is NITF02.10.

NOTE: This field may contain NSIF01.00 which is also the same as NITF02.10

Definition at line 155 of file ossimNitfFileHeaderV2_X.h.

Referenced by ossimNitfFileHeaderV2_1::clearFields(), ossimNitfFileHeaderV2_0::clearFields(), getProperty(), ossimNitfFileHeaderV2_1::getVersion(), ossimNitfFileHeaderV2_0::getVersion(), ossimNitfFileHeaderV2_1::parseStream(), ossimNitfFileHeaderV2_0::print(), ossimNitfFileHeaderV2_1::print(), saveState(), ossimNitfFileHeaderV2_1::writeStream(), and ossimNitfFileHeaderV2_0::writeStream().

◆ theNumberOfCopies

char ossimNitfFileHeaderV2_X::theNumberOfCopies[6]

protected

Field: FSCOPYS.

This is the total number of copies that exist. This is a 5 byte numeric of the form 00000-99999. This field is required.

Definition at line 245 of file ossimNitfFileHeaderV2_X.h.

Referenced by ossimNitfFileHeaderV2_1::clearFields(), ossimNitfFileHeaderV2_0::clearFields(), getNumberOfCopies(), ossimNitfFileHeaderV2_1::parseStream(), ossimNitfFileHeaderV2_0::print(), ossimNitfFileHeaderV2_1::print(), saveState(), setNumberOfCopies(), ossimNitfFileHeaderV2_1::writeStream(), and ossimNitfFileHeaderV2_0::writeStream().

◆ theOriginatingStationId

char ossimNitfFileHeaderV2_X::theOriginatingStationId[11]

protected

Field: OSTAID.

Is required 10 byte field and can't be blank

Definition at line 177 of file ossimNitfFileHeaderV2_X.h.

Referenced by ossimNitfFileHeaderV2_1::clearFields(), ossimNitfFileHeaderV2_0::clearFields(), getOriginatingStationId(), ossimNitfFileHeaderV2_1::parseStream(), ossimNitfFileHeaderV2_0::print(), ossimNitfFileHeaderV2_1::print(), saveState(), setOriginatingStationId(), ossimNitfFileHeaderV2_1::writeStream(), and ossimNitfFileHeaderV2_0::writeStream().

◆ theSecurityClassification

char ossimNitfFileHeaderV2_X::theSecurityClassification[2]

protected

Field: FSCLAS.

This is a reqired field and is 1 byte long and can contain one of the following:

T Top secret S Secret C Confidential R Restricted U Unclassified

Definition at line 227 of file ossimNitfFileHeaderV2_X.h.

Referenced by ossimNitfFileHeaderV2_1::clearFields(), ossimNitfFileHeaderV2_0::clearFields(), getSecurityClassification(), ossimNitfFileHeaderV2_0::getSecurityClassification(), ossimNitfFileHeaderV2_1::parseStream(), ossimNitfFileHeaderV2_0::print(), ossimNitfFileHeaderV2_1::print(), saveState(), setFileSecurityClassification(), ossimNitfFileHeaderV2_1::writeStream(), and ossimNitfFileHeaderV2_0::writeStream().

◆ theSystemType

char ossimNitfFileHeaderV2_X::theSystemType[5]

protected

Field: STYPE.

Required field. 4 bytes

Definition at line 169 of file ossimNitfFileHeaderV2_X.h.

Referenced by ossimNitfFileHeaderV2_1::clearFields(), ossimNitfFileHeaderV2_0::clearFields(), getSystemType(), ossimNitfFileHeaderV2_1::parseStream(), ossimNitfFileHeaderV2_0::print(), ossimNitfFileHeaderV2_1::print(), saveState(), setSystemType(), ossimNitfFileHeaderV2_1::writeStream(), and ossimNitfFileHeaderV2_0::writeStream().

◆ VERSION_KW

const ossimString ossimNitfFileHeaderV2_X::VERSION_KW = "VERSION"

static

Definition at line 124 of file ossimNitfFileHeaderV2_X.h.

Referenced by getProperty(), and getPropertyNames().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ossimNitfFileHeaderV2_X()

Member Function Documentation

◆ formatDate()

◆ getClassificationAuthority()

◆ getCodeWords()

◆ getComplexityLevel()

◆ getControlAndHandling()

◆ getCopyNumber()

◆ getDate()

◆ getEncryption()

◆ getNumberOfCopies()

◆ getOriginatingStationId()

◆ getOriginatorsName()

◆ getOriginatorsPhone()

◆ getProperty()

◆ getPropertyNames()

◆ getReleasingInstructions()

◆ getSecurityClassification()

◆ getSecurityControlNumber()

◆ getSystemType()

◆ getTitle()

◆ isValid()

◆ loadState()

◆ saveState()

◆ setClassificationAuthority()

◆ setCodeWords()

◆ setComplexityLevel()

◆ setControlAndHandling()

◆ setCopyNumber()

◆ setDate() [1/3]

◆ setDate() [2/3]

◆ setDate() [3/3]

◆ setEncryption()

◆ setFileSecurityClassification()

◆ setNumberOfCopies()

◆ setOriginatingStationId()

◆ setOriginatorsName()

◆ setOriginatorsPhone()

◆ setProperty()

◆ setReleasingInstructions()

◆ setSecurityControlNumber()

◆ setSystemType()

◆ setTitle()

Member Data Documentation

◆ CLEVEL_KW

◆ ENCRYP_KW

◆ FDT_KW

◆ FHDR_KW

◆ FILE_TYPE_KW

◆ FSCAUT_KW

◆ FSCLAS_KW

◆ FSCODE_KW

◆ FSCOP_KW

◆ FSCPYS_KW

◆ FSCTLH_KW

◆ FSCTLN_KW

◆ FSREL_KW

◆ FTITLE_KW

◆ ONAME_KW

◆ OPHONE_KW

◆ OSTAID_KW

◆ STYPE_KW

◆ theComplexityLevel

◆ theCopyNumber

◆ theDateTime

◆ theEncryption

◆ theFileTitle

◆ theFileTypeVersion

◆ theNumberOfCopies

◆ theOriginatingStationId

◆ theSecurityClassification

◆ theSystemType

◆ VERSION_KW
