ossimImageViewAffineTransform Class Reference

#include <ossimImageViewAffineTransform.h>

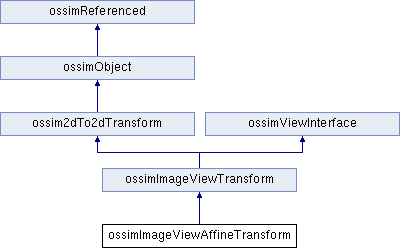

Inheritance diagram for ossimImageViewAffineTransform:

Public Member Functions
	ossimImageViewAffineTransform (double rotateDegrees=0.0, double imageScaleX=1.0, double imageScaleY=1.0, double scaleXValue=1.0, double scaleYValue=1.0, double translateXValue=0.0, double translateYValue=0.0, double pivotXValue=0.0, double pivotYValue=0.0)
virtual	~ossimImageViewAffineTransform ()
	ossimImageViewAffineTransform (const ossimImageViewAffineTransform &src)
virtual ossimObject *	dup () const
virtual void	imageToView (const ossimDpt &imagePoint, ossimDpt &viewPoint) const
virtual void	viewToImage (const ossimDpt &viewPoint, ossimDpt &imagePoint) const
void	setMatrix (NEWMAT::Matrix &matrix)
const NEWMAT::Matrix &	getMatrix () const
virtual bool	isIdentity () const
virtual bool	isValid () const
virtual bool	setView (ossimObject *obj)
virtual ossimObject *	getView ()
virtual const ossimObject *	getView () const
virtual ossimDpt	getInputMetersPerPixel () const
virtual ossimDpt	getOutputMetersPerPixel () const
virtual void	translate (double deltaX, double deltaY)
virtual void	translateX (double deltaX)
virtual void	translateY (double deltaY)
virtual void	pivot (double originX, double originY)
virtual void	pivotX (double originX)
virtual void	pivotY (double originY)
virtual void	imageSpaceScale (double x, double y)
virtual void	imageSpaceScaleX (double x)
virtual void	imageSpaceScaleY (double y)
virtual void	scale (double x, double y)
virtual void	scaleX (double x)
virtual void	scaleY (double y)
virtual void	rotate (double degrees)
ossim_float64	getRotation () const
const ossimDpt &	getScale () const
const ossimDpt &	getTranslate () const
const ossimDpt &	getPivot () const
virtual bool	isEqualTo (const ossimObject &obj, ossimCompareType compareType=OSSIM_COMPARE_FULL) const
virtual bool	loadState (const ossimKeywordlist &kwl, const char *prefix=0)
virtual bool	saveState (ossimKeywordlist &kwl, const char *prefix=0) const
Public Member Functions inherited from ossimImageViewTransform
	ossimImageViewTransform ()
virtual void	forward (const ossimDpt &input, ossimDpt &output) const
virtual void	inverse (const ossimDpt &input, ossimDpt &output) const
virtual void	getImageToViewScale (ossimDpt &resultScale, const ossimDpt &imagePoint, const ossimDpt &deltaImagePointXY) const
virtual void	getViewToImageScale (ossimDpt &resultScale, const ossimDpt &imagePoint, const ossimDpt &deltaImagePointXY) const
virtual std::ostream &	print (std::ostream &out) const
	Generic print method. More...
ossimDpt	imageToView (const ossimDpt &imagePoint) const
ossimDpt	viewToImage (const ossimDpt &viewPoint) const
virtual void	getScaleChangeImageToView (ossimDpt &result, const ossimDrect &imageRect)
virtual void	getScaleChangeViewToImage (ossimDpt &result, const ossimDrect &viewRect)
virtual void	getRoundTripErrorView (ossimDpt &result, const ossimDpt &viewPt) const
virtual ossimDpt	getRoundTripErrorView (const ossimDpt &viewPt) const
virtual void	getRoundTripErrorImage (ossimDpt &result, const ossimDpt &imagePt) const
virtual ossimDpt	getRoundTripErrorImage (const ossimDpt &imagePt) const
virtual ossimDrect	getImageToViewBounds (const ossimDrect &imageRect) const
	Computes the bounding rect in view space of the quad formed by the transformed image points of the input rect corners. More...
virtual ossimDrect	getViewToImageBounds (const ossimDrect &viewRect) const
	Computes the bounding rect in image space of the quad formed by the transformed view points of the input rect corners. More...
Public Member Functions inherited from ossim2dTo2dTransform
virtual void	forward (ossimDpt &modify_this) const
virtual void	inverse (ossimDpt &modify_this) const
virtual const ossim2dTo2dTransform &	operator= (const ossim2dTo2dTransform &rhs)
virtual ossimDpt	getOrigin () const
void	setConvergenceThreshold (const double &new_threshold)
void	setMaxIterations (int new_max_iters)
void	setDxDy (const ossimDpt &dxdy)
Public Member Functions inherited from ossimObject
	ossimObject ()
virtual	~ossimObject ()
virtual ossimString	getShortName () const
virtual ossimString	getLongName () const
virtual ossimString	getDescription () const
virtual ossimString	getClassName () const
virtual RTTItypeid	getType () const
virtual bool	canCastTo (ossimObject *obj) const
virtual bool	canCastTo (const RTTItypeid &id) const
virtual bool	canCastTo (const ossimString &parentClassName) const
virtual void	accept (ossimVisitor &visitor)
Public Member Functions inherited from ossimReferenced
	ossimReferenced ()
	ossimReferenced (const ossimReferenced &)
ossimReferenced &	operator= (const ossimReferenced &)
void	ref () const
	increment the reference count by one, indicating that this object has another pointer which is referencing it. More...
void	unref () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...
void	unref_nodelete () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...
int	referenceCount () const
Public Member Functions inherited from ossimViewInterface
	ossimViewInterface ()
	ossimViewInterface (ossimObject *base)
virtual	~ossimViewInterface ()
virtual void	refreshView ()
ossimObject *	getBaseObject ()

Protected Member Functions
void	buildCompositeTransform ()
Protected Member Functions inherited from ossim2dTo2dTransform
	ossim2dTo2dTransform ()
virtual	~ossim2dTo2dTransform ()
Protected Member Functions inherited from ossimReferenced
virtual	~ossimReferenced ()

Protected Attributes
NEWMAT::Matrix	m_transform
NEWMAT::Matrix	m_inverseTransform
ossim_float64	m_rotation
ossimDpt	m_imageSpaceScale
ossimDpt	m_scale
ossimDpt	m_translate
ossimDpt	m_pivot
Protected Attributes inherited from ossim2dTo2dTransform
double	theConvergenceThreshold
int	theMaxIterations
ossimDpt	theDxDy
Protected Attributes inherited from ossimViewInterface
ossimObject *	theObject

Detailed Description

Definition at line 17 of file ossimImageViewAffineTransform.h.

Constructor & Destructor Documentation

ossimImageViewAffineTransform() [1/2]

ossimImageViewAffineTransform::ossimImageViewAffineTransform	(	double	rotateDegrees = 0.0,
		double	imageScaleX = 1.0,
		double	imageScaleY = 1.0,
		double	scaleXValue = 1.0,
		double	scaleYValue = 1.0,
		double	translateXValue = 0.0,
		double	translateYValue = 0.0,
		double	pivotXValue = 0.0,
		double	pivotYValue = 0.0
	)

Definition at line 18 of file ossimImageViewAffineTransform.cpp.

   :m_transform(3,3),
    m_inverseTransform(3,3),
    m_rotation(rotateDegrees),
    m_imageSpaceScale(imageScaleX,imageScaleY),
    m_scale(scaleXValue, scaleYValue),
    m_translate(translateXValue, translateYValue),
    m_pivot(pivotXValue, pivotYValue)
{
   m_transform << 1 << 0 << 0
                << 0 << 1 << 0
                << 0 << 0 << 1;

   m_inverseTransform << 1 << 0 << 0
                       << 0 << 1 << 0
                       << 0 << 0 << 1;


   rotate(rotateDegrees);
   scale(scaleXValue, scaleYValue);
   translate(translateXValue, translateYValue);
   pivot(m_pivot.x, m_pivot.y);
}

~ossimImageViewAffineTransform()

ossimImageViewAffineTransform::~ossimImageViewAffineTransform ( )

virtual

Definition at line 50 of file ossimImageViewAffineTransform.cpp.

{
}

ossimImageViewAffineTransform() [2/2]

ossimImageViewAffineTransform::ossimImageViewAffineTransform ( const ossimImageViewAffineTransform &  src )

inline

Definition at line 31 of file ossimImageViewAffineTransform.h.

   :ossimImageViewTransform(src),
   m_transform(src.m_transform),
   m_inverseTransform(src.m_inverseTransform),
   m_rotation(src.m_rotation),
   m_imageSpaceScale(src.m_imageSpaceScale),
   m_scale(src.m_scale),
   m_translate(src.m_translate),
   m_pivot(src.m_pivot)
   {
   }

Member Function Documentation

buildCompositeTransform()

void ossimImageViewAffineTransform::buildCompositeTransform ( )

protected

Definition at line 176 of file ossimImageViewAffineTransform.cpp.

References ossimMatrix3x3::createRotationZMatrix(), m_imageSpaceScale, m_inverseTransform, m_pivot, m_rotation, m_scale, m_transform, m_translate, ossimDpt::x, and ossimDpt::y.

Referenced by imageSpaceScale(), loadState(), pivot(), rotate(), scale(), and translate().

{
   NEWMAT::Matrix imageSpaceScaleM(3,3);
   NEWMAT::Matrix scaleM(3, 3);
   NEWMAT::Matrix rotzM = ossimMatrix3x3::createRotationZMatrix(m_rotation);
   NEWMAT::Matrix transM(3,3);
   NEWMAT::Matrix transOriginM(3,3);
   NEWMAT::Matrix transOriginNegatedM(3,3);

   transM << 1 << 0 << m_translate.x
          << 0 << 1 << m_translate.y
          << 0 << 0 << 1;

   transOriginM << 1 << 0 << m_pivot.x
                << 0 << 1 << m_pivot.y
                << 0 << 0 << 1;

   transOriginNegatedM << 1 << 0 << -m_pivot.x
                       << 0 << 1 << -m_pivot.y
                       << 0 << 0 << 1;

   scaleM << m_scale.x << 0 << 0
          << 0 << m_scale.y << 0
          << 0 << 0 << 1;

   imageSpaceScaleM << m_imageSpaceScale.x << 0 << 0
          << 0 << m_imageSpaceScale.y << 0
          << 0 << 0 << 1;

//   m_transform        = transOriginM*transM*scaleM*rotzM*transOriginNegatedM;
   // pivot should just be around the rotation
   m_transform        = transM*scaleM*transOriginM*rotzM*imageSpaceScaleM*transOriginNegatedM;
   m_inverseTransform = m_transform.i();

}

dup()

virtual ossimObject* ossimImageViewAffineTransform::dup ( ) const

inlinevirtual

Reimplemented from ossimObject.

Definition at line 42 of file ossimImageViewAffineTransform.h.

   {
      return new ossimImageViewAffineTransform(*this);
   }

getInputMetersPerPixel()

ossimDpt ossimImageViewAffineTransform::getInputMetersPerPixel ( ) const

virtual

Returns

(1, 1) ???????(drb)

Implements ossimImageViewTransform.

Definition at line 312 of file ossimImageViewAffineTransform.cpp.

{
   return ossimDpt(1,1);
}

getMatrix()

const NEWMAT::Matrix & ossimImageViewAffineTransform::getMatrix

(

)

const

Definition at line 75 of file ossimImageViewAffineTransform.cpp.

References m_transform.

{
   return m_transform;
}

getOutputMetersPerPixel()

ossimDpt ossimImageViewAffineTransform::getOutputMetersPerPixel ( ) const

virtual

Returns

(nan, nan) ????????? (drb)

Implements ossimImageViewTransform.

Definition at line 317 of file ossimImageViewAffineTransform.cpp.

References ossimDpt::makeNan().

{
   ossimDpt result;

   result.makeNan();

   return result;
}

getPivot()

const ossimDpt& ossimImageViewAffineTransform::getPivot ( ) const

inline

Definition at line 155 of file ossimImageViewAffineTransform.h.

{return m_pivot;}

getRotation()

ossim_float64 ossimImageViewAffineTransform::getRotation ( ) const

inline

Definition at line 152 of file ossimImageViewAffineTransform.h.

{return m_rotation;}

getScale()

const ossimDpt& ossimImageViewAffineTransform::getScale ( ) const

inline

Definition at line 153 of file ossimImageViewAffineTransform.h.

{return m_scale;}

getTranslate()

const ossimDpt& ossimImageViewAffineTransform::getTranslate ( ) const

inline

Definition at line 154 of file ossimImageViewAffineTransform.h.

{return m_translate;}

getView() [1/2]

ossimObject * ossimImageViewAffineTransform::getView ( )

virtual

Implements ossimViewInterface.

Definition at line 302 of file ossimImageViewAffineTransform.cpp.

{
   return this;
}

getView() [2/2]

const ossimObject * ossimImageViewAffineTransform::getView ( ) const

virtual

Implements ossimViewInterface.

Definition at line 307 of file ossimImageViewAffineTransform.cpp.

{
   return this;
}

imageSpaceScale()

void ossimImageViewAffineTransform::imageSpaceScale ( double  x, double  y  )

virtual

Will allow you to specify an image scale for both the x and y direction.

Definition at line 106 of file ossimImageViewAffineTransform.cpp.

References buildCompositeTransform(), m_imageSpaceScale, x, and y.

Referenced by imageSpaceScaleX(), and imageSpaceScaleY().

{
   m_imageSpaceScale = ossimDpt(x,y);
   buildCompositeTransform();
}

imageSpaceScaleX()

void ossimImageViewAffineTransform::imageSpaceScaleX ( double  x )

virtual

Will allow you to specify an image scale along the X direction.

Definition at line 112 of file ossimImageViewAffineTransform.cpp.

References imageSpaceScale(), m_imageSpaceScale, x, and ossimDpt::y.

{
   imageSpaceScale(x, m_imageSpaceScale.y);
}

imageSpaceScaleY()

void ossimImageViewAffineTransform::imageSpaceScaleY ( double  y )

virtual

Will allow you to an image scale along the Y direction.

Definition at line 117 of file ossimImageViewAffineTransform.cpp.

References imageSpaceScale(), m_imageSpaceScale, ossimDpt::x, and y.

{
   imageSpaceScale(m_imageSpaceScale.x, y);
}

imageToView()

void ossimImageViewAffineTransform::imageToView ( const ossimDpt &  imagePoint, ossimDpt &  viewPoint  ) const

virtual

Reimplemented from ossimImageViewTransform.

Definition at line 54 of file ossimImageViewAffineTransform.cpp.

References m_transform, ossimDpt::x, and ossimDpt::y.

Referenced by ossimChipperUtil::addCrossHairAnnotation().

{

    viewPoint.x = m_transform[0][0]*imagePoint.x + m_transform[0][1]*imagePoint.y + m_transform[0][2];
    viewPoint.y = m_transform[1][0]*imagePoint.x + m_transform[1][1]*imagePoint.y + m_transform[1][2];
}

isEqualTo()

bool ossimImageViewAffineTransform::isEqualTo ( const ossimObject &  obj, ossimCompareType  compareType = OSSIM_COMPARE_FULL  ) const

virtual

Reimplemented from ossimObject.

Definition at line 326 of file ossimImageViewAffineTransform.cpp.

References ossim::almostEqual(), ossimObject::isEqualTo(), ossimDpt::isEqualTo(), m_imageSpaceScale, m_pivot, m_rotation, m_scale, and m_translate.

{
   bool result = ossimImageViewTransform::isEqualTo(obj,compareType);

   if(result)
   {
      result = false;
      const ossimImageViewAffineTransform* rhs = dynamic_cast<const ossimImageViewAffineTransform*> (&obj);
      if(rhs)
      {
         result = (ossim::almostEqual(m_rotation, rhs->m_rotation)&&
                   (m_imageSpaceScale.isEqualTo(rhs->m_imageSpaceScale))&&
                   (m_scale.isEqualTo(rhs->m_scale))&&
                   (m_translate.isEqualTo(rhs->m_translate))&&
                   (m_pivot.isEqualTo(rhs->m_pivot))
                   );
      }
   }

   return result;
}

isIdentity()

virtual bool ossimImageViewAffineTransform::isIdentity ( ) const

inlinevirtual

derived classes will specify if the imageViewTransform is an identity.

Implements ossimImageViewTransform.

Definition at line 59 of file ossimImageViewAffineTransform.h.

   {
      return ((m_transform[0][0] == 1.0)&&
              (m_transform[0][1] == 0.0)&&
              (m_transform[0][2] == 0.0)&&
              (m_transform[1][0] == 0.0)&&
              (m_transform[1][1] == 1.0)&&
              (m_transform[1][2] == 0.0)&&
              (m_transform[2][0] == 0.0)&&
              (m_transform[2][1] == 0.0)&&
              (m_transform[2][2] == 1.0));
   }

isValid()

bool ossimImageViewAffineTransform::isValid ( void  ) const

virtual

Implements ossimImageViewTransform.

Definition at line 281 of file ossimImageViewAffineTransform.cpp.

{
   return true;
}

loadState()

bool ossimImageViewAffineTransform::loadState ( const ossimKeywordlist &  kwl, const char *  prefix = 0  )

virtual

Method to the load (recreate) the state of the object from a keyword list. Return true if ok or false on error.

Reimplemented from ossimImageViewTransform.

Definition at line 213 of file ossimImageViewAffineTransform.cpp.

References buildCompositeTransform(), ossimKeywordlist::find(), ossimImageViewTransform::loadState(), m_imageSpaceScale, m_pivot, m_rotation, m_scale, m_translate, and ossimDpt::toPoint().

{
   ossimString imageScaleString(kwl.find(prefix,"image_scale"));
   ossimString scaleString(kwl.find(prefix,"scale"));
   ossimString pivotString(kwl.find(prefix,"pivot"));
   ossimString translateString(kwl.find(prefix,"translate"));
   ossimString rotateString(kwl.find(prefix,"rotate"));

   if(!imageScaleString.empty())
   {
      m_imageSpaceScale.toPoint(imageScaleString);
   }
   if(!scaleString.empty())
   {
      m_scale.toPoint(scaleString);
   }
   if(!pivotString.empty())
   {
      m_pivot.toPoint(pivotString);
   }
   if(!translateString.empty())
   {
      m_translate.toPoint(translateString);
   }
   if(!rotateString.empty())
   {
      m_rotation = rotateString.toDouble();
   }
   buildCompositeTransform();
   ossimImageViewTransform::loadState(kwl, prefix);
   return true;
}

pivot()

void ossimImageViewAffineTransform::pivot ( double  originX, double  originY  )

virtual

Translate the origin for rotation in the x and y direction.

Definition at line 149 of file ossimImageViewAffineTransform.cpp.

References buildCompositeTransform(), m_pivot, ossimDpt::x, and ossimDpt::y.

Referenced by pivotX(), and pivotY().

{
   m_pivot.x = originX;
   m_pivot.y = originY;
   buildCompositeTransform();
}

pivotX()

void ossimImageViewAffineTransform::pivotX ( double  originX )

virtual

Translate the origin for rotation in the x direction.

Definition at line 156 of file ossimImageViewAffineTransform.cpp.

References m_pivot, pivot(), and ossimDpt::y.

{
   pivot(originX,m_pivot.y);
}

pivotY()

void ossimImageViewAffineTransform::pivotY ( double  originY )

virtual

Translate the origin for rotation in the y direction.

Definition at line 161 of file ossimImageViewAffineTransform.cpp.

References m_pivot, pivot(), and ossimDpt::x.

{
   pivot(m_pivot.x, originY);
}

rotate()

void ossimImageViewAffineTransform::rotate ( double  degrees )

virtual

Will apply a rotation

Definition at line 166 of file ossimImageViewAffineTransform.cpp.

References buildCompositeTransform(), and m_rotation.

{
   m_rotation = degrees;
   buildCompositeTransform();
//   m_transform = (m_transform * ossimMatrix3x3::createRotationZMatrix(degrees));
//    m_transform = ossimMatrix3x3::createRotationZMatrix(degrees) * m_transform;

//    m_inverseTransform = m_transform.i();
}

saveState()

bool ossimImageViewAffineTransform::saveState ( ossimKeywordlist &  kwl, const char *  prefix = 0  ) const

virtual

Method to save the state of the object to a keyword list. Return true if ok or false on error.

Reimplemented from ossimImageViewTransform.

Definition at line 247 of file ossimImageViewAffineTransform.cpp.

References ossimKeywordlist::add(), m_imageSpaceScale, m_pivot, m_rotation, m_scale, m_translate, ossimImageViewTransform::saveState(), and ossimDpt::toString().

{
   kwl.add(prefix,
           "image_scale",
           m_imageSpaceScale.toString(),
           true);
   kwl.add(prefix,
           "rotation",
           m_rotation,
           true);

   // Fixed for multithread sequencer load, this uses saveState/loadState to
   // clone image chains and rotate was not cloning, producing invalid tiles
   kwl.add(prefix,
           "rotate",
           m_rotation,
           true);
   kwl.add(prefix,
           "pivot",
           m_pivot.toString(),
           true);
   kwl.add(prefix,
           "scale",
           m_scale.toString(),
           true);
   kwl.add(prefix,
           "translate",
           m_translate.toString(),
           true);

   return ossimImageViewTransform::saveState(kwl,prefix);
}

scale()

void ossimImageViewAffineTransform::scale ( double  x, double  y  )

virtual

will allow you to specify a scale for both the x and y direction.

Definition at line 122 of file ossimImageViewAffineTransform.cpp.

References buildCompositeTransform(), m_scale, x, and y.

Referenced by ossimKakaduJpipHandler::getTile(), scaleX(), and scaleY().

{
//    NEWMAT::Matrix m(3, 3);

//    m << x << 0 << 0
//      << 0 << y << 0
//      << 0 << 0 << 1;


//   m_transform = (m*m_transform);

//   m_inverseTransform = m_transform.i();

   m_scale = ossimDpt(x,y);
   buildCompositeTransform();
}

scaleX()

void ossimImageViewAffineTransform::scaleX ( double  x )

virtual

will alow you to specify a scale along the X direction.

Definition at line 139 of file ossimImageViewAffineTransform.cpp.

References m_scale, scale(), x, and ossimDpt::y.

{
   scale(x, m_scale.y);
}

scaleY()

void ossimImageViewAffineTransform::scaleY ( double  y )

virtual

Will allow you to scale along the Y direction.

Definition at line 144 of file ossimImageViewAffineTransform.cpp.

References m_scale, scale(), ossimDpt::x, and y.

{
   scale(m_scale.x, y);
}

setMatrix()

void ossimImageViewAffineTransform::setMatrix

(

NEWMAT::Matrix &

matrix

)

Definition at line 69 of file ossimImageViewAffineTransform.cpp.

References m_inverseTransform, and m_transform.

{
   m_transform        = matrix;
   m_inverseTransform = m_transform.i();
}

setView()

bool ossimImageViewAffineTransform::setView ( ossimObject *  baseObject )

virtual

The derived classes should overrid this method and return true or false whether it was able to cast the past in view to a view that it can interface to. So if you are a projective view you might cast to an ossimProjection. The ownsTheView specifies whether or not it owns the passed in view pointer. This will specifiy whether or not the derived classes need to re-allocate the pointer or just delete its old pointer and set it to the passed in pointer.

Implements ossimViewInterface.

Definition at line 286 of file ossimImageViewAffineTransform.cpp.

References m_imageSpaceScale, m_inverseTransform, m_pivot, m_rotation, m_scale, m_transform, and m_translate.

{
   ossimImageViewAffineTransform* view = dynamic_cast<ossimImageViewAffineTransform*> (obj);
   if(view)
   {
      m_transform = view->m_transform;
      m_inverseTransform = view->m_inverseTransform;
      m_rotation = view->m_rotation;
      m_imageSpaceScale = view->m_imageSpaceScale;
      m_scale = view->m_scale;
      m_translate = view->m_translate;
      m_pivot = view->m_pivot;
   }
   return (view!=0);
}

translate()

void ossimImageViewAffineTransform::translate ( double  deltaX, double  deltaY  )

virtual

Translate in the x and y direction.

Definition at line 80 of file ossimImageViewAffineTransform.cpp.

References buildCompositeTransform(), and m_translate.

Referenced by translateX(), and translateY().

{
   m_translate = ossimDpt(deltaX, deltaY);
   buildCompositeTransform();
//    NEWMAT::Matrix m(3,3);

//    m << 1 << 0 << deltaX
//      << 0 << 1 << deltaY
//      << 0 << 0 << 1;


//    m_transform = m*m_transform;
//    m_inverseTransform = m_transform.i();
}

translateX()

void ossimImageViewAffineTransform::translateX ( double  deltaX )

virtual

Translate in the x direction.

Definition at line 96 of file ossimImageViewAffineTransform.cpp.

References m_translate, translate(), and ossimDpt::y.

{
   translate(deltaX, m_translate.y);
}

translateY()

void ossimImageViewAffineTransform::translateY ( double  deltaY )

virtual

Translate in the Y direction.

Definition at line 101 of file ossimImageViewAffineTransform.cpp.

References m_translate, translate(), and ossimDpt::x.

{
   translate(m_translate.x, deltaY);
}

viewToImage()

void ossimImageViewAffineTransform::viewToImage ( const ossimDpt &  viewPoint, ossimDpt &  imagePoint  ) const

virtual

Reimplemented from ossimImageViewTransform.

Definition at line 62 of file ossimImageViewAffineTransform.cpp.

References m_inverseTransform, ossimDpt::x, and ossimDpt::y.

{
   imagePoint.x = m_inverseTransform[0][0]*viewPoint.x + m_inverseTransform[0][1]*viewPoint.y + m_inverseTransform[0][2];
   imagePoint.y = m_inverseTransform[1][0]*viewPoint.x + m_inverseTransform[1][1]*viewPoint.y + m_inverseTransform[1][2];
}

Member Data Documentation

m_imageSpaceScale

ossimDpt ossimImageViewAffineTransform::m_imageSpaceScale

protected

Definition at line 179 of file ossimImageViewAffineTransform.h.

Referenced by buildCompositeTransform(), imageSpaceScale(), imageSpaceScaleX(), imageSpaceScaleY(), isEqualTo(), loadState(), saveState(), and setView().

m_inverseTransform

NEWMAT::Matrix ossimImageViewAffineTransform::m_inverseTransform

protected

Definition at line 177 of file ossimImageViewAffineTransform.h.

Referenced by buildCompositeTransform(), setMatrix(), setView(), and viewToImage().

m_pivot

ossimDpt ossimImageViewAffineTransform::m_pivot

protected

Definition at line 182 of file ossimImageViewAffineTransform.h.

Referenced by buildCompositeTransform(), isEqualTo(), loadState(), pivot(), pivotX(), pivotY(), saveState(), and setView().

m_rotation

ossim_float64 ossimImageViewAffineTransform::m_rotation

protected

Definition at line 178 of file ossimImageViewAffineTransform.h.

Referenced by buildCompositeTransform(), isEqualTo(), loadState(), rotate(), saveState(), and setView().

m_scale

ossimDpt ossimImageViewAffineTransform::m_scale

protected

Definition at line 180 of file ossimImageViewAffineTransform.h.

Referenced by buildCompositeTransform(), isEqualTo(), loadState(), saveState(), scale(), scaleX(), scaleY(), and setView().

m_transform

NEWMAT::Matrix ossimImageViewAffineTransform::m_transform

protected

This is the transformation from image to viewing coordinates. If this matrix is changed it will perform an inverse to solve the inverse transform.

Definition at line 176 of file ossimImageViewAffineTransform.h.

Referenced by buildCompositeTransform(), getMatrix(), imageToView(), setMatrix(), and setView().

m_translate

ossimDpt ossimImageViewAffineTransform::m_translate

protected

Definition at line 181 of file ossimImageViewAffineTransform.h.

Referenced by buildCompositeTransform(), isEqualTo(), loadState(), saveState(), setView(), translate(), translateX(), and translateY().

---

The documentation for this class was generated from the following files:

• ossimImageViewAffineTransform.h
• ossimImageViewAffineTransform.cpp
