ossimAdjustableParameterInterface Class Reference

#include <ossimAdjustableParameterInterface.h>

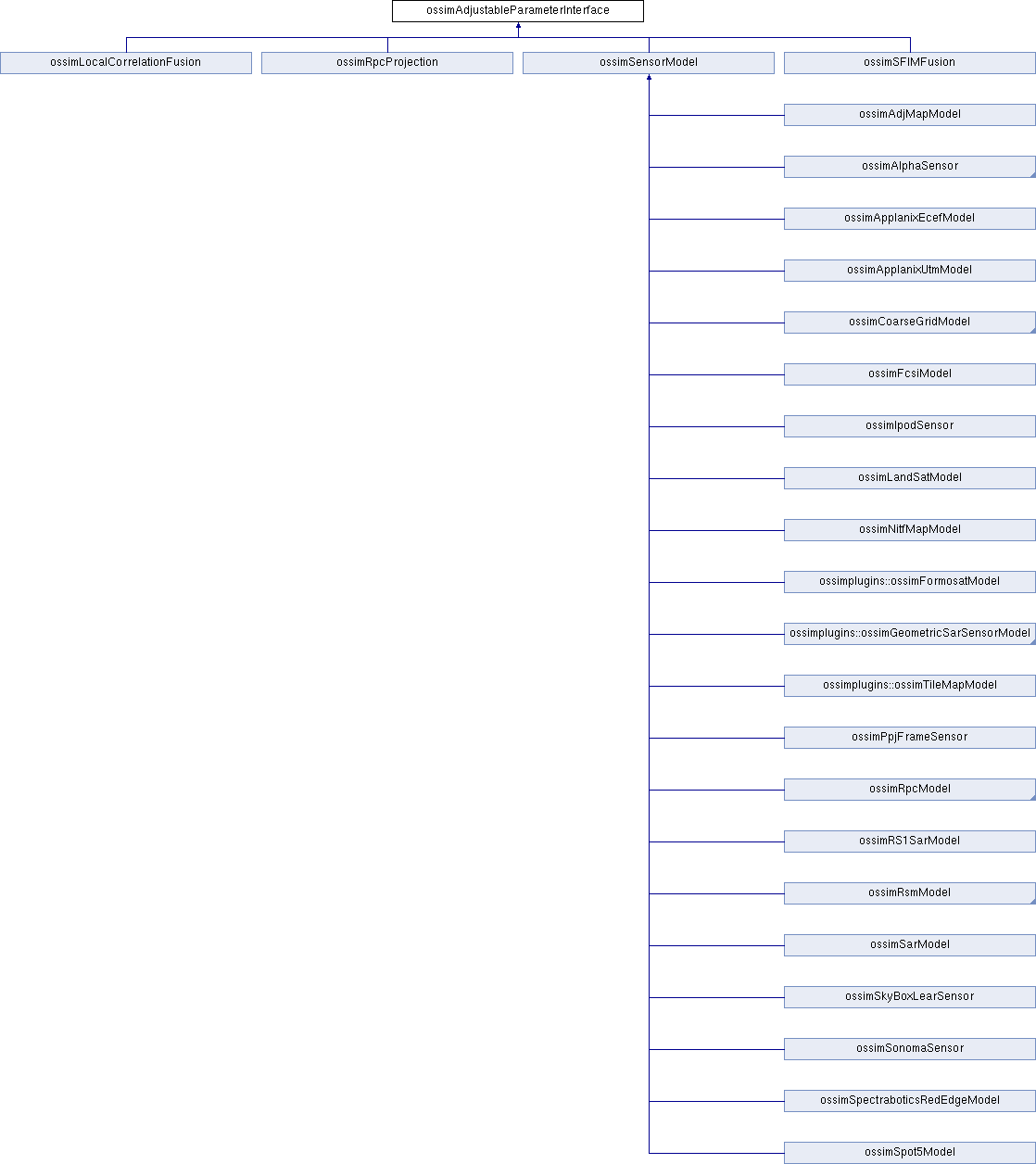

Inheritance diagram for ossimAdjustableParameterInterface:

Public Member Functions
	ossimAdjustableParameterInterface ()
	ossimAdjustableParameterInterface (const ossimAdjustableParameterInterface &rhs)
virtual	~ossimAdjustableParameterInterface ()
void	newAdjustment (ossim_uint32 numberOfParameters=0)
void	setAdjustmentDescription (const ossimString &description)
ossimString	getAdjustmentDescription () const
ossimString	getAdjustmentDescription (ossim_uint32 adjustmentIdx) const
	Returns adjustmentDescription of specific adjustmentInfo. More...
void	setCurrentAdjustment (ossim_uint32 adjustmentIndex, bool notify=false)
bool	setCurrentAdjustment (const ossimString &description, bool notify=false)
	Sets the current adjustment to the adjustment with a matching description. More...
void	eraseAdjustment (bool notify)
void	eraseAdjustment (ossim_uint32 idx, bool notify)
virtual void	initAdjustableParameters ()
void	resetAdjustableParameters (bool notify=false)
void	copyAdjustment (ossim_uint32 idx, bool notify)
void	copyAdjustment (bool notify=false)
virtual ossimObject *	getBaseObject ()=0
virtual const ossimObject *	getBaseObject () const =0
void	keepAdjustment (ossim_uint32 idx, bool createCopy)
virtual void	keepAdjustment (bool createCopy=true)
const ossimAdjustableParameterInterface &	operator= (const ossimAdjustableParameterInterface &rhs)
void	removeAllAdjustments ()
ossim_uint32	getNumberOfAdjustableParameters () const
double	getAdjustableParameter (ossim_uint32 idx) const
virtual void	setAdjustableParameter (ossim_uint32 idx, double value, bool notify=false)
virtual void	setAdjustableParameter (ossim_uint32 idx, double value, double sigma, bool notify=false)
double	getParameterSigma (ossim_uint32 idx) const
void	setParameterSigma (ossim_uint32 idx, double value, bool notify=false)
ossimUnitType	getParameterUnit (ossim_uint32 idx) const
void	setParameterUnit (ossim_uint32 idx, ossimUnitType unit)
void	setParameterUnit (ossim_uint32 idx, const ossimString &unit)
void	setParameterCenter (ossim_uint32 idx, double center, bool notify=false)
double	getParameterCenter (ossim_uint32 idx) const
double	computeParameterOffset (ossim_uint32 idx) const
void	setParameterOffset (ossim_uint32 idx, ossim_float64 value, bool notify=false)
ossimString	getParameterDescription (ossim_uint32 idx) const
void	setParameterDescription (ossim_uint32 idx, const ossimString &descrption)
ossim_int32	findParameterIdxGivenDescription (ossim_uint32 adjustmentIdx, const ossimString &name) const
ossim_int32	findParameterIdxContainingDescription (ossim_uint32 adjustmentIdx, const ossimString &name) const
bool	isParameterLocked (ossim_uint32 idx) const
void	setParameterLockFlag (ossim_uint32 idxParam, bool flag)
bool	getParameterLockFlag (ossim_uint32 idx) const
void	lockAllParametersCurrentAdjustment ()
void	unlockAllParametersCurrentAdjustment ()
void	lockAllParameters (ossim_uint32 idxAdjustment)
void	unlockAllParameters (ossim_uint32 idxAdjustment)
void	resizeAdjustableParameterArray (ossim_uint32 numberOfParameters)
void	setAdjustment (const ossimAdjustmentInfo &adj, bool notify=false)
void	setAdjustment (ossim_uint32 idx, const ossimAdjustmentInfo &adj, bool notify=false)
void	addAdjustment (const ossimAdjustmentInfo &adj, bool notify)
void	getAdjustment (ossimAdjustmentInfo &adj) const
void	getAdjustment (ossim_uint32 idx, ossimAdjustmentInfo &adj) const
ossim_uint32	getNumberOfAdjustments () const
ossim_uint32	getCurrentAdjustmentIdx () const
void	setDirtyFlag (bool flag=true)
void	setAllDirtyFlag (bool flag=true)
bool	hasDirtyAdjustments () const
virtual void	saveCurrentAdjustmentOnly (ossimKeywordlist &kwl, const ossimString &prefix=ossimString(""))
	Saves the current active adjustment to the KWL file. More...
bool	saveAdjustments (ossimKeywordlist &kwl, const ossimString &prefix=ossimString("")) const
	Save all adjustments to the KWL file. More...
bool	loadAdjustments (const ossimKeywordlist &kwl, const ossimString &prefix=ossimString(""))
virtual void	updateModel ()
	Provides the derived adjustable class an opportunity to update its state after a param change. More...
std::ostream &	print (std::ostream &out) const
	Dumps the currently active adjustment to ostream. More...
virtual void	adjustableParametersChanged ()

Protected Member Functions
bool	paramChanged (ossim_uint32 param_idx) const
	Returns true if specified parameter has been modified since last setAllChangeFlag(false) call. More...
void	setAllChangeFlags (bool areChanged)
	Sets all the change flags to the boolean indicated to indicate parameters are changed (TRUE) or not (FALSE). More...
void	initChangeFlags ()
	Initializes the change flags to TRUE. More...

Private Attributes
std::vector< bool >	theChangeFlags
std::vector< ossimAdjustmentInfo >	theAdjustmentList
ossim_uint32	theCurrentAdjustment

Detailed Description

Definition at line 17 of file ossimAdjustableParameterInterface.h.

Constructor & Destructor Documentation

ossimAdjustableParameterInterface() [1/2]

ossimAdjustableParameterInterface::ossimAdjustableParameterInterface

(

)

Definition at line 23 of file ossimAdjustableParameterInterface.cpp.

   :
   theChangeFlags(false),
   theAdjustmentList(0),
   theCurrentAdjustment(0)
{
}

ossimAdjustableParameterInterface() [2/2]

ossimAdjustableParameterInterface::ossimAdjustableParameterInterface

(

const ossimAdjustableParameterInterface &

rhs

)

Definition at line 31 of file ossimAdjustableParameterInterface.cpp.

   :
   theChangeFlags(rhs.theChangeFlags),
   theAdjustmentList(rhs.theAdjustmentList),
   theCurrentAdjustment(rhs.theCurrentAdjustment)
{
}

~ossimAdjustableParameterInterface()

virtual ossimAdjustableParameterInterface::~ossimAdjustableParameterInterface ( )

inlinevirtual

Definition at line 22 of file ossimAdjustableParameterInterface.h.

{}

Member Function Documentation

addAdjustment()

void ossimAdjustableParameterInterface::addAdjustment	(	const ossimAdjustmentInfo &	adj,
		bool	notify
	)

Definition at line 657 of file ossimAdjustableParameterInterface.cpp.

References adjustableParametersChanged(), and theAdjustmentList.

Referenced by ossimCoarseGridModel::initAdjustableParameters().

{
   theAdjustmentList.push_back(adj);
   if(notify)
   {
      adjustableParametersChanged();
   }
}

adjustableParametersChanged()

void ossimAdjustableParameterInterface::adjustableParametersChanged ( )

virtual

Reimplemented in ossimSensorModel, ossimLocalCorrelationFusion, ossimRpcProjection, and ossimSFIMFusion.

Definition at line 850 of file ossimAdjustableParameterInterface.cpp.

Referenced by addAdjustment(), copyAdjustment(), eraseAdjustment(), resetAdjustableParameters(), setAdjustableParameter(), setAdjustment(), setCurrentAdjustment(), setParameterCenter(), setParameterOffset(), and setParameterSigma().

{
}

computeParameterOffset()

double ossimAdjustableParameterInterface::computeParameterOffset

(

ossim_uint32

idx

)

const

Definition at line 450 of file ossimAdjustableParameterInterface.cpp.

References getNumberOfAdjustableParameters(), theAdjustmentList, and theCurrentAdjustment.

Referenced by ossimSFIMFusion::adjustableParametersChanged(), ossimRpcProjection::adjustableParametersChanged(), ossimLocalCorrelationFusion::adjustableParametersChanged(), ossimAlphaSensor::getCameraPosition(), ossimSFIMFusion::getProperty(), ossimLocalCorrelationFusion::getTile(), ossimIpodSensor::imagingRay(), ossimSkyBoxLearSensor::imagingRay(), ossimSonomaSensor::imagingRay(), ossimSFIMFusion::setFilters(), ossimLocalCorrelationFusion::setFilters(), ossimApplanixUtmModel::updateModel(), ossimSpectraboticsRedEdgeModel::updateModel(), ossimApplanixEcefModel::updateModel(), ossimIpodSensor::updateModel(), ossimSkyBoxLearSensor::updateModel(), ossimAdjMapModel::updateModel(), ossimLandSatModel::updateModel(), and ossimRpcModel::updateModel().

{
   if(!theAdjustmentList.size())
   {
      return 0.0;
   }
   if(idx < theAdjustmentList[theCurrentAdjustment].getNumberOfAdjustableParameters())
   {
      return theAdjustmentList[theCurrentAdjustment].getParameterList()[idx].computeOffset();
   }

   return 0.0;
}

copyAdjustment() [1/2]

void ossimAdjustableParameterInterface::copyAdjustment	(	ossim_uint32	idx,
		bool	notify
	)

Definition at line 143 of file ossimAdjustableParameterInterface.cpp.

References adjustableParametersChanged(), initChangeFlags(), theAdjustmentList, and theCurrentAdjustment.

Referenced by copyAdjustment(), keepAdjustment(), and resetAdjustableParameters().

{
    if(!theAdjustmentList.size())
    {
       return;
    }
    if(idx < theAdjustmentList.size())
    {
       theAdjustmentList.push_back(theAdjustmentList[idx]);

       if(idx == theCurrentAdjustment)
       {
          theCurrentAdjustment = (ossim_uint32) theAdjustmentList.size() - 1;
          initChangeFlags();
       }
       if(notify)
       {
          adjustableParametersChanged();
       }
    }

}

copyAdjustment() [2/2]

void ossimAdjustableParameterInterface::copyAdjustment

(

bool

notify = false

)

Definition at line 166 of file ossimAdjustableParameterInterface.cpp.

References copyAdjustment(), and theCurrentAdjustment.

{
   copyAdjustment(theCurrentAdjustment, notify);
}

eraseAdjustment() [1/2]

void ossimAdjustableParameterInterface::eraseAdjustment

(

bool

notify

)

Definition at line 219 of file ossimAdjustableParameterInterface.cpp.

References theCurrentAdjustment.

Referenced by resetAdjustableParameters().

{
   eraseAdjustment(theCurrentAdjustment, notify);
}

eraseAdjustment() [2/2]

void ossimAdjustableParameterInterface::eraseAdjustment	(	ossim_uint32	idx,
		bool	notify
	)

Definition at line 224 of file ossimAdjustableParameterInterface.cpp.

References adjustableParametersChanged(), theAdjustmentList, and theCurrentAdjustment.

{
   if(!theAdjustmentList.size())
   {
      return;
   }

   if(theCurrentAdjustment == idx)
   {
      theAdjustmentList.erase(theAdjustmentList.begin() + theCurrentAdjustment);
      if(theCurrentAdjustment >= theAdjustmentList.size())
      {
         if(theAdjustmentList.size() < 1)
         {
            theCurrentAdjustment = 0;
         }
         else
         {
            theCurrentAdjustment = (ossim_uint32)theAdjustmentList.size() - 1;
         }

      }

      if(notify)
      {
         adjustableParametersChanged();
      }
   }
   else if(idx < theAdjustmentList.size())
   {
      theAdjustmentList.erase(theAdjustmentList.begin() + idx);
      if(theAdjustmentList.size() < 1)
      {
         theCurrentAdjustment = 0;
      }
      else
      {
         if(theCurrentAdjustment > idx)
         {
            --theCurrentAdjustment;
            if(notify)
            {
               adjustableParametersChanged();
            }
         }
      }
      if(notify)
      {
         adjustableParametersChanged();
      }
   }
}

findParameterIdxContainingDescription()

ossim_int32 ossimAdjustableParameterInterface::findParameterIdxContainingDescription	(	ossim_uint32	adjustmentIdx,
		const ossimString &	name
	)		const

Definition at line 485 of file ossimAdjustableParameterInterface.cpp.

References getNumberOfAdjustments(), n, theAdjustmentList, and theCurrentAdjustment.

{
   ossim_int32 result = -1;
   if(adjustmentIdx < getNumberOfAdjustments())
   {
      ossim_uint32 idx = 0;
      ossim_uint32 n = theAdjustmentList[adjustmentIdx].getNumberOfAdjustableParameters();
      bool found = false;
      for(idx = 0; ((idx < n)&&(!found)); ++idx)
      {
         if(theAdjustmentList[theCurrentAdjustment].getParameterList()[idx].getDescription().contains(name))
         {
            result = (ossim_int32) idx;
         }
      }
   }

   return result;
}

findParameterIdxGivenDescription()

ossim_int32 ossimAdjustableParameterInterface::findParameterIdxGivenDescription	(	ossim_uint32	adjustmentIdx,
		const ossimString &	name
	)		const

Definition at line 464 of file ossimAdjustableParameterInterface.cpp.

References getNumberOfAdjustments(), n, theAdjustmentList, and theCurrentAdjustment.

{
   ossim_int32 result = -1;
   if(adjustmentIdx < getNumberOfAdjustments())
   {
      ossim_uint32 idx = 0;
      ossim_uint32 n = theAdjustmentList[adjustmentIdx].getNumberOfAdjustableParameters();
      bool found = false;
      for(idx = 0; ((idx < n)&&(!found)); ++idx)
      {
         if(theAdjustmentList[theCurrentAdjustment].getParameterList()[idx].getDescription() == name)
         {
            result = (ossim_int32) idx;
         }
      }
   }

   return result;
}

getAdjustableParameter()

double ossimAdjustableParameterInterface::getAdjustableParameter

(

ossim_uint32

idx

)

const

Definition at line 277 of file ossimAdjustableParameterInterface.cpp.

References getNumberOfAdjustableParameters(), theAdjustmentList, and theCurrentAdjustment.

Referenced by ossimRpcProjection::getForwardDeriv(), ossimSensorModel::getForwardDeriv(), ossimRpcProjection::getInverseDeriv(), and ossimSensorModel::getInverseDeriv().

{
   if(theAdjustmentList.size())
   {
      if(idx < theAdjustmentList[theCurrentAdjustment].getNumberOfAdjustableParameters())
      {
         return theAdjustmentList[theCurrentAdjustment].getParameterList()[idx].getParameter();
      }
   }

   return 0.0;
}

getAdjustment() [1/2]

void ossimAdjustableParameterInterface::getAdjustment

(

ossimAdjustmentInfo &

adj

)

const

Definition at line 666 of file ossimAdjustableParameterInterface.cpp.

References theCurrentAdjustment.

Referenced by ossimSensorModel::optimizeFit(), ossimAutRegUtil::saveAdjustment(), and saveCurrentAdjustmentOnly().

{
   getAdjustment(theCurrentAdjustment,  adj);
}

getAdjustment() [2/2]

void ossimAdjustableParameterInterface::getAdjustment	(	ossim_uint32	idx,
		ossimAdjustmentInfo &	adj
	)		const

Definition at line 671 of file ossimAdjustableParameterInterface.cpp.

References getNumberOfAdjustments(), ossimAdjustmentInfo::setNumberOfAdjustableParameters(), and theAdjustmentList.

{
   adj.setNumberOfAdjustableParameters(0);

   if(idx < getNumberOfAdjustments())
   {
      adj = theAdjustmentList[(int)idx];
   }
}

getAdjustmentDescription() [1/2]

ossimString ossimAdjustableParameterInterface::getAdjustmentDescription

(

)

const

Definition at line 61 of file ossimAdjustableParameterInterface.cpp.

References theAdjustmentList, and theCurrentAdjustment.

{
   if(theAdjustmentList.size())
   {
      return theAdjustmentList[theCurrentAdjustment].getDescription();
   }

   return "";
}

getAdjustmentDescription() [2/2]

ossimString ossimAdjustableParameterInterface::getAdjustmentDescription

(

ossim_uint32

adjustmentIdx

)

const

Returns adjustmentDescription of specific adjustmentInfo.

Definition at line 72 of file ossimAdjustableParameterInterface.cpp.

References theAdjustmentList.

{
   if(adjustmentIdx < theAdjustmentList.size())
   {
      return theAdjustmentList[adjustmentIdx].getDescription();
   }
   return "";
}

getBaseObject() [1/2]

virtual ossimObject* ossimAdjustableParameterInterface::getBaseObject ( )

pure virtual

Implemented in ossimSensorModel, ossimRpcProjection, ossimLocalCorrelationFusion, and ossimSFIMFusion.

Referenced by ossimAutRegUtil::saveAdjustment().

getBaseObject() [2/2]

virtual const ossimObject* ossimAdjustableParameterInterface::getBaseObject ( ) const

pure virtual

Implemented in ossimSensorModel, ossimRpcProjection, ossimLocalCorrelationFusion, and ossimSFIMFusion.

getCurrentAdjustmentIdx()

ossim_uint32 ossimAdjustableParameterInterface::getCurrentAdjustmentIdx

(

)

const

Definition at line 686 of file ossimAdjustableParameterInterface.cpp.

References theCurrentAdjustment.

{
   return theCurrentAdjustment;
}

getNumberOfAdjustableParameters()

ossim_uint32 ossimAdjustableParameterInterface::getNumberOfAdjustableParameters

(

)

const

Definition at line 209 of file ossimAdjustableParameterInterface.cpp.

References theAdjustmentList, and theCurrentAdjustment.

Referenced by ossimPointObservation::addMeasurement(), ossimRpcProjection::buildNormalEquation(), ossimSensorModel::buildNormalEquation(), ossimImageGeometry::computeImageToGroundPartialsWRTAdjParam(), ossimImageGeometry::computeImageToGroundPartialsWRTAdjParams(), computeParameterOffset(), ossimRpcProjection::degreesOfFreedom(), ossimSensorModel::degreesOfFreedom(), getAdjustableParameter(), getParameterCenter(), getParameterDescription(), getParameterLockFlag(), getParameterSigma(), getParameterUnit(), ossimCoarseGridModel::initAdjustableParameters(), ossimRpcModel::initAdjustableParameters(), initChangeFlags(), isParameterLocked(), ossimIpodSensor::loadState(), ossimSkyBoxLearSensor::loadState(), ossimSonomaSensor::loadState(), ossimSensorModel::optimizeFit(), resetAdjustableParameters(), setAdjustableParameter(), setAllChangeFlags(), setParameterCenter(), setParameterDescription(), setParameterLockFlag(), setParameterOffset(), setParameterSigma(), and setParameterUnit().

{
   if(theAdjustmentList.size())
   {
      return theAdjustmentList[theCurrentAdjustment].getNumberOfAdjustableParameters();
   }

   return 0;
}

getNumberOfAdjustments()

ossim_uint32 ossimAdjustableParameterInterface::getNumberOfAdjustments

(

)

const

Definition at line 681 of file ossimAdjustableParameterInterface.cpp.

References theAdjustmentList.

Referenced by findParameterIdxContainingDescription(), findParameterIdxGivenDescription(), getAdjustment(), lockAllParameters(), setAdjustment(), and unlockAllParameters().

{
   return (ossim_uint32)theAdjustmentList.size();
}

getParameterCenter()

double ossimAdjustableParameterInterface::getParameterCenter

(

ossim_uint32

idx

)

const

Definition at line 436 of file ossimAdjustableParameterInterface.cpp.

References getNumberOfAdjustableParameters(), theAdjustmentList, and theCurrentAdjustment.

Referenced by ossimImageGeometry::computeImageToGroundPartialsWRTAdjParam(), and ossimAdjustmentExecutive::updateParameters().

{
   if(!theAdjustmentList.size())
   {
      return 0.0;
   }
   if(idx < theAdjustmentList[theCurrentAdjustment].getNumberOfAdjustableParameters())
   {
      return theAdjustmentList[theCurrentAdjustment].getParameterList()[idx].getCenter();
   }

   return 0.0;
}

getParameterDescription()

ossimString ossimAdjustableParameterInterface::getParameterDescription

(

ossim_uint32

idx

)

const

Definition at line 392 of file ossimAdjustableParameterInterface.cpp.

References getNumberOfAdjustableParameters(), theAdjustmentList, and theCurrentAdjustment.

{
   if(theAdjustmentList.size())
   {
      if(idx < theAdjustmentList[theCurrentAdjustment].getNumberOfAdjustableParameters())
      {
         return theAdjustmentList[theCurrentAdjustment].getParameterList()[idx].getDescription();
      }
   }

   return ossimString("");
}

getParameterLockFlag()

bool ossimAdjustableParameterInterface::getParameterLockFlag

(

ossim_uint32

idx

)

const

Definition at line 534 of file ossimAdjustableParameterInterface.cpp.

References getNumberOfAdjustableParameters(), theAdjustmentList, and theCurrentAdjustment.

{
   if(!theAdjustmentList.size())
   {
      return false;
   }
   if(idx < theAdjustmentList[theCurrentAdjustment].getNumberOfAdjustableParameters())
   {
      return theAdjustmentList[theCurrentAdjustment].getParameterList()[idx].getLockFlag();
   }

   return false;
}

getParameterSigma()

double ossimAdjustableParameterInterface::getParameterSigma

(

ossim_uint32

idx

)

const

Definition at line 327 of file ossimAdjustableParameterInterface.cpp.

References getNumberOfAdjustableParameters(), theAdjustmentList, and theCurrentAdjustment.

{
   if(theAdjustmentList.size())
   {
      if(idx < theAdjustmentList[theCurrentAdjustment].getNumberOfAdjustableParameters())
      {
         return theAdjustmentList[theCurrentAdjustment].getParameterList()[idx].getSigma();
      }
   }

   return 0.0;
}

getParameterUnit()

ossimUnitType ossimAdjustableParameterInterface::getParameterUnit

(

ossim_uint32

idx

)

const

Definition at line 356 of file ossimAdjustableParameterInterface.cpp.

References getNumberOfAdjustableParameters(), OSSIM_UNIT_UNKNOWN, theAdjustmentList, and theCurrentAdjustment.

{
   if(theAdjustmentList.size())
   {
      if(idx < theAdjustmentList[theCurrentAdjustment].getNumberOfAdjustableParameters())
      {
         return theAdjustmentList[theCurrentAdjustment].getParameterList()[idx].getUnit();
      }
   }

   return OSSIM_UNIT_UNKNOWN;
}

hasDirtyAdjustments()

bool ossimAdjustableParameterInterface::hasDirtyAdjustments

(

)

const

Definition at line 709 of file ossimAdjustableParameterInterface.cpp.

References theAdjustmentList.

{
   ossim_uint32 idx = 0;

   for(idx = 0; idx < theAdjustmentList.size(); ++idx)
   {
      if(theAdjustmentList[idx].isDirty())
      {
         return true;
      }
   }

   return false;
}

initAdjustableParameters()

void ossimAdjustableParameterInterface::initAdjustableParameters ( )

virtual

Reimplemented in ossimFcsiModel, ossimRpcModel, ossimSarModel, ossimLandSatModel, ossimplugins::ossimFormosatModel, ossimSonomaSensor, ossimSpot5Model, ossimCoarseGridModel, ossimAdjMapModel, ossimSkyBoxLearSensor, ossimIpodSensor, ossimApplanixEcefModel, ossimSpectraboticsRedEdgeModel, ossimRsmModel, ossimLocalCorrelationFusion, ossimRpcProjection, ossimPpjFrameSensor, ossimApplanixUtmModel, ossimSFIMFusion, ossimAlphaSensor, ossimAlphaSensorHRI, and ossimAlphaSensorHSI.

Definition at line 111 of file ossimAdjustableParameterInterface.cpp.

Referenced by resetAdjustableParameters().

{
}

initChangeFlags()

void ossimAdjustableParameterInterface::initChangeFlags ( )

protected

Initializes the change flags to TRUE.

Initializes the change flags to false.

Definition at line 886 of file ossimAdjustableParameterInterface.cpp.

References getNumberOfAdjustableParameters(), setAllChangeFlags(), and theChangeFlags.

Referenced by copyAdjustment(), newAdjustment(), and setCurrentAdjustment().

{
   // Need to resize the flag list?
   ossim_uint32 num_params = getNumberOfAdjustableParameters();
   if (theChangeFlags.size() != num_params)
      theChangeFlags.resize(num_params);
   setAllChangeFlags(true);
}

isParameterLocked()

bool ossimAdjustableParameterInterface::isParameterLocked

(

ossim_uint32

idx

)

const

Definition at line 507 of file ossimAdjustableParameterInterface.cpp.

References getNumberOfAdjustableParameters(), theAdjustmentList, and theCurrentAdjustment.

Referenced by ossimRpcProjection::degreesOfFreedom(), and ossimSensorModel::degreesOfFreedom().

{
   if(!theAdjustmentList.size())
   {
      return false;
   }
   if(idx < theAdjustmentList[theCurrentAdjustment].getNumberOfAdjustableParameters())
   {
      return theAdjustmentList[theCurrentAdjustment].getParameterList()[idx].getLockFlag();
   }

   return false;

}

keepAdjustment() [1/2]

void ossimAdjustableParameterInterface::keepAdjustment	(	ossim_uint32	idx,
		bool	createCopy
	)

Will copy the adjustment but will set the new center to the applied current center plus the application of the adjustment

Definition at line 171 of file ossimAdjustableParameterInterface.cpp.

References copyAdjustment(), theAdjustmentList, and theCurrentAdjustment.

Referenced by keepAdjustment().

{
    if(!theAdjustmentList.size())
    {
       return;
    }
    if(idx < theAdjustmentList.size())
    {
       if(createCopy)
       {
          copyAdjustment(idx);
       }
       theAdjustmentList[theCurrentAdjustment].keep();
    }
}

keepAdjustment() [2/2]

void ossimAdjustableParameterInterface::keepAdjustment ( bool  createCopy = true )

virtual

Definition at line 188 of file ossimAdjustableParameterInterface.cpp.

References keepAdjustment(), and theCurrentAdjustment.

{
   keepAdjustment(theCurrentAdjustment, createCopy);
}

loadAdjustments()

bool ossimAdjustableParameterInterface::loadAdjustments	(	const ossimKeywordlist &	kwl,
		const ossimString &	prefix = ossimString("")
	)

Definition at line 812 of file ossimAdjustableParameterInterface.cpp.

References ossimKeywordlist::find(), theAdjustmentList, and theCurrentAdjustment.

Referenced by ossimSFIMFusion::loadState(), and ossimLocalCorrelationFusion::loadState().

{
   theAdjustmentList.clear();
   theCurrentAdjustment = 0;

   const char* numberOfAdjustments = kwl.find(prefix, NUMBER_OF_ADJUSTMENTS_KW);
   const char* currentAdjustment   = kwl.find(prefix, CURRENT_ADJUSTMENT_KW);

   if(!numberOfAdjustments)
   {
      numberOfAdjustments = kwl.find(prefix, NUMBER_OF_ADJUSTMENTS_OLD_KW);
   }
   if(!currentAdjustment)
   {
      currentAdjustment = kwl.find(prefix, CURRENT_ADJUSTMENT_OLD_KW);
   }
   if(!numberOfAdjustments) return false;

   int maxdjustments = ossimString(numberOfAdjustments).toInt();

   for(int adjIdx = 0; adjIdx <maxdjustments; ++adjIdx)
   {
      ossimAdjustmentInfo info;
      ossimString adjPrefix = prefix + (ossimString(ADJUSTMENT_PREFIX) + ossimString::toString(adjIdx)+".");

      if(!info.loadState(kwl, adjPrefix))
      {
         return false;
      }
      theAdjustmentList.push_back(info);
   }

   theCurrentAdjustment = ossimString(currentAdjustment).toUInt32();
   initChangeFlags();
   return true;
}

lockAllParameters()

void ossimAdjustableParameterInterface::lockAllParameters

(

ossim_uint32

idxAdjustment

)

Definition at line 558 of file ossimAdjustableParameterInterface.cpp.

References getNumberOfAdjustments(), n, theAdjustmentList, and theCurrentAdjustment.

Referenced by lockAllParametersCurrentAdjustment().

{
   if(idxAdjustment < getNumberOfAdjustments())
   {
      ossim_uint32 idx = 0;
      ossim_uint32 n   = theAdjustmentList[theCurrentAdjustment].getNumberOfAdjustableParameters();

      for(idx = 0; idx < n; ++idx)
      {
         theAdjustmentList[idxAdjustment].getParameterList()[idx].setLockFlag(true);
      }
   }
}

lockAllParametersCurrentAdjustment()

void ossimAdjustableParameterInterface::lockAllParametersCurrentAdjustment

(

)

Definition at line 548 of file ossimAdjustableParameterInterface.cpp.

References lockAllParameters(), and theCurrentAdjustment.

{
   lockAllParameters(theCurrentAdjustment);
}

newAdjustment()

void ossimAdjustableParameterInterface::newAdjustment

(

ossim_uint32

numberOfParameters = 0

)

Definition at line 39 of file ossimAdjustableParameterInterface.cpp.

References initChangeFlags(), theAdjustmentList, and theCurrentAdjustment.

Referenced by ossimAdjMapModel::initAdjustableParameters(), and resizeAdjustableParameterArray().

{
   theAdjustmentList.push_back(ossimAdjustmentInfo());
   if(numberOfParameters > 0)
   {
      theAdjustmentList[theAdjustmentList.size()-1].setNumberOfAdjustableParameters(numberOfParameters);
      theAdjustmentList[theAdjustmentList.size()-1].setDescription("Initial adjustment");
   }

   theCurrentAdjustment = (ossim_uint32) theAdjustmentList.size() - 1;
   initChangeFlags();
}

operator=()

const ossimAdjustableParameterInterface & ossimAdjustableParameterInterface::operator=

(

const ossimAdjustableParameterInterface &

rhs

)

Definition at line 193 of file ossimAdjustableParameterInterface.cpp.

References theAdjustmentList, and theCurrentAdjustment.

Referenced by ossimSensorModel::operator=().

{
   if (this != &rhs)
   {
      theAdjustmentList    = rhs.theAdjustmentList;
      theCurrentAdjustment = rhs.theCurrentAdjustment;
   }
   return *this;
}

paramChanged()

bool ossimAdjustableParameterInterface::paramChanged ( ossim_uint32  param_idx ) const

inlineprotected

Returns true if specified parameter has been modified since last setAllChangeFlag(false) call.

Definition at line 137 of file ossimAdjustableParameterInterface.h.

{ return theChangeFlags[param_idx]; }

print()

std::ostream & ossimAdjustableParameterInterface::print

(

std::ostream &

out

)

const

Dumps the currently active adjustment to ostream.

Definition at line 858 of file ossimAdjustableParameterInterface.cpp.

References theAdjustmentList, and theCurrentAdjustment.

{
   if (theCurrentAdjustment < theAdjustmentList.size())
   {
      out <<"\nossimAdjustableParameterInterface base-class current adjustment index: "
         << theCurrentAdjustment << "\n" << theAdjustmentList[theCurrentAdjustment] << std::ends;
   }
   else
   {
      out << "No adjustments specified." << std::endl;
   }
   return out;
}

removeAllAdjustments()

void ossimAdjustableParameterInterface::removeAllAdjustments

(

)

Definition at line 203 of file ossimAdjustableParameterInterface.cpp.

References theAdjustmentList, and theCurrentAdjustment.

Referenced by ossimAdjMapModel::initAdjustableParameters().

{
   theAdjustmentList.clear();
   theCurrentAdjustment = 0;
}

resetAdjustableParameters()

void ossimAdjustableParameterInterface::resetAdjustableParameters

(

bool

notify = false

)

Definition at line 115 of file ossimAdjustableParameterInterface.cpp.

References adjustableParametersChanged(), copyAdjustment(), eraseAdjustment(), getNumberOfAdjustableParameters(), initAdjustableParameters(), setCurrentAdjustment(), theAdjustmentList, and theCurrentAdjustment.

{
    if(!theAdjustmentList.size())
    {
       return;
    }

    ossim_uint32 saveCurrent = theCurrentAdjustment;
    copyAdjustment();
    initAdjustableParameters();
    ossim_uint32 numberOfAdjustables = getNumberOfAdjustableParameters();
    ossim_uint32 idx = 0;

    for(idx = 0; idx < numberOfAdjustables; ++idx)
    {
       theAdjustmentList[saveCurrent].getParameterList()[idx].setParameter(theAdjustmentList[theAdjustmentList.size()-1].getParameterList()[idx].getParameter());
    }

    setCurrentAdjustment(saveCurrent);

    eraseAdjustment((ossim_uint32)theAdjustmentList.size()-1, false);

    if(notify)
    {
       adjustableParametersChanged();
    }
}

resizeAdjustableParameterArray()

void ossimAdjustableParameterInterface::resizeAdjustableParameterArray

(

ossim_uint32

numberOfParameters

)

Definition at line 628 of file ossimAdjustableParameterInterface.cpp.

References newAdjustment(), theAdjustmentList, and theCurrentAdjustment.

Referenced by ossimCoarseGridModel::buildGrid(), ossimSFIMFusion::initAdjustableParameters(), ossimApplanixUtmModel::initAdjustableParameters(), ossimRpcProjection::initAdjustableParameters(), ossimLocalCorrelationFusion::initAdjustableParameters(), ossimSpectraboticsRedEdgeModel::initAdjustableParameters(), ossimApplanixEcefModel::initAdjustableParameters(), ossimIpodSensor::initAdjustableParameters(), ossimSkyBoxLearSensor::initAdjustableParameters(), ossimSonomaSensor::initAdjustableParameters(), and ossimRpcModel::initAdjustableParameters().

{
   if(!theAdjustmentList.size())
   {
      newAdjustment(numberOfParameters);
      return;
   }

   theAdjustmentList[theCurrentAdjustment].setNumberOfAdjustableParameters(numberOfParameters);
}

saveAdjustments()

bool ossimAdjustableParameterInterface::saveAdjustments	(	ossimKeywordlist &	kwl,
		const ossimString &	prefix = ossimString("")
	)		const

Save all adjustments to the KWL file.

Definition at line 727 of file ossimAdjustableParameterInterface.cpp.

References ossimKeywordlist::add(), and theAdjustmentList.

Referenced by ossimSFIMFusion::saveState(), and ossimLocalCorrelationFusion::saveState().

{
   // Nothing to do if no adjustments defined (okramer 04Sep2005)
   if (theAdjustmentList.size() == 0)
      return true;

   // A problem: There may have been adjustments written to the KWL by another process that this
   // instance doesn't know about. So we need to load in all adjustments present in the KWL and
   // replace
   kwl.add(prefix,
           NUMBER_OF_ADJUSTMENTS_KW,
           (ossim_uint32) theAdjustmentList.size(),
           true);
   kwl.add(prefix,
           CURRENT_ADJUSTMENT_KW,
           (int)theCurrentAdjustment,
           true);

   for(ossim_uint32 adjIdx = 0; adjIdx < theAdjustmentList.size(); ++adjIdx)
   {
      ossimString adjPrefix = prefix + (ossimString(ADJUSTMENT_PREFIX) + ossimString::toString(adjIdx)+".");

      theAdjustmentList[adjIdx].saveState(kwl,
                                          adjPrefix);
   }

   return true;
}

saveCurrentAdjustmentOnly()

void ossimAdjustableParameterInterface::saveCurrentAdjustmentOnly ( ossimKeywordlist &  kwl, const ossimString &  prefix = ossimString("")  )

virtual

Saves the current active adjustment to the KWL file.

If an adjustment of the same description already exists in the KWL, it is replaced by the current adjustment. The object is synced up with contents of KWL.

If an adjustment of the same description already exists in the KWL, it is replaced by the current adjustment.

Definition at line 761 of file ossimAdjustableParameterInterface.cpp.

References ossimKeywordlist::find(), getAdjustment(), and ossimAdjustmentInfo::getDescription().

{
   // Fetch current adjustment:
   ossimAdjustmentInfo adjTosave;
   getAdjustment(adjTosave);
   ossimString currentLabel = adjTosave.getDescription();

   // Fetch the number of adjustments specified in the KWL:
   int numberOfAdjustments = 0;
   const char* value = kwl.find(prefix, NUMBER_OF_ADJUSTMENTS_KW);
   if (value)
   {
      numberOfAdjustments = atoi(value);
   }

   // Loop to read the descriptions of each adjustment in the KWL to see if a match exists. If
   // we reach the end, insert it there:
   // int saved_adj_idx;
   ossimAdjustmentInfo adjInfo;
   int i = 0;
   while (true)
   {
      ossimString adjPrefix = prefix+(ossimString(ADJUSTMENT_PREFIX)+ossimString::toString(i)+".");
      if (i < numberOfAdjustments)
      {
         adjInfo.loadState(kwl, adjPrefix);
      }

      if ((i == numberOfAdjustments) || (adjInfo.getDescription() == currentLabel))
      {
         // match found or end of list, insert the  new adjustment at this position:
         adjTosave.saveState(kwl, adjPrefix);
         // saved_adj_idx = i;

         // Need to bump the number of adjustments by one if we added a new one:
         if (i == numberOfAdjustments)
         {
            kwl.add(prefix, NUMBER_OF_ADJUSTMENTS_KW, ++numberOfAdjustments);
         }

         break;
      }
      ++i;
   }

   //loadAdjustments(kwl, prefix);
   //setCurrentAdjustment(saved_adj_idx);
}

setAdjustableParameter() [1/2]

void ossimAdjustableParameterInterface::setAdjustableParameter ( ossim_uint32  idx, double  value, bool  notify = false  )

virtual

Definition at line 309 of file ossimAdjustableParameterInterface.cpp.

References adjustableParametersChanged(), getNumberOfAdjustableParameters(), theAdjustmentList, theChangeFlags, and theCurrentAdjustment.

Referenced by ossimRpcProjection::getForwardDeriv(), ossimSensorModel::getForwardDeriv(), ossimRpcProjection::getInverseDeriv(), ossimSensorModel::getInverseDeriv(), ossimApplanixUtmModel::initAdjustableParameters(), ossimSpectraboticsRedEdgeModel::initAdjustableParameters(), ossimApplanixEcefModel::initAdjustableParameters(), ossimIpodSensor::initAdjustableParameters(), ossimSkyBoxLearSensor::initAdjustableParameters(), ossimAdjMapModel::initAdjustableParameters(), ossimSonomaSensor::initAdjustableParameters(), ossimRpcModel::initAdjustableParameters(), and ossimSensorModel::optimizeFit().

{
   if(!theAdjustmentList.size())
   {
      return;
   }
   if(idx < theAdjustmentList[theCurrentAdjustment].getNumberOfAdjustableParameters())
   {
      theAdjustmentList[theCurrentAdjustment].getParameterList()[idx].setParameter(value);
      theChangeFlags[idx] = true;

      if(notify)
      {
         adjustableParametersChanged();
      }
   }
}

setAdjustableParameter() [2/2]

void ossimAdjustableParameterInterface::setAdjustableParameter ( ossim_uint32  idx, double  value, double  sigma, bool  notify = false  )

virtual

Definition at line 290 of file ossimAdjustableParameterInterface.cpp.

References adjustableParametersChanged(), getNumberOfAdjustableParameters(), theAdjustmentList, theChangeFlags, and theCurrentAdjustment.

{
   if(!theAdjustmentList.size())
   {
      return;
   }
   if(idx < theAdjustmentList[theCurrentAdjustment].getNumberOfAdjustableParameters())
   {
      theAdjustmentList[theCurrentAdjustment].getParameterList()[idx].setParameter(value);
      theAdjustmentList[theCurrentAdjustment].getParameterList()[idx].setSigma(sigma);
      theChangeFlags[idx] = true;
      if(notify)
      {
         adjustableParametersChanged();
      }
   }

}

setAdjustment() [1/2]

void ossimAdjustableParameterInterface::setAdjustment	(	const ossimAdjustmentInfo &	adj,
		bool	notify = false
	)

Definition at line 639 of file ossimAdjustableParameterInterface.cpp.

References theCurrentAdjustment.

Referenced by ossimCoarseGridModel::initAdjustableParameters(), and ossimAutRegUtil::saveAdjustment().

{
   setAdjustment(theCurrentAdjustment, adj, notify);
}

setAdjustment() [2/2]

void ossimAdjustableParameterInterface::setAdjustment	(	ossim_uint32	idx,
		const ossimAdjustmentInfo &	adj,
		bool	notify = false
	)

Definition at line 644 of file ossimAdjustableParameterInterface.cpp.

References adjustableParametersChanged(), getNumberOfAdjustments(), and theAdjustmentList.

{
   if(idx < getNumberOfAdjustments())
   {
      theAdjustmentList[(int)idx] = adj;
      if(notify)
      {
         adjustableParametersChanged();
      }
   }
}

setAdjustmentDescription()

void ossimAdjustableParameterInterface::setAdjustmentDescription

(

const ossimString &

description

)

Definition at line 52 of file ossimAdjustableParameterInterface.cpp.

References theAdjustmentList, and theCurrentAdjustment.

Referenced by ossimAdjMapModel::initAdjustableParameters(), and ossimAutRegUtil::saveAdjustment().

{
   if(!theAdjustmentList.size())
   {
      return;
   }
   theAdjustmentList[theCurrentAdjustment].setDescription(description);
}

setAllChangeFlags()

void ossimAdjustableParameterInterface::setAllChangeFlags ( bool  areChanged )

protected

Sets all the change flags to the boolean indicated to indicate parameters are changed (TRUE) or not (FALSE).

Definition at line 876 of file ossimAdjustableParameterInterface.cpp.

References getNumberOfAdjustableParameters(), and theChangeFlags.

Referenced by initChangeFlags().

{
   ossim_uint32 num_params = getNumberOfAdjustableParameters();
   for (unsigned int i=0; i<num_params; ++i)
      theChangeFlags[i] = areChanged;
}

setAllDirtyFlag()

void ossimAdjustableParameterInterface::setAllDirtyFlag

(

bool

flag = true

)

Definition at line 699 of file ossimAdjustableParameterInterface.cpp.

References theAdjustmentList.

{
   ossim_uint32 idx = 0;

   for(idx = 0; idx < theAdjustmentList.size(); ++idx)
   {
      theAdjustmentList[idx].setDirtyFlag(flag);
   }
}

setCurrentAdjustment() [1/2]

void ossimAdjustableParameterInterface::setCurrentAdjustment	(	ossim_uint32	adjustmentIndex,
		bool	notify = false
	)

Definition at line 81 of file ossimAdjustableParameterInterface.cpp.

References adjustableParametersChanged(), initChangeFlags(), theAdjustmentList, and theCurrentAdjustment.

Referenced by resetAdjustableParameters(), and setCurrentAdjustment().

{
   if(adjustmentIdx < theAdjustmentList.size())
   {
      theCurrentAdjustment = adjustmentIdx;
      initChangeFlags();
      if(notify)
      {
         adjustableParametersChanged();
      }
   }
}

setCurrentAdjustment() [2/2]

bool ossimAdjustableParameterInterface::setCurrentAdjustment	(	const ossimString &	description,
		bool	notify = false
	)

Sets the current adjustment to the adjustment with a matching description.

Returns true if successfully matched.

If Returns TRUE if successfully matched.

Definition at line 98 of file ossimAdjustableParameterInterface.cpp.

References getDescription(), setCurrentAdjustment(), and theAdjustmentList.

{
   for (unsigned int i=0; i<theAdjustmentList.size(); i++)
   {
      if (theAdjustmentList[i].getDescription() == description)
      {
         setCurrentAdjustment(i, notify);
         return true;
      }
   }
   return false;
}

setDirtyFlag()

void ossimAdjustableParameterInterface::setDirtyFlag

(

bool

flag = true

)

Definition at line 691 of file ossimAdjustableParameterInterface.cpp.

References theAdjustmentList, and theCurrentAdjustment.

{
   if(theAdjustmentList.size() > 0)
   {
      theAdjustmentList[theCurrentAdjustment].setDirtyFlag(flag);
   }
}

setParameterCenter()

void ossimAdjustableParameterInterface::setParameterCenter	(	ossim_uint32	idx,
		double	center,
		bool	notify = false
	)

Definition at line 418 of file ossimAdjustableParameterInterface.cpp.

References adjustableParametersChanged(), getNumberOfAdjustableParameters(), theAdjustmentList, and theCurrentAdjustment.

Referenced by ossimImageGeometry::computeImageToGroundPartialsWRTAdjParam(), ossimAdjMapModel::initAdjustableParameters(), and ossimAdjustmentExecutive::updateParameters().

{
   if(!theAdjustmentList.size())
   {
      return;
   }

   if(idx < theAdjustmentList[theCurrentAdjustment].getNumberOfAdjustableParameters())
   {
     theAdjustmentList[theCurrentAdjustment].getParameterList()[idx].setCenter(center);

     if(notify)
     {
       adjustableParametersChanged();
     }
   }
}

setParameterDescription()

void ossimAdjustableParameterInterface::setParameterDescription	(	ossim_uint32	idx,
		const ossimString &	descrption
	)

Definition at line 405 of file ossimAdjustableParameterInterface.cpp.

References getNumberOfAdjustableParameters(), theAdjustmentList, and theCurrentAdjustment.

Referenced by ossimApplanixUtmModel::initAdjustableParameters(), ossimSpectraboticsRedEdgeModel::initAdjustableParameters(), ossimApplanixEcefModel::initAdjustableParameters(), ossimIpodSensor::initAdjustableParameters(), ossimSkyBoxLearSensor::initAdjustableParameters(), ossimAdjMapModel::initAdjustableParameters(), ossimSonomaSensor::initAdjustableParameters(), and ossimRpcModel::initAdjustableParameters().

{
   if(!theAdjustmentList.size())
   {
      return;
   }
   if(idx < theAdjustmentList[theCurrentAdjustment].getNumberOfAdjustableParameters())
   {
      theAdjustmentList[theCurrentAdjustment].getParameterList()[idx].setDescription(description);
   }
}

setParameterLockFlag()

void ossimAdjustableParameterInterface::setParameterLockFlag	(	ossim_uint32	idxParam,
		bool	flag
	)

Definition at line 522 of file ossimAdjustableParameterInterface.cpp.

References getNumberOfAdjustableParameters(), theAdjustmentList, and theCurrentAdjustment.

{
   if(!theAdjustmentList.size())
   {
      return;
   }
   if(idxParam < theAdjustmentList[theCurrentAdjustment].getNumberOfAdjustableParameters())
   {
      theAdjustmentList[theCurrentAdjustment].getParameterList()[idxParam].setLockFlag(flag);
   }
}

setParameterOffset()

void ossimAdjustableParameterInterface::setParameterOffset	(	ossim_uint32	idx,
		ossim_float64	value,
		bool	notify = false
	)

Definition at line 587 of file ossimAdjustableParameterInterface.cpp.

References adjustableParametersChanged(), getNumberOfAdjustableParameters(), theAdjustmentList, and theCurrentAdjustment.

Referenced by ossimSFIMFusion::initialize(), and ossimSFIMFusion::setProperty().

{
//    double center   = getParameterCenter(idx);
//    double sigma    = getParameterSigma(idx);
//    double minValue = center - sigma;
//    double maxValue = center + sigma;
//    double x = 0.0;

//    if(sigma != 0.0)
//    {
//       x = (value - center)/sigma;

//       value = center + x*sigma;

//       if(value < minValue)
//       {
//          x = -1;
//       }
//       else if(value >maxValue)
//       {
//          x = 1.0;
//       }
//       setAdjustableParameter(idx, x, false);
//    }

   if(!theAdjustmentList.size())
   {
      return;
   }
   if(idx < theAdjustmentList[theCurrentAdjustment].getNumberOfAdjustableParameters())
   {
      theAdjustmentList[theCurrentAdjustment].getParameterList()[idx].setOffset(value);
      if(notify)
      {
         adjustableParametersChanged();
      }
   }
}

setParameterSigma()

void ossimAdjustableParameterInterface::setParameterSigma	(	ossim_uint32	idx,
		double	value,
		bool	notify = false
	)

Definition at line 340 of file ossimAdjustableParameterInterface.cpp.

References adjustableParametersChanged(), getNumberOfAdjustableParameters(), theAdjustmentList, and theCurrentAdjustment.

Referenced by ossimApplanixUtmModel::initAdjustableParameters(), ossimSpectraboticsRedEdgeModel::initAdjustableParameters(), ossimApplanixEcefModel::initAdjustableParameters(), ossimIpodSensor::initAdjustableParameters(), ossimSkyBoxLearSensor::initAdjustableParameters(), and ossimSonomaSensor::initAdjustableParameters().

{
   if(!theAdjustmentList.size())
   {
      return;
   }
   if(idx < theAdjustmentList[theCurrentAdjustment].getNumberOfAdjustableParameters())
   {
      theAdjustmentList[theCurrentAdjustment].getParameterList()[idx].setSigma(value);
      if(notify)
      {
         adjustableParametersChanged();
      }
   }
}

setParameterUnit() [1/2]

void ossimAdjustableParameterInterface::setParameterUnit	(	ossim_uint32	idx,
		ossimUnitType	unit
	)

Definition at line 369 of file ossimAdjustableParameterInterface.cpp.

References getNumberOfAdjustableParameters(), theAdjustmentList, and theCurrentAdjustment.

Referenced by ossimApplanixUtmModel::initAdjustableParameters(), ossimSpectraboticsRedEdgeModel::initAdjustableParameters(), ossimApplanixEcefModel::initAdjustableParameters(), ossimIpodSensor::initAdjustableParameters(), ossimSkyBoxLearSensor::initAdjustableParameters(), and ossimSonomaSensor::initAdjustableParameters().

{
   if(theAdjustmentList.size())
   {
      if(idx < theAdjustmentList[theCurrentAdjustment].getNumberOfAdjustableParameters())
      {
         theAdjustmentList[theCurrentAdjustment].getParameterList()[idx].setUnit(unit);
      }
   }
}

setParameterUnit() [2/2]

void ossimAdjustableParameterInterface::setParameterUnit	(	ossim_uint32	idx,
		const ossimString &	unit
	)

Definition at line 380 of file ossimAdjustableParameterInterface.cpp.

References getNumberOfAdjustableParameters(), ossimUnitTypeLut::instance(), theAdjustmentList, and theCurrentAdjustment.

{
   if(theAdjustmentList.size())
   {
      if(idx < theAdjustmentList[theCurrentAdjustment].getNumberOfAdjustableParameters())
      {
         theAdjustmentList[theCurrentAdjustment].getParameterList()[idx].setUnit((ossimUnitType)ossimUnitTypeLut::instance()->getEntryNumber(unit));
      }
   }
}

unlockAllParameters()

void ossimAdjustableParameterInterface::unlockAllParameters

(

ossim_uint32

idxAdjustment

)

Definition at line 572 of file ossimAdjustableParameterInterface.cpp.

References getNumberOfAdjustments(), n, theAdjustmentList, and theCurrentAdjustment.

Referenced by unlockAllParametersCurrentAdjustment().

{
   if(idxAdjustment < getNumberOfAdjustments())
   {
      ossim_uint32 idx = 0;
      ossim_uint32 n   = theAdjustmentList[theCurrentAdjustment].getNumberOfAdjustableParameters();

      for(idx = 0; idx < n; ++idx)
      {
         theAdjustmentList[idxAdjustment].getParameterList()[idx].setLockFlag(false);
      }
   }
}

unlockAllParametersCurrentAdjustment()

void ossimAdjustableParameterInterface::unlockAllParametersCurrentAdjustment

(

)

Definition at line 553 of file ossimAdjustableParameterInterface.cpp.

References theCurrentAdjustment, and unlockAllParameters().

{
   unlockAllParameters(theCurrentAdjustment);
}

updateModel()

virtual void ossimAdjustableParameterInterface::updateModel ( )

inlinevirtual

Provides the derived adjustable class an opportunity to update its state after a param change.

Reimplemented in ossimSensorModel, ossimRpcModel, ossimFcsiModel, ossimSarModel, ossimLandSatModel, ossimplugins::ossimFormosatModel, ossimSpot5Model, ossimAdjMapModel, ossimSonomaSensor, ossimRsmModel, ossimSkyBoxLearSensor, ossimIpodSensor, ossimApplanixEcefModel, ossimPpjFrameSensor, ossimSpectraboticsRedEdgeModel, ossimApplanixUtmModel, ossimAlphaSensor, ossimAlphaSensorHRI, and ossimAlphaSensorHSI.

Definition at line 130 of file ossimAdjustableParameterInterface.h.

Referenced by ossimSensorModel::adjustableParametersChanged().

{}

Member Data Documentation

theAdjustmentList

std::vector<ossimAdjustmentInfo> ossimAdjustableParameterInterface::theAdjustmentList

private

Definition at line 148 of file ossimAdjustableParameterInterface.h.

Referenced by addAdjustment(), computeParameterOffset(), copyAdjustment(), eraseAdjustment(), findParameterIdxContainingDescription(), findParameterIdxGivenDescription(), getAdjustableParameter(), getAdjustment(), getAdjustmentDescription(), getNumberOfAdjustableParameters(), getNumberOfAdjustments(), getParameterCenter(), getParameterDescription(), getParameterLockFlag(), getParameterSigma(), getParameterUnit(), hasDirtyAdjustments(), isParameterLocked(), keepAdjustment(), loadAdjustments(), lockAllParameters(), newAdjustment(), operator=(), print(), removeAllAdjustments(), resetAdjustableParameters(), resizeAdjustableParameterArray(), saveAdjustments(), setAdjustableParameter(), setAdjustment(), setAdjustmentDescription(), setAllDirtyFlag(), setCurrentAdjustment(), setDirtyFlag(), setParameterCenter(), setParameterDescription(), setParameterLockFlag(), setParameterOffset(), setParameterSigma(), setParameterUnit(), and unlockAllParameters().

theChangeFlags

std::vector<bool> ossimAdjustableParameterInterface::theChangeFlags

private

Definition at line 147 of file ossimAdjustableParameterInterface.h.

Referenced by initChangeFlags(), setAdjustableParameter(), and setAllChangeFlags().

theCurrentAdjustment

ossim_uint32 ossimAdjustableParameterInterface::theCurrentAdjustment

private

Definition at line 149 of file ossimAdjustableParameterInterface.h.

Referenced by computeParameterOffset(), copyAdjustment(), eraseAdjustment(), findParameterIdxContainingDescription(), findParameterIdxGivenDescription(), getAdjustableParameter(), getAdjustment(), getAdjustmentDescription(), getCurrentAdjustmentIdx(), getNumberOfAdjustableParameters(), getParameterCenter(), getParameterDescription(), getParameterLockFlag(), getParameterSigma(), getParameterUnit(), isParameterLocked(), keepAdjustment(), loadAdjustments(), lockAllParameters(), lockAllParametersCurrentAdjustment(), newAdjustment(), operator=(), print(), removeAllAdjustments(), resetAdjustableParameters(), resizeAdjustableParameterArray(), setAdjustableParameter(), setAdjustment(), setAdjustmentDescription(), setCurrentAdjustment(), setDirtyFlag(), setParameterCenter(), setParameterDescription(), setParameterLockFlag(), setParameterOffset(), setParameterSigma(), setParameterUnit(), unlockAllParameters(), and unlockAllParametersCurrentAdjustment().

---

The documentation for this class was generated from the following files:

• ossimAdjustableParameterInterface.h
• ossimAdjustableParameterInterface.cpp
