This is a 2 color view of the input. More...

#include <ossimTwoColorView.h>

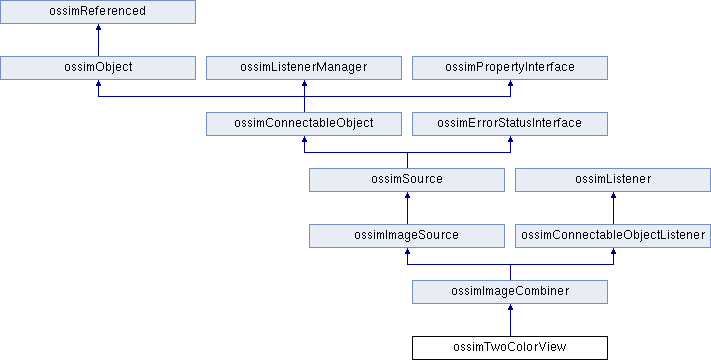

Inheritance diagram for ossimTwoColorView:

Public Types
enum	ossimTwoColorMultiViewOutputSource { UNKNOWN = 0, MIN = 1, OLD = 2, NEW = 3 }
	Enumerations for mapping inputs to red, green and blue output channels. More...

Public Types inherited from ossimConnectableObject
enum	ossimConnectableObjectDirectionType { CONNECTABLE_DIRECTION_NONE = 0, CONNECTABLE_DIRECTION_INPUT = 1, CONNECTABLE_DIRECTION_OUTPUT = 2 }

typedef std::vector< ossimRefPtr< ossimConnectableObject > >	ConnectableObjectList

Public Member Functions
	ossimTwoColorView ()

virtual ossim_uint32	getNumberOfOutputBands () const
	Returns the number of bands in a tile returned from this TileSource. More...

virtual ossimRefPtr< ossimImageData >	getTile (const ossimIrect &rect, ossim_uint32 resLevel=0)

ossimScalarType	getOutputScalarType () const
	This will be used to query the output pixel type of the tile source. More...

double	getNullPixelValue (ossim_uint32 band) const
	Each band has a null pixel associated with it. More...

double	getMinPixelValue (ossim_uint32 band) const
	Returns the min pixel of the band. More...

double	getMaxPixelValue (ossim_uint32 band) const
	Returns the max pixel of the band. More...

void	setBandIndexMapping (ossim_uint32 oldInputBandIndex, ossim_uint32 newInputBandIndex, ossimTwoColorMultiViewOutputSource redOutputSource, ossimTwoColorMultiViewOutputSource grnOutputSource, ossimTwoColorMultiViewOutputSource bluOutputSource)
	Sets which bands to use from inputs, and which inputs to use for output red, green and blue channels. More...

virtual void	initialize ()

Public Member Functions inherited from ossimImageCombiner
	ossimImageCombiner ()

	ossimImageCombiner (ossimObject *owner, int numberOfInputs, int numberOfOutputs, bool inputListIsFixedFlag, bool outputListIsFixedFlag)

	ossimImageCombiner (ossimConnectableObject::ConnectableObjectList &inputSources)

virtual ossimIrect	getBoundingRect (ossim_uint32 resLevel=0) const
	This will return the bounding rect of the source. More...

virtual bool	loadState (const ossimKeywordlist &kwl, const char *prefix=NULL)
	Method to the load (recreate) the state of an object from a keyword list. More...

virtual bool	saveState (ossimKeywordlist &kwl, const char *prefix=NULL) const
	Method to save the state of an object to a keyword list. More...

virtual void	updateRects ()
	This will go through and precompute the bounding rects of each input image. More...

virtual ossim_uint32	getNumberOfInputBands () const
	Returns the number of bands available from the input. More...

virtual ossim_uint32	getTileWidth () const
	Returns the default processing tile width. More...

virtual ossim_uint32	getTileHeight () const
	Returns the default processing tile height. More...

virtual ossim_uint32	getNumberOfOverlappingImages (const ossimIrect &rect, ossim_uint32 resLevel=0) const
	Used to retrieve the number of overlapping images withint the given rect. More...

virtual void	getOverlappingImages (std::vector< ossim_uint32 > &result, const ossimIrect &rect, ossim_uint32 resLevel=0) const
	Used to populate the result with the index of the overlapping images. More...

virtual ossimRefPtr< ossimImageData >	getNextTile (ossim_uint32 &returnedIdx, const ossim_uint32 startIdx, const ossimIrect &tileRect, ossim_uint32 resLevel=0)

virtual ossimRefPtr< ossimImageData >	getNextTile (ossim_uint32 &returnedIdx, const ossimIrect &tileRect, ossim_uint32 resLevel=0)

virtual bool	getNextTile (ossim_uint32 &returnedIdx, const ossim_uint32 startIdx, ossimImageData *tile, ossim_uint32 resLevel=0)

virtual ossimRefPtr< ossimImageData >	getNextNormTile (ossim_uint32 &returnedIdx, const ossim_uint32 index, const ossimIrect &tileRect, ossim_uint32 resLevel=0)

virtual ossimRefPtr< ossimImageData >	getNextNormTile (ossim_uint32 &returnedIdx, const ossimIrect &tileRect, ossim_uint32 resLevel=0)

virtual bool	canConnectMyInputTo (ossim_int32 inputIndex, const ossimConnectableObject *object) const
	required to be overriden by derived classes More...

virtual void	connectInputEvent (ossimConnectionEvent &event)

virtual void	disconnectInputEvent (ossimConnectionEvent &event)

virtual void	propertyEvent (ossimPropertyEvent &event)

virtual void	refreshEvent (ossimRefreshEvent &event)

virtual bool	hasDifferentInputs () const

Public Member Functions inherited from ossimImageSource
	ossimImageSource (ossimObject *owner=0)

	ossimImageSource (ossimObject *owner, ossim_uint32 inputListSize, ossim_uint32 outputListSize, bool inputListIsFixedFlag=true, bool outputListIsFixedFlag=true)

virtual	~ossimImageSource ()

virtual ossimRefPtr< ossimImageData >	getTile (const ossimIpt &origin, ossim_uint32 resLevel=0)

virtual bool	getTile (ossimImageData *result, ossim_uint32 resLevel=0)
	Method to get a tile. More...

virtual ossimObject *	getObject ()
	For RTTI support. More...

virtual const ossimObject *	getObject () const
	For RTTI support. More...

virtual void	getDecimationFactor (ossim_uint32 resLevel, ossimDpt &result) const
	Will return the decimation factor for the given resolution level. More...

virtual void	getDecimationFactors (std::vector< ossimDpt > &decimations) const
	Will return an array of all decimations for each resolution level. More...

virtual ossim_uint32	getNumberOfDecimationLevels () const
	Will return the number of resolution levels. More...

virtual void	getOutputBandList (std::vector< ossim_uint32 > &bandList) const
	Initializes bandList. More...

virtual void	getBoundingRect (ossimIrect &rect, ossim_uint32 resLevel=0) const
	Gets the bounding rectangle of the source. More...

virtual void	getValidImageVertices (std::vector< ossimIpt > &validVertices, ossimVertexOrdering ordering=OSSIM_CLOCKWISE_ORDER, ossim_uint32 resLevel=0) const
	ordering specifies how the vertices should be arranged. More...

virtual ossimRefPtr< ossimImageGeometry >	getImageGeometry ()
	Returns the image geometry object associated with this tile source or NULL if not defined. More...

virtual void	setImageGeometry (const ossimImageGeometry *geom)
	Default implementation sets geometry of the first input to the geometry specified. More...

virtual void	saveImageGeometry () const
	Default method to call input's saveImageGeometry. More...

virtual void	saveImageGeometry (const ossimFilename &geometry_file) const
	Default method to call input's saveImageGeometry. More...

virtual ossimRefPtr< ossimProperty >	getProperty (const ossimString &name) const

virtual void	setProperty (ossimRefPtr< ossimProperty > property)

virtual void	getPropertyNames (std::vector< ossimString > &propertyNames) const

virtual bool	isIndexedData () const

Public Member Functions inherited from ossimSource
	ossimSource (ossimObject *owner=0)

	ossimSource (ossimObject *owner, ossim_uint32 inputListSize, ossim_uint32 outputListSize, bool inputListIsFixedFlag=true, bool outputListIsFixedFlag=true)

virtual	~ossimSource ()

virtual bool	isSourceEnabled () const

virtual void	enableSource ()

virtual void	disableSource ()

virtual bool	getEnableFlag () const

virtual void	setEnableFlag (bool flag)

virtual bool	isInitialized () const

virtual void	setInitializedFlag (bool flag)

virtual std::ostream &	print (std::ostream &out) const
	Outputs theErrorStatus as an ossimErrorCode and an ossimString. More...

Public Member Functions inherited from ossimConnectableObject
	ossimConnectableObject (ossimObject *owner=0)
	Base constructor of this object. More...

	ossimConnectableObject (ossimObject *owner, ossim_int32 inputListSize, ossim_int32 outputListSize, bool inputListIsFixedFlag=true, bool outputListIsFixedFlag=true)

virtual	~ossimConnectableObject ()

void	setId (const ossimId &id)
	All connectable objects will have id's. More...

const ossimId &	getId () const
	Will allow us to get this object's id. More...

const ossimObject *	getOwner () const
	Fetches the current owner, most likely a container but not limited to one. More...

virtual void	changeOwner (ossimObject *owner)
	Permits changing the object's owner. More...

virtual void	setDescription (const ossimString &description)

virtual ossimString	getDescription () const

virtual bool	isConnected (ossimConnectableObjectDirectionType direction=CONNECTABLE_DIRECTION_INPUT) const
	will check the direction specified to see if all slots are full. More...

	OSSIM_DEPRECATE_METHOD (virtual ossimConnectableObject *findConnectableObject(const ossimId &id))

	OSSIM_DEPRECATE_METHOD (virtual ossimConnectableObject *findObjectOfType(RTTItypeid typeId, ossimConnectableObjectDirectionType directionType, bool recurse=true))

	OSSIM_DEPRECATE_METHOD (virtual ossimConnectableObject *findObjectOfType(const ossimString &obj, ossimConnectableObjectDirectionType directionType, bool recurse=true))

	OSSIM_DEPRECATE_METHOD (virtual ossimConnectableObject *findInputObjectOfType(const ossimString &className))

virtual ossim_int32	findInputIndex (const ossimConnectableObject *object)
	Return a valid index of the input list if the passed in object is found else return -1. More...

virtual ossim_int32	findInputIndex (const ossimId &id)
	Return a valid index of the input list if the passed id is found else return -1. More...

virtual ossim_int32	findOutputIndex (const ossimConnectableObject *object)
	Return a valid index of the output list if the passed in object is found else return -1. More...

virtual ossim_int32	findOutputIndex (const ossimId &id)
	Return a valid index of the output list if the passed in object is found else return -1. More...

virtual ossim_int32	getMyInputIndexToConnectTo (ossimConnectableObject *object) const
	Should return the first available index to connect to. More...

virtual ossim_int32	getMyOutputIndexToConnectTo (ossimConnectableObject *object) const
	Should return the first available index to connect to. More...

virtual bool	canConnectMyOutputTo (ossim_int32 myOutputIndex, const ossimConnectableObject *object) const
	default implementation is to allow anyone to connect to us. More...

virtual void	disconnect (ossimConnectableObject *object=0)
	Will disconnect the object passed in. More...

virtual void	disconnect (const ossimId &id)
	Will disconnect the object passed in. More...

virtual ossimRefPtr< ossimConnectableObject >	disconnectMyInput (ossim_int32 inputIndex, bool disconnectOutputFlag=true, bool createEventFlag=true)
	Will disconnect the object at the given input index and generate a connection event. More...

virtual void	disconnectMyInput (ossimConnectableObject *input, bool disconnectOutputFlag=true, bool createEventFlag=true)
	Finds the index of the passed in input and calls disconnectMyInput(inputIndex, disconnectOutputFlag, createEventFlag);. More...

virtual void	disconnectMyInputs (ConnectableObjectList &inputList, bool disconnectOutputFlag=true, bool createEventFlag=true)

virtual ossimRefPtr< ossimConnectableObject >	disconnectMyOutput (ossim_int32 outputIndex, bool disconnectInputFlag=true, bool createEventFlag=true)
	Will disconnect the object at the given output index and generate a connection event. More...

virtual void	disconnectMyOutput (ossimConnectableObject *output, bool disconnectInputFlag=true, bool createEventFlag=true)
	Will disconnect the output object. More...

virtual void	disconnectMyOutputs (ConnectableObjectList &outputList, bool disconnectOutputFlag=true, bool createEventFlag=true)

virtual void	disconnectAllInputs ()
	Will disconnect all of the input objects. More...

virtual void	disconnectAllOutputs ()
	Will disconnect all of the output objects. More...

virtual ossim_int32	connectMyInputTo (ossimConnectableObject *inputObject, bool makeOutputConnection=true, bool createEventFlag=true)
	Will try to connect this objects input to the passed in object. More...

virtual ossim_int32	connectMyInputTo (ossim_int32 inputIndex, ossimConnectableObject *inputObject, bool makeOutputConnection=true, bool createEventFlag=true)
	Will connect the specified input to the passed in object. More...

virtual bool	connectMyInputTo (ConnectableObjectList &inputList, bool makeOutputConnection=true, bool createEventFlag=true)

virtual ossim_int32	connectMyOutputTo (ossimConnectableObject *outputObject, bool makeInputConnection=true, bool createEventFlag=true)
	Will try to connect this objects output to the passed in object. More...

virtual bool	connectMyOutputTo (ConnectableObjectList &outputList, bool makeInputConnection=true, bool createEventFlag=true)

virtual bool	connectInputList (ConnectableObjectList &inputList)
	Will disconnect itself from all inputs and reset to the passed in input list. More...

virtual bool	connectOutputList (ConnectableObjectList &outputList)
	Will disconnect itself from all outputs and reset to the passed in output list. More...

virtual ossim_uint32	getNumberOfInputs () const
	Returns the number of input objects. More...

virtual ossim_uint32	getNumberOfOutputs () const
	Return the number of output objects. More...

ossimConnectableObject *	getInput (ossim_uint32 index=0)
	returns the object at the specified index. More...

const ossimConnectableObject *	getInput (ossim_uint32 index=0) const
	returns the object at the specified index. More...

ossimConnectableObject *	getOutput (ossim_uint32 index=0)
	returns the object at the specified index. More...

const ossimConnectableObject *	getOutput (ossim_uint32 index=0) const
	returns the object at the specified index. More...

virtual void	setNumberOfInputs (ossim_int32 numberOfInputs)
	Will set the number of inputs. More...

virtual bool	getInputListIsFixedFlag () const

virtual bool	getOutputListIsFixedFlag () const

virtual void	setNumberOfOutputs (ossim_int32 numberOfInputs)
	Will set the number of outputs. More...

const ConnectableObjectList &	getInputList () const

const ConnectableObjectList &	getOutputList () const

ConnectableObjectList &	getInputList ()

ConnectableObjectList &	getOutputList ()

	OSSIM_DEPRECATE_METHOD (virtual void findAllObjectsOfType(ConnectableObjectList &result, const RTTItypeid &typeInfo, bool recurse=true))

	OSSIM_DEPRECATE_METHOD (virtual void findAllObjectsOfType(ConnectableObjectList &result, const ossimString &className, bool recurse=true))

virtual void	propagateEventToOutputs (ossimEvent &event)

virtual void	propagateEventToInputs (ossimEvent &event)

virtual void	setProperty (const ossimString &name, const ossimString &value)

virtual ossim_uint32	saveStateOfAllInputs (ossimKeywordlist &kwl, bool saveThisStateFlag=true, ossim_uint32 objectIndex=1, const char *prefix=0) const
	Save the state of all inputs to a keyword list. More...

virtual bool	fillContainer (ossimConnectableContainer &container)
	Inserts this object and all of its children and inputs into the container provided. More...

bool	moveInputUp (const ossimId &id)
	Moves the input connection matching id up one in the connection list. More...

bool	moveInputDown (const ossimId &id)
	Moves the input connection matching id down one in the connection list. More...

bool	moveInputToTop (const ossimId &id)
	Moves the input connection matching id to the top of the connection list. More...

bool	moveInputToBottom (const ossimId &id)
	Moves the input connection matching id to the bottom of the connection list. More...

virtual void	accept (ossimVisitor &visitor)
	We will add a visitor interface for all connectable objects. More...

Public Member Functions inherited from ossimObject
	ossimObject ()

virtual	~ossimObject ()

virtual ossimObject *	dup () const

virtual ossimString	getShortName () const

virtual ossimString	getLongName () const

virtual ossimString	getClassName () const

virtual RTTItypeid	getType () const

virtual bool	canCastTo (ossimObject *obj) const

virtual bool	canCastTo (const RTTItypeid &id) const

virtual bool	canCastTo (const ossimString &parentClassName) const

virtual bool	isEqualTo (const ossimObject &obj, ossimCompareType compareType=OSSIM_COMPARE_FULL) const

Public Member Functions inherited from ossimReferenced
	ossimReferenced ()

	ossimReferenced (const ossimReferenced &)

ossimReferenced &	operator= (const ossimReferenced &)

void	ref () const
	increment the reference count by one, indicating that this object has another pointer which is referencing it. More...

void	unref () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...

void	unref_nodelete () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...

int	referenceCount () const

Public Member Functions inherited from ossimListenerManager
	ossimListenerManager ()

virtual	~ossimListenerManager ()

virtual void	fireEvent (ossimEvent &event)

virtual bool	addListener (ossimListener *listener)

virtual bool	removeListener (ossimListener *listener)

virtual bool	findListener (ossimListener *listener)

Public Member Functions inherited from ossimPropertyInterface
	ossimPropertyInterface ()

virtual	~ossimPropertyInterface ()

virtual ossimString	getPropertyValueAsString (const ossimString &name) const

void	getPropertyList (std::vector< ossimRefPtr< ossimProperty > > &propertyList) const

void	setProperties (std::vector< ossimRefPtr< ossimProperty > > &propertyList)

Public Member Functions inherited from ossimErrorStatusInterface
	ossimErrorStatusInterface ()

virtual	~ossimErrorStatusInterface ()

virtual ossimErrorCode	getErrorStatus () const

virtual ossimString	getErrorStatusString () const

virtual void	setErrorStatus (ossimErrorCode error_status) const

virtual void	setErrorStatus () const

virtual void	clearErrorStatus () const

bool	hasError () const

Public Member Functions inherited from ossimConnectableObjectListener
	ossimConnectableObjectListener ()

virtual	~ossimConnectableObjectListener ()

virtual void	processEvent (ossimEvent &event)
	ProcessEvent. More...

virtual void	objectDestructingEvent (ossimObjectDestructingEvent &)

virtual void	connectionEvent (ossimConnectionEvent &)

virtual void	disconnectOutputEvent (ossimConnectionEvent &)

virtual void	connectOutputEvent (ossimConnectionEvent &)

virtual void	addObjectEvent (ossimContainerEvent &)

virtual void	removeObjectEvent (ossimContainerEvent &)

virtual void	containerEvent (ossimContainerEvent &)

Public Member Functions inherited from ossimListener
	ossimListener ()

virtual	~ossimListener ()

void	enableListener ()

void	disableListener ()

void	setListenerEnableFlag (bool flag)

bool	isListenerEnabled () const

bool	getListenerEnableFlag () const

Protected Member Functions
void	allocate ()

void	runAlgorithm (ossimImageData newData, ossimImageData oldData)

void	runNative8 (ossimImageData newData, ossimImageData oldData)

void	runNorm (ossimImageData newData, ossimImageData oldData)

Protected Member Functions inherited from ossimImageCombiner
virtual	~ossimImageCombiner ()

void	precomputeBounds () const

Protected Member Functions inherited from ossimImageSource
	ossimImageSource (const ossimImageSource &rhs)

const ossimImageSource &	operator= (const ossimImageSource &)

Protected Member Functions inherited from ossimSource
	ossimSource (const ossimSource &rhs)

const ossimSource &	operator= (const ossimSource &rhs)

Protected Member Functions inherited from ossimConnectableObject
ossimConnectableObject *	findObjectOfType (ConnectableObjectList *connectableList, ossimVisitor &visitor)

Protected Member Functions inherited from ossimReferenced
virtual	~ossimReferenced ()

Protected Member Functions inherited from ossimListenerManager
	ossimListenerManager (const ossimListenerManager &rhs)

Protected Attributes
bool	m_byPassFlag

bool	m_nativeFlag

ossimRefPtr< ossimImageData >	m_twoColorTile

ossimRefPtr< ossimImageSource >	m_newInput

ossimRefPtr< ossimImageSource >	m_oldInput

ossim_uint32	m_newInputBandIndex

ossim_uint32	m_oldInputBandIndex

ossimTwoColorMultiViewOutputSource	m_redSource

ossimTwoColorMultiViewOutputSource	m_grnSource

ossimTwoColorMultiViewOutputSource	m_bluSource

Protected Attributes inherited from ossimImageCombiner
ossim_uint32	theLargestNumberOfInputBands

ossim_uint32	theInputToPassThrough

bool	theHasDifferentInputs

ossimRefPtr< ossimImageData >	theNormTile

std::vector< ossimIrect >	theFullResBounds

bool	theComputeFullResBoundsFlag

ossim_uint32	theCurrentIndex

Protected Attributes inherited from ossimSource
bool	theEnableFlag

bool	theInitializedFlag

Protected Attributes inherited from ossimConnectableObject
ossimId	theId

ossimString	theDescription

ossimObject *	theOwner

bool	theInputListIsFixedFlag
	Indicates whether the theInputObjectList is fixed. More...

bool	theOutputListIsFixedFlag
	Indicates whether the theOutputObjectList is fixed. More...

ConnectableObjectList	theInputObjectList
	Holds a list of input objects. More...

ConnectableObjectList	theOutputObjectList
	Holds a list of output objects. More...

Protected Attributes inherited from ossimListenerManager
std::list< ossimListener * >	theListenerList

bool	theEnabledFlag

std::list< ossimListener * >	theDelayedAdd

std::list< ossimListener * >	theDelayedRemove

bool	theFireEventFlag

Protected Attributes inherited from ossimErrorStatusInterface
ossimErrorCode	theErrorStatus

Protected Attributes inherited from ossimListener
bool	theListenerEnableFlag

Detailed Description

This is a 2 color view of the input.

It basically allows for a change detection and by default will take the first input and map it to the blue channel and takes the second input and maps to the red channel. The unused channel is mapped to a min pixel value.

Definition at line 18 of file ossimTwoColorView.h.

Member Enumeration Documentation

◆ ossimTwoColorMultiViewOutputSource

enum ossimTwoColorView::ossimTwoColorMultiViewOutputSource

Enumerations for mapping inputs to red, green and blue output channels.

Enumerator
UNKNOWN
MIN
OLD
NEW

Definition at line 26 of file ossimTwoColorView.h.

    {
       UNKNOWN = 0,
       MIN     = 1,
       OLD     = 2,
       NEW     = 3
    };

Constructor & Destructor Documentation

◆ ossimTwoColorView()

ossimTwoColorView::ossimTwoColorView ( )

Definition at line 16 of file ossimTwoColorView.cpp.

    :
    ossimImageCombiner(0, 2, 0, true, false) ,
    m_byPassFlag(true),
    m_nativeFlag(false),
    m_newInput(0),
    m_oldInput(0),
    m_newInputBandIndex(0),
    m_oldInputBandIndex(0),
    m_redSource(ossimTwoColorView::OLD),
    m_grnSource(ossimTwoColorView::NEW),
    m_bluSource(ossimTwoColorView::NEW)
 {
 }

Member Function Documentation

◆ allocate()

void ossimTwoColorView::allocate ( )

protected

Definition at line 359 of file ossimTwoColorView.cpp.

References ossimImageDataFactory::create(), ossimImageData::initialize(), ossimImageDataFactory::instance(), m_twoColorTile, and ossimRefPtr< T >::valid().

Referenced by getTile().

 {
    m_twoColorTile = ossimImageDataFactory::instance()->create(this, this);
    if(m_twoColorTile.valid())
    {
       m_twoColorTile->initialize();
    }
 }

◆ getMaxPixelValue()

double ossimTwoColorView::getMaxPixelValue ( ossim_uint32 band ) const

virtual

Returns the max pixel of the band.

Reimplemented from ossimImageCombiner.

Definition at line 81 of file ossimTwoColorView.cpp.

References ossimImageCombiner::getMaxPixelValue(), ossimSource::isSourceEnabled(), and m_byPassFlag.

 {
    if(m_byPassFlag||!isSourceEnabled())
    {
       return ossimImageCombiner::getMaxPixelValue(band);
    }
    return 256;
 }

◆ getMinPixelValue()

double ossimTwoColorView::getMinPixelValue ( ossim_uint32 band ) const

virtual

Returns the min pixel of the band.

Reimplemented from ossimImageCombiner.

Definition at line 72 of file ossimTwoColorView.cpp.

References ossimImageCombiner::getMinPixelValue(), ossimSource::isSourceEnabled(), and m_byPassFlag.

 {
    if(m_byPassFlag||!isSourceEnabled())
    {
       return ossimImageCombiner::getMinPixelValue(band);
    }
    return 1;
 }

◆ getNullPixelValue()

double ossimTwoColorView::getNullPixelValue ( ossim_uint32 band ) const

virtual

Each band has a null pixel associated with it.

The null pixel represents an invalid value.

Reimplemented from ossimImageCombiner.

Definition at line 63 of file ossimTwoColorView.cpp.

References ossimImageCombiner::getNullPixelValue(), ossimSource::isSourceEnabled(), and m_byPassFlag.

 {
    if(m_byPassFlag||!isSourceEnabled())
    {
       return ossimImageCombiner::getNullPixelValue(band);
    }
    return 0;
 }

◆ getNumberOfOutputBands()

ossim_uint32 ossimTwoColorView::getNumberOfOutputBands ( ) const

virtual

Returns the number of bands in a tile returned from this TileSource.

Reimplemented from ossimImageSource.

Definition at line 31 of file ossimTwoColorView.cpp.

References ossimImageSource::getNumberOfOutputBands(), ossimSource::isSourceEnabled(), and m_byPassFlag.

 {
    if(m_byPassFlag||!isSourceEnabled())
    {
       return ossimImageCombiner::getNumberOfOutputBands();
    }
    return 3;
 }

◆ getOutputScalarType()

ossimScalarType ossimTwoColorView::getOutputScalarType ( ) const

virtual

This will be used to query the output pixel type of the tile source.

Please ignore the argument. It will soon be removed.

Reimplemented from ossimImageCombiner.

Definition at line 40 of file ossimTwoColorView.cpp.

References ossimImageCombiner::getOutputScalarType(), ossimSource::isSourceEnabled(), m_byPassFlag, and OSSIM_UINT8.

 {
    if(m_byPassFlag||!isSourceEnabled())
    {
       return ossimImageCombiner::getOutputScalarType();
    }
    return OSSIM_UINT8;
 }

◆ getTile()

ossimRefPtr< ossimImageData > ossimTwoColorView::getTile	(	const ossimIrect &	rect,
		ossim_uint32	resLevel = `0`
	)

virtual

Returns: the requested region of interest

Reimplemented from ossimImageSource.

Definition at line 90 of file ossimTwoColorView.cpp.

References allocate(), ossimRefPtr< T >::get(), ossimImageCombiner::getNextTile(), ossimImageSource::getTile(), ossimSource::isSourceEnabled(), m_byPassFlag, m_newInput, m_oldInput, m_twoColorTile, ossimImageData::makeBlank(), runAlgorithm(), ossimImageData::setImageRectangle(), ossimRefPtr< T >::valid(), and ossimImageData::validate().

 {
    ossim_uint32 tileIdx = 0;
    if(m_byPassFlag||!isSourceEnabled())
    {
       return getNextTile(tileIdx, 0, rect, resLevel);
    }
    if(!m_twoColorTile.valid())
    {
       allocate();
    }
    if(!m_twoColorTile.valid())
    {
       return m_twoColorTile;
    }
    m_twoColorTile->setImageRectangle(rect);
    m_twoColorTile->makeBlank();

    ossimRefPtr<ossimImageData> newData = m_newInput->getTile(rect, resLevel);
    ossimRefPtr<ossimImageData> oldData = m_oldInput->getTile(rect, resLevel);

    runAlgorithm(newData.get(), oldData.get());

    m_twoColorTile->validate();

    return m_twoColorTile;
 }

◆ initialize()

void ossimTwoColorView::initialize ( )

virtual

Reimplemented from ossimImageCombiner.

Definition at line 369 of file ossimTwoColorView.cpp.

References ossimConnectableObject::getInput(), ossimConnectableObject::getNumberOfInputs(), ossimImageSource::getNumberOfOutputBands(), ossimImageSource::getOutputScalarType(), ossimImageCombiner::initialize(), m_byPassFlag, m_nativeFlag, m_newInput, m_newInputBandIndex, m_oldInput, m_oldInputBandIndex, m_twoColorTile, OSSIM_UINT8, and ossimRefPtr< T >::valid().

 {
    ossimImageCombiner::initialize();
    m_newInput = 0;
    m_oldInput = 0;
    m_twoColorTile = 0;
    m_nativeFlag = false;
    m_byPassFlag = false;

    if(getNumberOfInputs() < 2)
    {
       m_byPassFlag = true;
    }
    else
    {
       m_oldInput = dynamic_cast<ossimImageSource*>( getInput(0) );
       m_newInput = dynamic_cast<ossimImageSource*>( getInput(1) );

       //---
       // Range check band selection. This can be set from setBandIndexMapping method which
       // does no error checking because inputs may not be set.
       //----
       if ( m_oldInput.valid() )
       {
          if ( m_oldInputBandIndex >= m_oldInput->getNumberOfOutputBands() )
          {
             m_oldInputBandIndex = 0;
          }
       }

       if ( m_newInput.valid() )
       {
          if ( m_newInputBandIndex >= m_newInput->getNumberOfOutputBands() )
          {
             m_newInputBandIndex = 0;
          }
       }

       if(!m_newInput||!m_oldInput)
       {
          m_byPassFlag = true;
       }
       else
       {
          if((m_newInput->getOutputScalarType() == OSSIM_UINT8)&&
             (m_oldInput->getOutputScalarType() == OSSIM_UINT8))
          {
             m_nativeFlag = true;
          }
       }
    }
 }

◆ runAlgorithm()

void ossimTwoColorView::runAlgorithm	(	ossimImageData *	newData,
		ossimImageData *	oldData
	)

protected

Definition at line 118 of file ossimTwoColorView.cpp.

References m_nativeFlag, runNative8(), and runNorm().

Referenced by getTile().

 {
    if(m_nativeFlag)
    {
       runNative8(newData, oldData);
    }
    else
    {
       runNorm(newData, oldData);
    }
 }

◆ runNative8()

void ossimTwoColorView::runNative8	(	ossimImageData *	newData,
		ossimImageData *	oldData
	)

protected

Definition at line 130 of file ossimTwoColorView.cpp.

References ossimImageData::getBuf(), ossimImageData::getNumberOfBands(), ossimImageData::getSizePerBand(), m_grnSource, m_newInputBandIndex, m_oldInputBandIndex, m_redSource, m_twoColorTile, n, NEW, OLD, and ossimRefPtr< T >::valid().

Referenced by runAlgorithm().

 {
    if ( newData && oldData && m_twoColorTile.valid() &&
         ( m_twoColorTile->getNumberOfBands() == 3 ) )
    {
       // old, new, red, green, blue buffers...
       ossim_uint8* o = static_cast<ossim_uint8*>( oldData->getBuf(m_oldInputBandIndex) );
       ossim_uint8* n = static_cast<ossim_uint8*>( newData->getBuf(m_newInputBandIndex) );
       ossim_uint8* r = static_cast<ossim_uint8*>( m_twoColorTile->getBuf(0) );
       ossim_uint8* g = static_cast<ossim_uint8*>( m_twoColorTile->getBuf(1) );
       ossim_uint8* b = static_cast<ossim_uint8*>( m_twoColorTile->getBuf(2) );

       if ( o && n && r && g && b )
       {
          // Assuming null pix of 0 for 8 bit.
          const ossim_uint8 MP = 1;
          const ossim_uint8 NP = 0;

          ossim_uint8 newPix = 0;
          ossim_uint8 oldPix = 0;

          const ossim_uint32 MAX_IDX = m_twoColorTile->getSizePerBand();

          for(ossim_uint32 idx = 0; idx < MAX_IDX; ++idx)
          {
             if( ( *n == NP ) && ( *o == NP ) )
             {
                // Both inputs null, set all outputs null.
                *r = NP;
                *b = NP;
                *g = NP;
             }
             else
             {
                // At least one input is not null.
                newPix = (*n != NP) ? *n : MP;
                oldPix = (*o != NP) ? *o : MP;

                // Set red, OLD is default so check first:
                if ( m_redSource == ossimTwoColorView::OLD )
                {
                   *r = oldPix;
                }
                else if ( m_redSource == ossimTwoColorView::NEW )
                {
                   *r = newPix;
                }
                else
                {
                   *r = MP;
                }

                // Set green, NEW is default so check first:
                if ( m_grnSource == ossimTwoColorView::NEW )
                {
                   *g = newPix;
                }
                else if ( m_grnSource == ossimTwoColorView::OLD )
                {
                   *g = oldPix;
                }
                else
                {
                   *g = MP;
                }

                // Set blue, NEW is default so check first:
                if ( m_grnSource == ossimTwoColorView::NEW )
                {
                   *b = newPix;
                }
                else if ( m_grnSource == ossimTwoColorView::OLD )
                {
                   *b = oldPix;
                }
                else
                {
                   *b = MP;
                }
             }

             // Next pixel:
             ++n;
             ++o;
             ++r;
             ++g;
             ++b;
          }
       }
    }
 }

◆ runNorm()

void ossimTwoColorView::runNorm	(	ossimImageData *	newData,
		ossimImageData *	oldData
	)

protected

Definition at line 222 of file ossimTwoColorView.cpp.

References ossimImageData::copyTileBandToNormalizedBuffer(), ossimImageData::getBuf(), ossimImageData::getNumberOfBands(), ossimImageData::getSizePerBand(), m_grnSource, m_newInputBandIndex, m_oldInputBandIndex, m_redSource, m_twoColorTile, n, NEW, OLD, and ossimRefPtr< T >::valid().

Referenced by runAlgorithm().

 {
    if ( newData && oldData && m_twoColorTile.valid() &&
         ( m_twoColorTile->getNumberOfBands() == 3 ) )
    {
       const ossim_uint32 MAX_IDX = m_twoColorTile->getSizePerBand();

       // Buffers for normalized oldData and newData tiles.
       std::vector<ossim_float32> oldDataBuffer(MAX_IDX);
       std::vector<ossim_float32> newDataBuffer(MAX_IDX);

       // old and new input buffers.
       ossim_float32* o = &oldDataBuffer.front();
       ossim_float32* n = &newDataBuffer.front();

       // Normalize/copy to buffers.
       newData->copyTileBandToNormalizedBuffer(m_newInputBandIndex, n);
       oldData->copyTileBandToNormalizedBuffer(m_oldInputBandIndex, o);

       // Get the output buffers.
       ossim_uint8* r = static_cast<ossim_uint8*>( m_twoColorTile->getBuf(0) );
       ossim_uint8* g = static_cast<ossim_uint8*>( m_twoColorTile->getBuf(1) );
       ossim_uint8* b = static_cast<ossim_uint8*>( m_twoColorTile->getBuf(2) );

       if ( o && n && r && g && b )
       {
          // Assuming null pix of 0 for 8 bit.
          const ossim_uint8 MP = 1;
          const ossim_uint8 NP = 0;

          ossim_uint8   newPix = 0;
          ossim_uint8   oldPix = 0;
          ossim_float32 tmpPix = 0.0;

          const ossim_uint32 MAX_IDX = m_twoColorTile->getSizePerBand();

          for(ossim_uint32 idx = 0; idx < MAX_IDX; ++idx)
          {
             if( ( *n == NP ) && ( *o == NP ) )
             {
                // Both inputs null, set all outputs null.
                *r = NP;
                *b = NP;
                *g = NP;
             }
             else
             {
                // At least one input is not null.

                // Set the newPix:
                if ( *n != NP )
                {
                   // Un-normalize:
                   tmpPix = (*n) * 255.0;

                   // Clamp to min/max.
                   tmpPix = (tmpPix <= 255.0) ? ( (tmpPix >= 1.0) ? tmpPix : 1.0) : 255.0;

                   // Copy
                   newPix = static_cast<ossim_uint8>( tmpPix );
                }
                else
                {
                   newPix = MP;
                }

                // Set the oldPix:
                if ( *o != NP )
                {
                   // Un-normalize:
                   tmpPix = (*o) * 255.0;

                   // Clamp to min/max.
                   tmpPix = (tmpPix <= 255.0) ? ( (tmpPix >= 1.0) ? tmpPix : 1.0) : 255.0;

                   // Copy
                   oldPix = static_cast<ossim_uint8>( tmpPix );
                }
                else
                {
                   oldPix = MP;
                }

                // Set red, OLD is default so check first:
                if ( m_redSource == ossimTwoColorView::OLD )
                {
                   *r = oldPix;
                }
                else if ( m_redSource == ossimTwoColorView::NEW )
                {
                   *r = newPix;
                }
                else
                {
                   *r = MP;
                }

                // Set green, NEW is default so check first:
                if ( m_grnSource == ossimTwoColorView::NEW )
                {
                   *g = newPix;
                }
                else if ( m_grnSource == ossimTwoColorView::OLD )
                {
                   *g = oldPix;
                }
                else
                {
                   *g = MP;
                }

                // Set blue, NEW is default so check first:
                if ( m_grnSource == ossimTwoColorView::NEW )
                {
                   *b = newPix;
                }
                else if ( m_grnSource == ossimTwoColorView::OLD )
                {
                   *b = oldPix;
                }
                else
                {
                   *b = MP;
                }
             }

             // Next pixel:
             ++n;
             ++o;
             ++r;
             ++g;
             ++b;
          }
       }
    }
 }

◆ setBandIndexMapping()

void ossimTwoColorView::setBandIndexMapping	(	ossim_uint32	oldInputBandIndex,
		ossim_uint32	newInputBandIndex,
		ossimTwoColorMultiViewOutputSource	redOutputSource,
		ossimTwoColorMultiViewOutputSource	grnOutputSource,
		ossimTwoColorMultiViewOutputSource	bluOutputSource
	)

Sets which bands to use from inputs, and which inputs to use for output red, green and blue channels.

This method does no error checking as the inputs may or may not be set prior to this call. ossimTwoColorView::initialize() will verify once inputs are established. So if an input band is out of range band 0 (first band) will be used.

Callers should ensure initialize is called after this.

Parameters

oldInputBandIndex	Zero based band index for old input. Default=0
newInputBandIndex	Zero based band index for new input. Default=0.
redOutputSource	default=OLD. Can be: ossimTwoColorMultiViewOutputSource::OLD ossimTwoColorMultiViewOutputSource::NEW ossimTwoColorMultiViewOutputSource::MIN
grnOutputSource	default=NEW. Can be: ossimTwoColorMultiViewOutputSource::OLD ossimTwoColorMultiViewOutputSource::NEW ossimTwoColorMultiViewOutputSource::MIN
bluOutputSource	default=NEW. Can be: ossimTwoColorMultiViewOutputSource::OLD ossimTwoColorMultiViewOutputSource::NEW ossimTwoColorMultiViewOutputSource::MIN

Definition at line 49 of file ossimTwoColorView.cpp.

References m_bluSource, m_grnSource, m_newInputBandIndex, m_oldInputBandIndex, and m_redSource.

 {
    m_oldInputBandIndex = oldInputBandIndex;
    m_newInputBandIndex = newInputBandIndex;
    m_redSource = redOutputSource;
    m_grnSource = grnOutputSource;
    m_bluSource = bluOutputSource;
 }
