#include <ossimDatum.h>

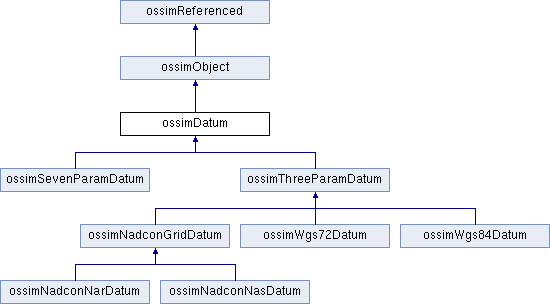

Inheritance diagram for ossimDatum:

Public Member Functions
	ossimDatum (const ossimString &alpha_code, const ossimString &name, const ossimEllipsoid *anEllipsoid, ossim_float64 sigmaX, ossim_float64 sigmaY, ossim_float64 sigmaZ, ossim_float64 westLongitude, ossim_float64 eastLongitude, ossim_float64 southLatitude, ossim_float64 northLatitude)

virtual ossimGpt	shift (const ossimGpt &aPt) const =0

virtual ossimGpt	shiftToWgs84 (const ossimGpt &aPt) const =0

virtual ossimGpt	shiftFromWgs84 (const ossimGpt &aPt) const =0

virtual bool	isTheSameAs (const ossimDatum *aDatum) const

virtual const ossimString &	code () const

virtual const ossimString &	name () const

virtual ossim_uint32	epsgCode () const

virtual const ossimEllipsoid *	ellipsoid () const

virtual ossim_float64	sigmaX () const

virtual ossim_float64	sigmaY () const

virtual ossim_float64	sigmaZ () const

virtual ossim_float64	westLongitude () const

virtual ossim_float64	eastLongitude () const

virtual ossim_float64	southLatitude () const

virtual ossim_float64	northLatitude () const

virtual ossim_float64	param1 () const =0

virtual ossim_float64	param2 () const =0

virtual ossim_float64	param3 () const =0

virtual ossim_float64	param4 () const =0

virtual ossim_float64	param5 () const =0

virtual ossim_float64	param6 () const =0

virtual ossim_float64	param7 () const =0

virtual bool	isInside (ossim_float64 latitude, ossim_float64 longitude) const

bool	operator== (const ossimDatum &rhs) const

bool	operator!= (const ossimDatum &rhs) const

virtual bool	isEqualTo (const ossimObject &obj, ossimCompareType compareType=OSSIM_COMPARE_FULL) const

Public Member Functions inherited from ossimObject
	ossimObject ()

virtual	~ossimObject ()

virtual ossimObject *	dup () const

virtual ossimString	getShortName () const

virtual ossimString	getLongName () const

virtual ossimString	getDescription () const

virtual ossimString	getClassName () const

virtual RTTItypeid	getType () const

virtual bool	canCastTo (ossimObject *obj) const

virtual bool	canCastTo (const RTTItypeid &id) const

virtual bool	canCastTo (const ossimString &parentClassName) const

virtual bool	saveState (ossimKeywordlist &kwl, const char *prefix=0) const

virtual bool	loadState (const ossimKeywordlist &kwl, const char *prefix=0)

virtual std::ostream &	print (std::ostream &out) const
	Generic print method. More...

virtual void	accept (ossimVisitor &visitor)

Public Member Functions inherited from ossimReferenced
	ossimReferenced ()

	ossimReferenced (const ossimReferenced &)

ossimReferenced &	operator= (const ossimReferenced &)

void	ref () const
	increment the reference count by one, indicating that this object has another pointer which is referencing it. More...

void	unref () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...

void	unref_nodelete () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...

int	referenceCount () const

Protected Member Functions
virtual	~ossimDatum ()
	Only friend ossimDatumFactory is permitted to delete. More...

virtual void	molodenskyShift (double a, double da, double f, double df, double dx, double dy, double dz, double Lat_in, double Lon_in, double Hgt_in, double &Lat_out, double &Lon_out, double &Hgt_out) const

bool	withinMolodenskyRange (const ossimGpt &pt) const

Protected Member Functions inherited from ossimReferenced
virtual	~ossimReferenced ()

Friends
class	ossimDatumFactory

Detailed Description

Definition at line 22 of file ossimDatum.h.

Constructor & Destructor Documentation

◆ ossimDatum()

ossimDatum::ossimDatum	(	const ossimString &	alpha_code,
		const ossimString &	name,
		const ossimEllipsoid *	anEllipsoid,
		ossim_float64	sigmaX,
		ossim_float64	sigmaY,
		ossim_float64	sigmaZ,
		ossim_float64	westLongitude,
		ossim_float64	eastLongitude,
		ossim_float64	southLatitude,
		ossim_float64	northLatitude
	)

Parameters

alpha_code	new OSSIM/Geotrans datum code. (input)
name	Name of the new datum (input)
SigmaX	Standard error in X in meters (input)
SigmaY	Standard error in Y in meters (input)
SigmaZ	Standard error in Z in meters (input)
southLatitude	Southern edge of validity rectangle in radians(input)
northLatitude	Northern edge of validity rectangle in radians(input)
westLongitude	Western edge of validity rectangle in radians (input)
eastLongitude	Eastern edge of validity rectangle in radians (input)

Definition at line 18 of file ossimDatum.cpp.

References ossimEpsgDatumFactory::findEpsgCode(), ossimEpsgDatumFactory::instance(), and theEpsgCode.

 :
 theCode(alpha_code),
 theName(name),
 theEllipsoid(anEllipsoid),
 theSigmaX(sigmaX),
 theSigmaY(sigmaY),
 theSigmaZ(sigmaZ),
 theWestLongitude(westLongitude),
 theEastLongitude(eastLongitude),
 theSouthLatitude(southLatitude),
 theNorthLatitude(northLatitude)
 {
    theEpsgCode = ossimEpsgDatumFactory::instance()->findEpsgCode(alpha_code);
 };

◆ ~ossimDatum()

virtual ossimDatum::~ossimDatum ( )

inlineprotectedvirtual

Only friend ossimDatumFactory is permitted to delete.

Definition at line 96 of file ossimDatum.h.

96 {};

Member Function Documentation

◆ code()

virtual const ossimString& ossimDatum::code ( ) const

inlinevirtual

Definition at line 57 of file ossimDatum.h.

57 {return theCode;}

ossimDatum::theCode

ossimString theCode

Definition: ossimDatum.h:133

◆ eastLongitude()

virtual ossim_float64 ossimDatum::eastLongitude ( ) const

inlinevirtual

Definition at line 66 of file ossimDatum.h.

Referenced by ossimDatumFactory::writeCStructure().

66 {return theEastLongitude;}

ossimDatum::theEastLongitude

ossim_float64 theEastLongitude

Definition: ossimDatum.h:143

◆ ellipsoid()

virtual const ossimEllipsoid* ossimDatum::ellipsoid ( ) const

inlinevirtual

Definition at line 60 of file ossimDatum.h.

Referenced by ossimPositionQualityEvaluator::computeElevAzim(), ossimUpspt::convertFromGeodetic(), ossimUtmpt::convertFromGround(), ossimUtmpt::convertToGround(), ossimEpsgProjectionDatabase::createProjFromFormatARecord(), ossimEpsgProjectionDatabase::findProjection(), ossimRpcModel::getForwardDeriv(), ossimDtedTileSource::getImageGeometry(), ossimSrtmSupportData::getProjection(), ossimRpcModel::imagingRay(), ossimEcefRay::intersectAboveEarthEllipsoid(), ossimMapProjection::loadState(), ossimGpt::metersPerDegree(), ossimInfo::mtrsPerDeg(), ossimEcefPoint::ossimEcefPoint(), ossimGpt::ossimGpt(), ossimLlxyProjection::ossimLlxyProjection(), ossimWgs72Datum::ossimWgs72Datum(), ossimWgs84Datum::ossimWgs84Datum(), ossimInfo::printDatums(), ossimMapProjection::setDatum(), ossimWgs72Datum::shift(), ossimSevenParamDatum::shift(), ossimThreeParamDatum::shiftFromWgs84(), ossimThreeParamDatum::shiftToWgs84(), ossimNewZealandMapGridProjection::update(), ossimDatumFactory::writeCStructure(), ossimGeoTiff::writeTags(), and ossimWriter::writeTiffTags().

60 {return theEllipsoid;}

ossimDatum::theEllipsoid

const ossimEllipsoid * theEllipsoid

Definition: ossimDatum.h:136

◆ epsgCode()

virtual ossim_uint32 ossimDatum::epsgCode ( ) const

inlinevirtual

Definition at line 59 of file ossimDatum.h.

Referenced by ossimEpsgProjectionDatabase::findProjectionCode(), ossimGeoTiff::parseProjection(), ossimInfo::printDatums(), ossimEquDistCylProjection::update(), ossimGeoTiff::writeTags(), and ossimWriter::writeTiffTags().

59 {return theEpsgCode;}

ossimDatum::theEpsgCode

ossim_uint32 theEpsgCode

Definition: ossimDatum.h:134

◆ isEqualTo()

bool ossimDatum::isEqualTo	(	const ossimObject &	obj,
		ossimCompareType	compareType = `OSSIM_COMPARE_FULL`
	)		const

virtual

Reimplemented from ossimObject.

Reimplemented in ossimSevenParamDatum, and ossimThreeParamDatum.

Definition at line 179 of file ossimDatum.cpp.

References ossim::almostEqual(), ossimObject::isEqualTo(), ossimEllipsoid::isEqualTo(), OSSIM_COMPARE_FULL, theCode, theEastLongitude, theEllipsoid, theEpsgCode, theName, theNorthLatitude, theSigmaX, theSigmaY, theSigmaZ, theSouthLatitude, and theWestLongitude.

Referenced by ossimThreeParamDatum::isEqualTo(), ossimSevenParamDatum::isEqualTo(), ossimGpt::isEqualTo(), and ossimMapProjection::isEqualTo().

 {
    const ossimDatum* rhs = dynamic_cast<const ossimDatum*> (&obj);
    bool result = rhs&&ossimObject::isEqualTo(obj, compareType);
    if(result)
    {
       result = ((theCode == rhs->theCode)&&
                 (theEpsgCode == rhs->theEpsgCode)&&
                 (theName == rhs->theName)&&
                 (ossim::almostEqual(theSigmaX, rhs->theSigmaX))&&
                 (ossim::almostEqual(theSigmaY, rhs->theSigmaY))&&
                 (ossim::almostEqual(theSigmaZ, rhs->theSigmaZ))&&
                 (ossim::almostEqual(theWestLongitude, rhs->theWestLongitude))&&
                 (ossim::almostEqual(theEastLongitude, rhs->theEastLongitude))&&
                 (ossim::almostEqual(theSouthLatitude, rhs->theSouthLatitude))&&
                 (ossim::almostEqual(theNorthLatitude, rhs->theNorthLatitude)));

       if(result)
       {
          if(theEllipsoid&&rhs->theEllipsoid)
          {
             if(compareType == OSSIM_COMPARE_FULL)
             {
                result = theEllipsoid->isEqualTo(*rhs->theEllipsoid, compareType);
             }
             else
             {
                result = theEllipsoid == rhs->theEllipsoid;
             }
          }
          else if(reinterpret_cast<ossim_uint64>(theEllipsoid) | reinterpret_cast<ossim_uint64>(rhs->theEllipsoid)) // one is null
          {
             result = false;
          }
       }
    }
    return result;
 }

◆ isInside()

virtual bool ossimDatum::isInside	(	ossim_float64	latitude,
		ossim_float64	longitude
	)		const

inlinevirtual

Definition at line 78 of file ossimDatum.h.

    {
       return ((theSouthLatitude <= latitude) &&
               (latitude <= theNorthLatitude) &&
               (theWestLongitude <= longitude) &&
               (longitude <= theEastLongitude));
    }

◆ isTheSameAs()

virtual bool ossimDatum::isTheSameAs ( const ossimDatum * aDatum ) const

inlinevirtual

Definition at line 55 of file ossimDatum.h.

56 {return this == aDatum;}

◆ molodenskyShift()

void ossimDatum::molodenskyShift	(	double	a,
		double	da,
		double	f,
		double	df,
		double	dx,
		double	dy,
		double	dz,
		double	Lat_in,
		double	Lon_in,
		double	Hgt_in,
		double &	Lat_out,
		double &	Lon_out,
		double &	Hgt_out
	)		const

protectedvirtual

This is directly from Geotrans: Begin Molodensky_Shift This function shifts geodetic coordinates using the Molodensky method.

a : Semi-major axis of source ellipsoid in meters (input) da : Destination a minus source a (input) f : Flattening of source ellipsoid (input) df : Destination f minus source f (input) dx : X coordinate shift in meters (input) dy : Y coordinate shift in meters (input) dz : Z coordinate shift in meters (input)

Definition at line 38 of file ossimDatum.cpp.

References ossim::isnan(), M_PI, and n.

Referenced by ossimThreeParamDatum::shiftFromWgs84(), and ossimThreeParamDatum::shiftToWgs84().

 {
   /* Begin Molodensky_Shift */
   /*
    *  This function shifts geodetic coordinates using the Molodensky method.
    *
    *    a         : Semi-major axis of source ellipsoid in meters  (input)
    *    da        : Destination a minus source a                   (input)
    *    f         : Flattening of source ellipsoid                 (input)
    *    df        : Destination f minus source f                   (input)
    *    dx        : X coordinate shift in meters                   (input)
    *    dy        : Y coordinate shift in meters                   (input)
    *    dz        : Z coordinate shift in meters                   (input)
    *    Lat_in    : Latitude in radians.                           (input)
    *    Lon_in    : Longitude in radians.                          (input)
    *    Hgt_in    : Height in meters.                              (input)
    *    Lat_out   : Calculated latitude in radians.                (output)
    *    Lon_out   : Calculated longitude in radians.               (output)
    *    Hgt_out   : Calculated height in meters.                   (output)
    */
   double tLon_in;   /* temp longitude                                   */
   double e2;        /* Intermediate calculations for dp, dl               */
   double ep2;       /* Intermediate calculations for dp, dl               */
   double sin_Lat;   /* sin(Latitude_1)                                    */
   double sin2_Lat;  /* (sin(Latitude_1))^2                                */
   double sin_Lon;   /* sin(Longitude_1)                                   */
   double cos_Lat;   /* cos(Latitude_1)                                    */
   double cos_Lon;   /* cos(Longitude_1)                                   */
   double w2;        /* Intermediate calculations for dp, dl               */
   double w;         /* Intermediate calculations for dp, dl               */
   double w3;        /* Intermediate calculations for dp, dl               */
   double m;         /* Intermediate calculations for dp, dl               */
   double n;         /* Intermediate calculations for dp, dl               */
   double dp;        /* Delta phi                                          */
   double dp1;       /* Delta phi calculations                             */
   double dp2;       /* Delta phi calculations                             */
   double dp3;       /* Delta phi calculations                             */
   double dl;        /* Delta lambda                                       */
   double dh;        /* Delta height                                       */
   double dh1;       /* Delta height calculations                          */
   double dh2;       /* Delta height calculations                          */

   if(ossim::isnan(Hgt_in))
   {
      Hgt_in = 0.0;
   }

   if (Lon_in > M_PI)
     tLon_in = Lon_in - (2*M_PI);
   else
      tLon_in = Lon_in;

   e2 = 2 * f - f * f;
   ep2 = e2 / (1 - e2);
   sin_Lat = sin(Lat_in);
   cos_Lat = cos(Lat_in);
   sin_Lon = sin(tLon_in);
   cos_Lon = cos(tLon_in);
   sin2_Lat = sin_Lat * sin_Lat;
   w2 = 1.0 - e2 * sin2_Lat;
   w = sqrt(w2);
   w3 = w * w2;
   m = (a * (1.0 - e2)) / w3;
   n = a / w;
   dp1 = cos_Lat * dz - sin_Lat * cos_Lon * dx - sin_Lat * sin_Lon * dy;
   dp2 = ((e2 * sin_Lat * cos_Lat) / w) * da;
   dp3 = sin_Lat * cos_Lat * (2.0 * n + ep2 * m * sin2_Lat) * (1.0 - f) * df;
   dp = (dp1 + dp2 + dp3) / (m + Hgt_in);
   dl = (-sin_Lon * dx + cos_Lon * dy) / ((n + Hgt_in) * cos_Lat);
   dh1 = (cos_Lat * cos_Lon * dx) + (cos_Lat * sin_Lon * dy) + (sin_Lat * dz);
   dh2 = -(w * da) + ((a * (1 - f)) / w) * sin2_Lat * df;
   dh = dh1 + dh2;

   Lat_out = Lat_in + dp;
   Lon_out = Lon_in + dl;
   Hgt_out = Hgt_in + dh;

   if (Lon_out > (M_PI * 2))
      Lon_out -= 2*M_PI;
   if (Lon_out < (- M_PI))
      Lon_out += 2*M_PI;
 }

◆ name()

virtual const ossimString& ossimDatum::name ( ) const

inlinevirtual

Definition at line 58 of file ossimDatum.h.

Referenced by ossimEpsgDatumFactory::getList(), ossimGeoTiff::parseProjection(), ossimInfo::printDatums(), ossimDatumFactory::writeCStructure(), and ossimGeoTiff::writeTags().

58 {return theName;}

ossimDatum::theName

ossimString theName

Definition: ossimDatum.h:135

◆ northLatitude()

virtual ossim_float64 ossimDatum::northLatitude ( ) const

inlinevirtual

Definition at line 68 of file ossimDatum.h.

Referenced by ossimDatumFactory::writeCStructure().

68 {return theNorthLatitude;}

ossimDatum::theNorthLatitude

ossim_float64 theNorthLatitude

Definition: ossimDatum.h:145

◆ operator!=()

bool ossimDatum::operator!= ( const ossimDatum & rhs ) const

inline

Definition at line 88 of file ossimDatum.h.

    {
       return (!(*this == rhs));
    }

◆ operator==()

bool ossimDatum::operator== ( const ossimDatum & rhs ) const

Definition at line 134 of file ossimDatum.cpp.

References ossimString::contains(), theCode, theEastLongitude, theEllipsoid, theEpsgCode, theNorthLatitude, theSigmaX, theSigmaY, theSigmaZ, theSouthLatitude, and theWestLongitude.

 {
    // This method is complicated by the fact that some datums are represented by a precomputed
    // grid version of the parametric datum.cpp Need to consider these cases. (OLK 02/11)
    if (theCode == "NAR") // This is the code for gridded NADCON datum
    {
       if (!rhs.theCode.contains("NAR"))
          return false;
    }
    else if (rhs.theCode == "NAR")
    {
       if (!theCode.contains("NAR"))
          return false;
    }
    else if (theCode == "NAS")
    {
       if (!rhs.theCode.contains("NAS"))
          return false;
    }
    else if (rhs.theCode == "NAS")
    {
       if (!theCode.contains("NAS"))
          return false;
    }

    // Not a grid, so codes must match:
    else if (theCode != rhs.theCode)
       return false;

    // Additional EPSG code check after HARN v. parametric caused false positives (OLK 05/11):
    if ((theEpsgCode != 0) && (rhs.theEpsgCode !=0) && (theEpsgCode != rhs.theEpsgCode))
       return false;

    // Don't need to check the name since 1:1 relationship with code, code check is sufficient.
    // This saves the tedium of filtering for NADCON datums as done above.
    return ((*theEllipsoid == *rhs.theEllipsoid)&&
       (theSigmaX == rhs.theSigmaX)&&
       (theSigmaY == rhs.theSigmaY)&&
       (theSigmaZ == rhs.theSigmaZ)&&
       (theWestLongitude == rhs.theWestLongitude)&&
       (theEastLongitude == rhs.theEastLongitude)&&
       (theSouthLatitude == rhs.theSouthLatitude)&&
       (theNorthLatitude == rhs.theNorthLatitude));
 }

◆ param1()

virtual ossim_float64 ossimDatum::param1 ( ) const

pure virtual

Implemented in ossimSevenParamDatum, and ossimThreeParamDatum.

Referenced by ossimDatumFactory::writeCStructure().

◆ param2()

virtual ossim_float64 ossimDatum::param2 ( ) const

pure virtual

Implemented in ossimSevenParamDatum, and ossimThreeParamDatum.

Referenced by ossimDatumFactory::writeCStructure().

◆ param3()

virtual ossim_float64 ossimDatum::param3 ( ) const

pure virtual

Implemented in ossimSevenParamDatum, and ossimThreeParamDatum.

Referenced by ossimDatumFactory::writeCStructure().

◆ param4()

virtual ossim_float64 ossimDatum::param4 ( ) const

pure virtual

Implemented in ossimSevenParamDatum, and ossimThreeParamDatum.

Referenced by ossimDatumFactory::writeCStructure().

◆ param5()

virtual ossim_float64 ossimDatum::param5 ( ) const

pure virtual

Implemented in ossimSevenParamDatum, and ossimThreeParamDatum.

Referenced by ossimDatumFactory::writeCStructure().

◆ param6()

virtual ossim_float64 ossimDatum::param6 ( ) const

pure virtual

Implemented in ossimSevenParamDatum, and ossimThreeParamDatum.

Referenced by ossimDatumFactory::writeCStructure().

◆ param7()

virtual ossim_float64 ossimDatum::param7 ( ) const

pure virtual

Implemented in ossimSevenParamDatum, and ossimThreeParamDatum.

Referenced by ossimDatumFactory::writeCStructure().

◆ shift()

virtual ossimGpt ossimDatum::shift ( const ossimGpt & aPt ) const

pure virtual

Implemented in ossimSevenParamDatum, ossimThreeParamDatum, ossimWgs84Datum, ossimWgs72Datum, ossimNadconNasDatum, and ossimNadconNarDatum.

Referenced by ossimGpt::changeDatum().

◆ shiftFromWgs84()

virtual ossimGpt ossimDatum::shiftFromWgs84 ( const ossimGpt & aPt ) const

pure virtual

Implemented in ossimSevenParamDatum, ossimThreeParamDatum, ossimWgs84Datum, and ossimWgs72Datum.

◆ shiftToWgs84()

virtual ossimGpt ossimDatum::shiftToWgs84 ( const ossimGpt & aPt ) const

pure virtual

Implemented in ossimSevenParamDatum, ossimThreeParamDatum, ossimWgs84Datum, and ossimWgs72Datum.

Referenced by ossimWgs72Datum::shift(), ossimWgs84Datum::shift(), ossimThreeParamDatum::shift(), and ossimSevenParamDatum::shift().

◆ sigmaX()

virtual ossim_float64 ossimDatum::sigmaX ( ) const

inlinevirtual

Definition at line 61 of file ossimDatum.h.

Referenced by ossimDatumFactory::writeCStructure().

61 {return theSigmaX;}

ossimDatum::theSigmaX

ossim_float64 theSigmaX

Definition: ossimDatum.h:138

◆ sigmaY()

virtual ossim_float64 ossimDatum::sigmaY ( ) const

inlinevirtual

Definition at line 62 of file ossimDatum.h.

Referenced by ossimDatumFactory::writeCStructure().

62 {return theSigmaY;}

ossimDatum::theSigmaY

ossim_float64 theSigmaY

Definition: ossimDatum.h:139

◆ sigmaZ()

virtual ossim_float64 ossimDatum::sigmaZ ( ) const

inlinevirtual

Definition at line 63 of file ossimDatum.h.

Referenced by ossimDatumFactory::writeCStructure().

63 {return theSigmaZ;}

ossimDatum::theSigmaZ

ossim_float64 theSigmaZ

Definition: ossimDatum.h:140

◆ southLatitude()

virtual ossim_float64 ossimDatum::southLatitude ( ) const

inlinevirtual

Definition at line 67 of file ossimDatum.h.

Referenced by ossimDatumFactory::writeCStructure().

67 {return theSouthLatitude;}

ossimDatum::theSouthLatitude

ossim_float64 theSouthLatitude

Definition: ossimDatum.h:144

◆ westLongitude()

virtual ossim_float64 ossimDatum::westLongitude ( ) const

inlinevirtual

Definition at line 65 of file ossimDatum.h.

Referenced by ossimDatumFactory::writeCStructure().

65 {return theWestLongitude;}

ossimDatum::theWestLongitude

ossim_float64 theWestLongitude

Definition: ossimDatum.h:142

◆ withinMolodenskyRange()

bool ossimDatum::withinMolodenskyRange ( const ossimGpt & pt ) const

inlineprotected

Definition at line 124 of file ossimDatum.h.

References ossimGpt::latd().

Referenced by ossimThreeParamDatum::shiftFromWgs84(), and ossimThreeParamDatum::shiftToWgs84().

       {
          double lat = pt.latd();

          return ((lat < 89.75) && (lat > -89.75));
       }

Friends And Related Function Documentation

◆ ossimDatumFactory

friend class ossimDatumFactory

friend

Definition at line 24 of file ossimDatum.h.

Member Data Documentation

◆ theCode

ossimString ossimDatum::theCode

protected

Definition at line 133 of file ossimDatum.h.

Referenced by isEqualTo(), and operator==().

◆ theEastLongitude

ossim_float64 ossimDatum::theEastLongitude

protected

Definition at line 143 of file ossimDatum.h.

Referenced by isEqualTo(), and operator==().

◆ theEllipsoid

const ossimEllipsoid* ossimDatum::theEllipsoid

protected

Definition at line 136 of file ossimDatum.h.

Referenced by isEqualTo(), and operator==().

◆ theEpsgCode

ossim_uint32 ossimDatum::theEpsgCode

protected

Definition at line 134 of file ossimDatum.h.

Referenced by isEqualTo(), operator==(), and ossimDatum().

◆ theName

ossimString ossimDatum::theName

protected

Definition at line 135 of file ossimDatum.h.

Referenced by isEqualTo().

◆ theNorthLatitude

ossim_float64 ossimDatum::theNorthLatitude

protected

Definition at line 145 of file ossimDatum.h.

Referenced by isEqualTo(), and operator==().

◆ theSigmaX

ossim_float64 ossimDatum::theSigmaX

protected

Definition at line 138 of file ossimDatum.h.

Referenced by isEqualTo(), and operator==().

◆ theSigmaY

ossim_float64 ossimDatum::theSigmaY

protected

Definition at line 139 of file ossimDatum.h.

Referenced by isEqualTo(), and operator==().

◆ theSigmaZ

ossim_float64 ossimDatum::theSigmaZ

protected

Definition at line 140 of file ossimDatum.h.

Referenced by isEqualTo(), and operator==().

◆ theSouthLatitude

ossim_float64 ossimDatum::theSouthLatitude

protected

Definition at line 144 of file ossimDatum.h.

Referenced by isEqualTo(), and operator==().

◆ theWestLongitude

ossim_float64 ossimDatum::theWestLongitude

protected

Definition at line 142 of file ossimDatum.h.

Referenced by isEqualTo(), and operator==().

◆ TYPE_DATA

ossimDatum::TYPE_DATA

protected

Definition at line 147 of file ossimDatum.h.

The documentation for this class was generated from the following files:

Protected Attributes
ossimString	theCode

ossim_uint32	theEpsgCode

ossimString	theName

const ossimEllipsoid *	theEllipsoid

ossim_float64	theSigmaX

ossim_float64	theSigmaY

ossim_float64	theSigmaZ

ossim_float64	theWestLongitude

ossim_float64	theEastLongitude

ossim_float64	theSouthLatitude

ossim_float64	theNorthLatitude

	TYPE_DATA

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ ossimDatum()

◆ ~ossimDatum()

Member Function Documentation

◆ code()

◆ eastLongitude()

◆ ellipsoid()

◆ epsgCode()

◆ isEqualTo()

◆ isInside()

◆ isTheSameAs()

◆ molodenskyShift()

◆ name()

◆ northLatitude()

◆ operator!=()

◆ operator==()

◆ param1()

◆ param2()

◆ param3()

◆ param4()

◆ param5()

◆ param6()

◆ param7()

◆ shift()

◆ shiftFromWgs84()

◆ shiftToWgs84()

◆ sigmaX()

◆ sigmaY()

◆ sigmaZ()

◆ southLatitude()

◆ westLongitude()

◆ withinMolodenskyRange()

Friends And Related Function Documentation

◆ ossimDatumFactory

Member Data Documentation

◆ theCode

◆ theEastLongitude

◆ theEllipsoid

◆ theEpsgCode

◆ theName

◆ theNorthLatitude

◆ theSigmaX

◆ theSigmaY

◆ theSigmaZ

◆ theSouthLatitude

◆ theWestLongitude

◆ TYPE_DATA
