ossimKakaduCompressor Class Reference

#include <ossimKakaduCompressor.h>

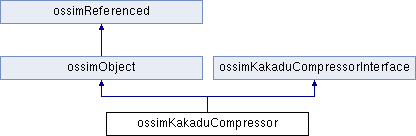

Inheritance diagram for ossimKakaduCompressor:
ossimObject ossimKakaduCompressorInterface ossimReferenced

Public Member Functions

 ossimKakaduCompressor ()
 default constructor More...

virtual ~ossimKakaduCompressor ()
 destructor More...

virtual void create (ossim::ostream *os, ossimScalarType scalar, ossim_uint32 bands, const ossimIrect &imageRect, const ossimIpt &tileSize, ossim_uint32 tilesToWrite, bool jp2)
 Create method. More...

void openJp2Codestream ()
 Calls "open_codestream" on the m_jp2Target. More...

virtual bool writeTile (ossimImageData &srcTile)
 Write tile method. More...

virtual void finish ()
 Finish method. More...

virtual void setQualityType (ossimKakaduCompressionQuality type)
 Sets the quality type. More...

ossimKakaduCompressionQuality getQualityType () const

void setReversibleFlag (bool reversible)
 Sets the m_reversible flag. More...

bool getReversibleFlag () const

virtual void setAlphaChannelFlag (bool flag)
 Set the writer to add an alpha channel to the output. More...

bool getAlphaChannelFlag () const
 Retrieve the writer's setting for whether or not to add an alpha channel to the output png image. More...

virtual void setLevels (ossim_int32 levels)
 Sets the number of levels. More...

ossim_int32 getLevels () const

void setThreads (ossim_int32 threads)
 Sets the number of threads. More...

ossim_int32 getThreads () const

void setOptions (const std::vector< ossimString > &options)
 Sets the options array. More...

void getOptions (std::vector< ossimString > &options) const
 Get the array of options. More...

bool saveState (ossimKeywordlist &kwl, const char *prefix=0) const
 saves the state of the object. More...

bool loadState (const ossimKeywordlist &kwl, const char *prefix=0)
 Method to the load (recreate) the state of an object from a keyword list. More...

virtual bool setProperty (ossimRefPtr< ossimProperty > property)
 Will set the property whose name matches the argument "property->getName()". More...

ossimRefPtr< ossimProperty > getProperty (const ossimString &name) const

void getPropertyNames (std::vector< ossimString > &propertyNames) const
 Pushes this's names onto the list of property names. More...

bool writeGeotiffBox (const ossimImageGeometry *geom, const ossimIrect &rect, const ossimFilename &tmpFile, ossimPixelType pixelType)
 Writes the geotiff box to the jp2. More...

bool writeGmlBox (const ossimImageGeometry *geom, const ossimIrect &rect)
 Writes the GML box to the jp2. More...

void initialize (ossimNitfJ2klraTag *j2klraTag, ossim_uint32 actualBitsPerPixel) const
 Initializes the tag. More...

virtual ossimString getLongName () const

virtual ossimString getClassName () const

- Public Member Functions inherited from ossimObject
 ossimObject ()

virtual ~ossimObject ()

virtual ossimObject * dup () const

virtual ossimString getShortName () const

virtual ossimString getDescription () const

virtual RTTItypeid getType () const

virtual bool canCastTo (ossimObject *obj) const

virtual bool canCastTo (const RTTItypeid &id) const

virtual bool canCastTo (const ossimString &parentClassName) const

virtual std::ostream & print (std::ostream &out) const
 Generic print method. More...

virtual bool isEqualTo (const ossimObject &obj, ossimCompareType compareType=OSSIM_COMPARE_FULL) const

virtual void accept (ossimVisitor &visitor)

- Public Member Functions inherited from ossimReferenced
 ossimReferenced ()

 ossimReferenced (const ossimReferenced &)

ossimReferenced & operator= (const ossimReferenced &)

void ref () const
 increment the reference count by one, indicating that this object has another pointer which is referencing it. More...

void unref () const
 decrement the reference count by one, indicating that a pointer to this object is referencing it. More...

void unref_nodelete () const
 decrement the reference count by one, indicating that a pointer to this object is referencing it. More...

int referenceCount () const

- Public Member Functions inherited from ossimKakaduCompressorInterface
 ossimKakaduCompressorInterface ()
 GP: I had to add this or windows would not link with the latest compiler. More...


Private Member Functions

void initializeCodingParams (kdu_core::kdu_params *cod, const ossimIrect &imageRect)

int getNumberOfLayers () const

ossimString getQualityTypeString () const

void setQualityTypeString (const ossimString &s)

void setLevels (kdu_core::kdu_params *cod, const ossimIrect &imageRect, ossim_int32 levels)
 Set levels. More...

void setCodeBlockSize (kdu_core::kdu_params *cod, ossim_int32 xSize, ossim_int32 ySize)
 Set code block size. More...

void setProgressionOrder (kdu_core::kdu_params *cod, ossim_int32 corder)
 Sets progression order. More...

void setWaveletKernel (kdu_core::kdu_params *cod, ossim_int32 kernel)
 Sets the wavelet kernel to use. More...

void setQualityLayers (kdu_core::kdu_params *cod, ossim_int32 layers)
 Sets the number of quality layers. More...

void setTlmTileCount (ossim_uint32 tilesToWrite)

void printCompressionQualityTypes (std::ostream &out) const


Private Attributes

ossimKakaduCompressedTarget * m_target

kdu_supp::jp2_family_tgt * m_jp2FamTgt

kdu_supp::jp2_target * m_jp2Target

kdu_core::kdu_codestream m_codestream

kdu_core::kdu_thread_env * m_threadEnv

kdu_core::kdu_thread_queue * m_threadQueue

int m_layerSpecCount
 Num specs provided in 'flush' calls. More...

std::vector< kdu_core::kdu_long > m_layerByteSizes
 Layer sizes provided in 'flush' calls. More...

ossimIrect m_imageRect
 Layer slopes array provided in 'flush' calls. More...

bool m_reversible
 Lossless or lossy. More...

bool m_alpha
 If true write alpha channel. More...

ossim_int32 m_levels
 Reduced resolution levels. More...

ossim_int32 m_threads
 Number of threads. More...

std::vector< ossimString > m_options
 Container for kakadu options to pass to kdu_params::parse_string. More...

ossimKakaduCompressionQuality m_qualityType

ossimRefPtr< ossimImageData > m_normTile
 tile to use for normalized float data. More...


Additional Inherited Members

- Public Types inherited from ossimKakaduCompressorInterface
enum  ossimKakaduCompressionQuality {
  OKP_UNKNOWN = 0, OKP_USER_DEFINED = 1, OKP_NUMERICALLY_LOSSLESS = 2, OKP_VISUALLY_LOSSLESS = 3,
  OKP_LOSSY = 4, OKP_LOSSY2 = 5, OKP_LOSSY3 = 6, OKP_EPJE = 7
}

- Protected Member Functions inherited from ossimReferenced
virtual ~ossimReferenced ()


Detailed Description

Definition at line 41 of file ossimKakaduCompressor.h.

Constructor & Destructor Documentation

◆ ossimKakaduCompressor()

ossimKakaduCompressor::ossimKakaduCompressor ( )

default constructor

Definition at line 260 of file ossimKakaduCompressor.cpp.

261  :
262  ossimObject(),
263  m_target(0),
264  m_jp2FamTgt(0),
265  m_jp2Target(0),
266  m_codestream(),
267  m_threadEnv(0),
268  m_threadQueue(0),
269  m_layerSpecCount(0),
270  m_layerByteSizes(0),
271  m_imageRect(),
272  m_reversible(true),
273  m_alpha(false),
274  m_levels(0),
275  m_threads(1),
276  m_options(),
277  m_qualityType(ossimKakaduCompressor::OKP_NUMERICALLY_LOSSLESS),
278  m_normTile(0)
279 {
280 }
ossimKakaduCompressor::m_reversible
bool m_reversible
Lossless or lossy.
Definition: ossimKakaduCompressor.h:370
ossimKakaduCompressor::m_options
std::vector< ossimString > m_options
Container for kakadu options to pass to kdu_params::parse_string.
Definition: ossimKakaduCompressor.h:382
ossimKakaduCompressor::m_alpha
bool m_alpha
If true write alpha channel.
Definition: ossimKakaduCompressor.h:373
ossimKakaduCompressor::m_layerByteSizes
std::vector< kdu_core::kdu_long > m_layerByteSizes
Layer sizes provided in &#39;flush&#39; calls.
Definition: ossimKakaduCompressor.h:361
ossimKakaduCompressor::m_normTile
ossimRefPtr< ossimImageData > m_normTile
tile to use for normalized float data.
Definition: ossimKakaduCompressor.h:387
ossimKakaduCompressor::m_jp2Target
kdu_supp::jp2_target * m_jp2Target
Definition: ossimKakaduCompressor.h:352
ossimKakaduCompressor::m_threadEnv
kdu_core::kdu_thread_env * m_threadEnv
Definition: ossimKakaduCompressor.h:354
ossimKakaduCompressor::m_levels
ossim_int32 m_levels
Reduced resolution levels.
Definition: ossimKakaduCompressor.h:376
ossimKakaduCompressor::m_imageRect
ossimIrect m_imageRect
Layer slopes array provided in &#39;flush&#39; calls.
Definition: ossimKakaduCompressor.h:367
ossimKakaduCompressor::m_target
ossimKakaduCompressedTarget * m_target
Definition: ossimKakaduCompressor.h:349
ossimKakaduCompressor::m_qualityType
ossimKakaduCompressionQuality m_qualityType
Definition: ossimKakaduCompressor.h:384
ossimKakaduCompressor::m_layerSpecCount
int m_layerSpecCount
Num specs provided in &#39;flush&#39; calls.
Definition: ossimKakaduCompressor.h:358
ossimKakaduCompressor::m_jp2FamTgt
kdu_supp::jp2_family_tgt * m_jp2FamTgt
Definition: ossimKakaduCompressor.h:351
ossimKakaduCompressor::m_threadQueue
kdu_core::kdu_thread_queue * m_threadQueue
Definition: ossimKakaduCompressor.h:355
ossimKakaduCompressor::m_codestream
kdu_core::kdu_codestream m_codestream
Definition: ossimKakaduCompressor.h:353
ossimKakaduCompressor::m_threads
ossim_int32 m_threads
Number of threads.
Definition: ossimKakaduCompressor.h:379

◆ ~ossimKakaduCompressor()

ossimKakaduCompressor::~ossimKakaduCompressor ( )
virtual

destructor

Definition at line 282 of file ossimKakaduCompressor.cpp.

References finish().

283 {
284  finish();
285 }
ossimKakaduCompressor::finish
virtual void finish()
Finish method.
Definition: ossimKakaduCompressor.cpp:964

Member Function Documentation

◆ create()

void ossimKakaduCompressor::create ( ossim::ostream *  os,
ossimScalarType  scalar,
ossim_uint32  bands,
const ossimIrect &  imageRect,
const ossimIpt &  tileSize,
ossim_uint32  tilesToWrite,
bool  jp2
)
virtual

Create method.

Parameters
osStream to write to.
scalarScalar type of source tiles to be fed to compressor.
bandsNumber of bands in source tiles to be fed to compressor.
imageRectThe image rectangle.
tileSizeThe size of a tile.
tilesTileWriteThe number of tiles to be written. If zero, the tlm marker segment will not be used.
jp2If true jp2 header and jp2 geotiff block will be written out.
Note
Throws ossimException on error.

Implements ossimKakaduCompressorInterface.

Definition at line 298 of file ossimKakaduCompressor.cpp.

305 {
306  static const char MODULE[] = "ossimKakaduCompressor::create";
307  if ( traceDebug() )
308  {
309  ossimNotify(ossimNotifyLevel_WARN) << MODULE << " entered...\n";
310  }
311
312 #if 0 /* Please leave for debug. (drb) */
313  cout << "levels: " << m_levels
314  << "\nreversible: " << m_reversible
315  << "\nthreads: " << m_threads
316  << "\nscalar: " << scalar
317  << "\nbands: " << bands
318  << "\nimageRect: " << imageRect
319  << "\ntileSize: " << tileSize
320  << "\njp2: " << jp2
321  << endl;
322 #endif
323
324  // In case we were reused.
325  finish();
326
327  if ( !os )
328  {
329  std::string errMsg = MODULE;
330  errMsg += " ERROR: Null stream passed to method!";
331  throw ossimException(errMsg);
332  }
333
334  if ( !os->good() )
335  {
336  std::string errMsg = MODULE;
337  errMsg += " ERROR: Stream state has error!";
338  throw ossimException(errMsg);
339  }
340
341  if ( ossim::getActualBitsPerPixel(scalar) > 31 )
342  {
343  // Data is not reversible.
344  if ( m_reversible )
345  {
346  std::string errMsg = MODULE;
347  errMsg += " ERROR: Reversible processing not possible with 32 bit data!";
348  throw ossimException(errMsg);
349  }
350
351  // Create a tile for normalization.
352  m_normTile = new ossimImageData(0,
353  OSSIM_NORMALIZED_FLOAT,
354  bands,
355  static_cast<ossim_uint32>(tileSize.x),
356  static_cast<ossim_uint32>(tileSize.y));
357  m_normTile->initialize();
358  }
359
360  // Store for tile clip.
361  m_imageRect = imageRect;
362
363  m_target = new ossimKakaduCompressedTarget();
364  m_target->setStream(os);
365
366  if (jp2)
367  {
368  //---
369  // Note the jp2_family_tgt and the jp2_target classes merely store
370  // the target and do not delete on close or destroy.
371  //---
372  m_jp2FamTgt = new kdu_supp::jp2_family_tgt();
373  m_jp2FamTgt->open(m_target);
374  m_jp2Target = new kdu_supp::jp2_target();
375  m_jp2Target->open(m_jp2FamTgt);
376  }
377
378  if (m_alpha)
379  {
380  if ( (bands != 1) && (bands != 3) )
381  {
382  m_alpha = false;
383  // if ( traceDebug() )
384  {
385  ossimNotify(ossimNotifyLevel_WARN)
386  << "Alpha channel being unset! Can only be used with "
387  << "one or three band data.\n"
388  << "Source image bands: " << bands << "\n";
389  }
390  }
391  }
392
393  kdu_core::siz_params siz;
394
395  // Set the number of components adding in alpha if set.
396  siz.set(Scomponents, 0, 0, static_cast<ossim_int32>( (m_alpha?bands+1:bands) ) );
397
398  // Set the verical size.
399  siz.set(Ssize, 0, 0, static_cast<ossim_int32>(imageRect.height()));
400  siz.set(Sdims, 0, 0, static_cast<ossim_int32>(imageRect.height()));
401
402  // Set the horizontal size.
403  siz.set(Ssize, 0, 1, static_cast<ossim_int32>(imageRect.width()));
404  siz.set(Sdims, 0, 1, static_cast<ossim_int32>(imageRect.width()));
405
406  // Set the tile verical size.
407  siz.set(Stiles, 0, 0, tileSize.y);
408
409  // Set the tile horizontal size.
410  siz.set(Stiles, 0, 1, tileSize.x);
411
412  // Set the signed bit.
413  siz.set(Ssigned, 0, 0, ossim::isSigned(scalar));
414
415  // Set the precision bits.
416  siz.set(Sprecision, 0, 0,
417  static_cast<ossim_int32>(ossim::getActualBitsPerPixel(scalar)) );
418
419  siz.finalize_all();
420
421  // Set up threads:
422  m_threadEnv = new kdu_core::kdu_thread_env();
423  m_threadEnv->create();
424  if ( m_threads == 1 )
425  {
426  // Look in prefs for threads:
427  const char* lookup = ossimPreferences::instance()->findPreference("kakadu_threads");
428  if ( lookup )
429  {
430  m_threads = ossimString::toUInt32(lookup);
431  }
432  }
433  if ( m_threads > 1 )
434  {
435  for (int nt=1; nt < m_threads; ++nt)
436  {
437  if ( !m_threadEnv->add_thread() )
438  {
439  if (traceDebug())
440  {
441  ossimNotify(ossimNotifyLevel_WARN)
442  << "Unable to create thread!\n";
443  }
444  }
445  }
446  }
447
448  m_threadQueue = m_threadEnv->add_queue(0, 0, "tile-compressor-root");
449
450  kdu_supp::jp2_dimensions dims;
451
452  if (jp2)
453  {
454  //---
455  // Configure jp2 header attributes jp2_dimensions', `
456  // jp2_colour', `jp2_channels', etc.) as appropriate.
457  //---
458
459  //---
460  // Set dimensional information
461  // (all redundant with the SIZ marker segment)
462  //---
463  dims = m_jp2Target->access_dimensions();
464  dims.init(&siz);
465
466  //---
467  // Set colour space information (mandatory)
468  // Since JP2 can only describe one and three band data if not three
469  // band we will use the first channel only.
470  //----
471  kdu_supp::jp2_colour colour = m_jp2Target->access_colour();
472  if (bands == 3)
473  {
474  colour.init( kdu_supp::JP2_sRGB_SPACE );
475  }
476  else
477  {
478  colour.init( kdu_supp::JP2_sLUM_SPACE );
479  }
480
481  //---
482  // Set the channel mapping. See note on colour space.
483  //---
484  int num_colours = static_cast<int>( (bands==3)?bands:1 );
485  kdu_supp::jp2_channels channels = m_jp2Target->access_channels();
486  channels.init(num_colours);
487  for (int c=0; c < num_colours; ++c)
488  {
489  channels.set_colour_mapping(c,c);
490  }
491
492  if (m_alpha)
493  {
494  if (bands == 1)
495  {
496  channels.set_opacity_mapping(0,1);
497  }
498  else if (bands == 3)
499  {
500  channels.set_opacity_mapping(0,3);
501  channels.set_opacity_mapping(1,3);
502  channels.set_opacity_mapping(2,3);
503  }
504  }
505
506  m_codestream.create(&siz, m_jp2Target, 0, 0, 0, m_threadEnv);
507  }
508  else // Not a jp2
509  {
510  m_codestream.create(&siz, m_target, 0, 0, 0, m_threadEnv);
511  }
512
513  // Requests the insertion of TLM (tile-part-length) marker.
514  setTlmTileCount(tilesToWrite);
515
516  //---
517  // Set up coding defaults.
518  //---
519  kdu_core::kdu_params* cod = m_codestream.access_siz()->access_cluster(COD_params);
520  if (cod)
521  {
522  initializeCodingParams(cod, imageRect);
523  }
524
525
526  // Set options if any.
527  std::vector<ossimString>::const_iterator optionIter = m_options.begin();
528  while ( optionIter != m_options.end() )
529  {
530  m_codestream.access_siz()->parse_string( (*optionIter).c_str() );
531  ++optionIter;
532  }
533
534  // Finalize preparation for compression
535  m_codestream.access_siz()->finalize_all();
536
537  if (jp2)
538  {
539  // Call `write_header' to write the JP2 header.
540  m_jp2Target->write_header();
541  m_jp2Target->close();
542
543  // Write out the geotiff_box:
544  // writeGeotffBox(m_jp2Target);
545
546  //---
547  // Optionally write additional boxes, opening them using the base
548  // object's
549  // `jp2_output_box::open_next' function, writing their contents (or
550  // sub-boxes) and closing them using `jp2_output_box::close'.
551  //---
552  }
553
554  if ( traceDebug() )
555  {
556  ossimNotify(ossimNotifyLevel_WARN) << MODULE << " exiting...\n";
557  }
558 }
ossimKakaduCompressor::m_reversible
bool m_reversible
Lossless or lossy.
Definition: ossimKakaduCompressor.h:370
ossimKakaduCompressor::finish
virtual void finish()
Finish method.
Definition: ossimKakaduCompressor.cpp:964
ossimKakaduCompressor::m_options
std::vector< ossimString > m_options
Container for kakadu options to pass to kdu_params::parse_string.
Definition: ossimKakaduCompressor.h:382
ossimIrect::height
ossim_uint32 height() const
Definition: ossimIrect.h:487
ossimKakaduCompressedTarget::setStream
void setStream(std::ostream *stream)
Sets the output stream.
Definition: ossimKakaduCompressedTarget.cpp:29
ossimKakaduCompressor::m_alpha
bool m_alpha
If true write alpha channel.
Definition: ossimKakaduCompressor.h:373
ossim::getActualBitsPerPixel
OSSIM_DLL ossim_uint32 getActualBitsPerPixel(ossimScalarType scalarType)
Get actual bits per pixel for a given scalar type.
Definition: ossimCommon.cpp:392
ossimString::toUInt32
ossim_uint32 toUInt32() const
Definition: ossimString.cpp:637
ossimImageData::initialize
virtual void initialize()
Initialize the data buffer.
Definition: ossimImageData.cpp:1352
ossimKakaduCompressor::m_normTile
ossimRefPtr< ossimImageData > m_normTile
tile to use for normalized float data.
Definition: ossimKakaduCompressor.h:387
ossim::isSigned
OSSIM_DLL bool isSigned(ossimScalarType scalarType)
Definition: ossimCommon.cpp:370
ossimPreferences::findPreference
const char * findPreference(const char *key) const
Definition: ossimPreferences.h:59
ossimKakaduCompressor::m_jp2Target
kdu_supp::jp2_target * m_jp2Target
Definition: ossimKakaduCompressor.h:352
ossimKakaduCompressor::m_threadEnv
kdu_core::kdu_thread_env * m_threadEnv
Definition: ossimKakaduCompressor.h:354
OSSIM_NORMALIZED_FLOAT
32 bit normalized floating point
Definition: ossimConstants.h:295
ossimKakaduCompressor::m_levels
ossim_int32 m_levels
Reduced resolution levels.
Definition: ossimKakaduCompressor.h:376
ossimIrect::width
ossim_uint32 width() const
Definition: ossimIrect.h:500
ossimPreferences::instance
static ossimPreferences * instance()
Definition: ossimPreferences.cpp:56
ossimKakaduCompressor::m_imageRect
ossimIrect m_imageRect
Layer slopes array provided in &#39;flush&#39; calls.
Definition: ossimKakaduCompressor.h:367
ossimKakaduCompressor::initializeCodingParams
void initializeCodingParams(kdu_core::kdu_params *cod, const ossimIrect &imageRect)
Definition: ossimKakaduCompressor.cpp:1541
ossimKakaduCompressor::m_target
ossimKakaduCompressedTarget * m_target
Definition: ossimKakaduCompressor.h:349
ossimIpt::y
ossim_int32 y
Definition: ossimIpt.h:142
ossimKakaduCompressedTarget
ossimKakaduCompressedTarget JPEG2000 (J2K) kdu_compressed_target that uses an ostream for writing to ...
Definition: ossimKakaduCompressedTarget.h:27
ossimKakaduCompressor::m_jp2FamTgt
kdu_supp::jp2_family_tgt * m_jp2FamTgt
Definition: ossimKakaduCompressor.h:351
ossimIpt::x
ossim_int32 x
Definition: ossimIpt.h:141
ossimKakaduCompressor::m_threadQueue
kdu_core::kdu_thread_queue * m_threadQueue
Definition: ossimKakaduCompressor.h:355
ossimKakaduCompressor::m_codestream
kdu_core::kdu_codestream m_codestream
Definition: ossimKakaduCompressor.h:353
ossimKakaduCompressor::setTlmTileCount
void setTlmTileCount(ossim_uint32 tilesToWrite)
Definition: ossimKakaduCompressor.cpp:2040
ossimKakaduCompressor::m_threads
ossim_int32 m_threads
Number of threads.
Definition: ossimKakaduCompressor.h:379
ossimNotify
OSSIMDLLEXPORT std::ostream & ossimNotify(ossimNotifyLevel level=ossimNotifyLevel_WARN)
Definition: ossimNotify.cpp:241

◆ finish()

void ossimKakaduCompressor::finish ( )
virtual

Finish method.

Every call to "create" should be matched by a "finish". Note the destructor calls finish.

Implements ossimKakaduCompressorInterface.

Definition at line 964 of file ossimKakaduCompressor.cpp.

References m_codestream, m_jp2FamTgt, m_jp2Target, m_layerByteSizes, m_normTile, m_target, m_threadEnv, m_threadQueue, ossimNotify(), and ossimNotifyLevel_WARN.

Referenced by ~ossimKakaduCompressor().

965 {
966  // Kakadu kdu_thread_entity::terminate throws exceptions...
967  try
968  {
969  // Cleanup processing environment
970  if ( m_threadEnv )
971  {
972  m_threadEnv->join(NULL,true); // Wait until all internal processing is complete.
973  m_threadEnv->terminate(m_threadQueue, true);
974  m_threadEnv->cs_terminate(m_codestream); // Terminates background codestream processing.
975
976  // kdu_codestream::destroy causing "double free or corruption" exception.
977  // m_codestream.destroy();
978
979  m_threadEnv->destroy();
980  delete m_threadEnv;
981  m_threadEnv = 0;
982  }
983
984  m_normTile = 0;
985
986  if (m_threadQueue)
987  {
988  m_threadQueue = 0;
989  }
990
991  if (m_jp2FamTgt)
992  {
993  delete m_jp2FamTgt;
994  m_jp2FamTgt = 0;
995  }
996
997  if (m_jp2Target)
998  {
999  delete m_jp2Target;
1000  m_jp2Target = 0;
1001  }
1002
1003  if (m_target)
1004  {
1005  delete m_target;
1006  m_target = 0;
1007  }
1008  }
1009  catch ( kdu_core::kdu_exception exc )
1010  {
1011  // kdu_exception is an int typedef.
1012  if ( m_threadEnv != 0 )
1013  {
1014  m_threadEnv->handle_exception(exc);
1015  }
1016  ostringstream e;
1017  e << "ossimKakaduNitfReader::~ossimKakaduNitfReader\n"
1018  << "Caught exception from kdu_region_decompressor: " << exc << "\n";
1019  ossimNotify(ossimNotifyLevel_WARN) << e.str() << std::endl;
1020  }
1021  catch ( std::bad_alloc& )
1022  {
1023  if ( m_threadEnv != 0 )
1024  {
1025  m_threadEnv->handle_exception(KDU_MEMORY_EXCEPTION);
1026  }
1027  std::string e =
1028  "Caught exception from kdu_region_decompressor: std::bad_alloc";
1029  ossimNotify(ossimNotifyLevel_WARN) << e << std::endl;
1030  }
1031  catch( ... )
1032  {
1033  std::string e =
1034  "Caught unhandled exception from kdu_region_decompressor";
1035  ossimNotify(ossimNotifyLevel_WARN) << e << std::endl;
1036  }
1037
1038  m_layerByteSizes.clear();
1039 }
ossim::ostringstream
std::basic_ostringstream< char > ostringstream
Class for char output memory streams.
Definition: ossimIosFwd.h:35
ossimKakaduCompressor::m_layerByteSizes
std::vector< kdu_core::kdu_long > m_layerByteSizes
Layer sizes provided in &#39;flush&#39; calls.
Definition: ossimKakaduCompressor.h:361
ossimKakaduCompressor::m_normTile
ossimRefPtr< ossimImageData > m_normTile
tile to use for normalized float data.
Definition: ossimKakaduCompressor.h:387
ossimKakaduCompressor::m_jp2Target
kdu_supp::jp2_target * m_jp2Target
Definition: ossimKakaduCompressor.h:352
ossimKakaduCompressor::m_threadEnv
kdu_core::kdu_thread_env * m_threadEnv
Definition: ossimKakaduCompressor.h:354
ossimKakaduCompressor::m_target
ossimKakaduCompressedTarget * m_target
Definition: ossimKakaduCompressor.h:349
ossimKakaduCompressor::m_jp2FamTgt
kdu_supp::jp2_family_tgt * m_jp2FamTgt
Definition: ossimKakaduCompressor.h:351
ossimKakaduCompressor::m_threadQueue
kdu_core::kdu_thread_queue * m_threadQueue
Definition: ossimKakaduCompressor.h:355
ossimKakaduCompressor::m_codestream
kdu_core::kdu_codestream m_codestream
Definition: ossimKakaduCompressor.h:353
ossimNotify
OSSIMDLLEXPORT std::ostream & ossimNotify(ossimNotifyLevel level=ossimNotifyLevel_WARN)
Definition: ossimNotify.cpp:241

◆ getAlphaChannelFlag()

bool ossimKakaduCompressor::getAlphaChannelFlag ( ) const

Retrieve the writer's setting for whether or not to add an alpha channel to the output png image.

Returns
true if the writer is configured to create an alpha channel.

Definition at line 1083 of file ossimKakaduCompressor.cpp.

References m_alpha.

1084 {
1085  return m_alpha;
1086 }
ossimKakaduCompressor::m_alpha
bool m_alpha
If true write alpha channel.
Definition: ossimKakaduCompressor.h:373

◆ getClassName()

ossimString ossimKakaduCompressor::getClassName ( ) const
virtual

Reimplemented from ossimObject.

Definition at line 292 of file ossimKakaduCompressor.cpp.

293 {
294  return ossimString("ossimKakaduCompressor");
295 }

◆ getLevels()

ossim_int32 ossimKakaduCompressor::getLevels ( ) const
Returns
The number of levels.

Definition at line 1096 of file ossimKakaduCompressor.cpp.

References m_levels.

1097 {
1098  return m_levels;
1099 }
ossimKakaduCompressor::m_levels
ossim_int32 m_levels
Reduced resolution levels.
Definition: ossimKakaduCompressor.h:376

◆ getLongName()

ossimString ossimKakaduCompressor::getLongName ( ) const
virtual

Reimplemented from ossimObject.

Definition at line 287 of file ossimKakaduCompressor.cpp.

288 {
289  return ossimString("ossim kakadu compressor");
290 }

◆ getNumberOfLayers()

int ossimKakaduCompressor::getNumberOfLayers ( ) const
private

Definition at line 1872 of file ossimKakaduCompressor.cpp.

References m_layerSpecCount.

1873 {
1874  return m_layerSpecCount;
1875 }
ossimKakaduCompressor::m_layerSpecCount
int m_layerSpecCount
Num specs provided in &#39;flush&#39; calls.
Definition: ossimKakaduCompressor.h:358

◆ getOptions()

void ossimKakaduCompressor::getOptions ( std::vector< ossimString > &  options) const

Get the array of options.

Parameters
optionsArray to initialize.

◆ getProperty()

ossimRefPtr< ossimProperty > ossimKakaduCompressor::getProperty ( const ossimString &  name) const
Parameters
nameName of property to return.
Returns
A pointer to a property object which matches "name".

Definition at line 1185 of file ossimKakaduCompressor.cpp.

References ossimKeywordNames::COMPRESSION_QUALITY_KW, and getQualityTypeString().

Referenced by ossimKakaduJp2Writer::getProperty(), and ossimKakaduNitfWriter::getProperty().

1187 {
1188  ossimRefPtr<ossimProperty> p = 0;
1189
1190  if (name == ossimKeywordNames::COMPRESSION_QUALITY_KW)
1191  {
1192  // property value
1193  ossimString value = getQualityTypeString();
1194
1195  if ( (value == COMPRESSION_QUALITY[ossimKakaduCompressor::OKP_USER_DEFINED] ) ||
1196  (value == COMPRESSION_QUALITY[ossimKakaduCompressor::OKP_UNKNOWN])
1197  )
1198  {
1199  value = COMPRESSION_QUALITY[ossimKakaduCompressor::OKP_NUMERICALLY_LOSSLESS];
1200  }
1201
1202  // constraint list
1203  vector<ossimString> constraintList;
1204  constraintList.push_back(
1205  COMPRESSION_QUALITY[ossimKakaduCompressor::OKP_NUMERICALLY_LOSSLESS]);
1206  constraintList.push_back(
1207  COMPRESSION_QUALITY[ossimKakaduCompressor::OKP_VISUALLY_LOSSLESS]);
1208  constraintList.push_back(
1209  COMPRESSION_QUALITY[ossimKakaduCompressor::OKP_LOSSY]);
1210  constraintList.push_back(
1211  COMPRESSION_QUALITY[ossimKakaduCompressor::OKP_LOSSY2]);
1212  constraintList.push_back(
1213  COMPRESSION_QUALITY[ossimKakaduCompressor::OKP_LOSSY3]);
1214  constraintList.push_back(
1215  COMPRESSION_QUALITY[ossimKakaduCompressor::OKP_EPJE]);
1216
1217  p = new ossimStringProperty(name,
1218  value,
1219  false, // not editable
1220  constraintList);
1221  }
1222  else if (name == LEVELS_KW)
1223  {
1224  p = new ossimNumericProperty(name, ossimString::toString(m_levels));
1225  }
1226  else if (name == REVERSIBLE_KW)
1227  {
1228  p = new ossimBooleanProperty(name, m_reversible);
1229  }
1230  else if (name == ADD_ALPHA_CHANNEL_KW)
1231  {
1232  p = new ossimBooleanProperty(name, m_alpha);
1233  }
1234  else if (name == THREADS_KW)
1235  {
1236  p = new ossimNumericProperty(name, ossimString::toString(m_threads));
1237  }
1238
1239  return p;
1240 }
ossimKakaduCompressor::m_reversible
bool m_reversible
Lossless or lossy.
Definition: ossimKakaduCompressor.h:370
ossimString::toString
static ossimString toString(bool aValue)
Numeric to string methods.
Definition: ossimString.cpp:907
ossimKakaduCompressor::m_alpha
bool m_alpha
If true write alpha channel.
Definition: ossimKakaduCompressor.h:373
ossimString::push_back
void push_back(char c)
Equivalent to insert(end(), c).
Definition: ossimString.h:905
ossimKakaduCompressor::m_levels
ossim_int32 m_levels
Reduced resolution levels.
Definition: ossimKakaduCompressor.h:376
ossimKakaduCompressor::getQualityTypeString
ossimString getQualityTypeString() const
Definition: ossimKakaduCompressor.cpp:1877
ossimKeywordNames::COMPRESSION_QUALITY_KW
static const char * COMPRESSION_QUALITY_KW
Definition: ossimKeywordNames.h:40
ossimKakaduCompressor::m_threads
ossim_int32 m_threads
Number of threads.
Definition: ossimKakaduCompressor.h:379

◆ getPropertyNames()

void ossimKakaduCompressor::getPropertyNames ( std::vector< ossimString > &  propertyNames) const

Pushes this's names onto the list of property names.

Parameters
propertyNamesarray to add this's property names to.

Definition at line 1242 of file ossimKakaduCompressor.cpp.

References ossimKeywordNames::COMPRESSION_QUALITY_KW.

Referenced by ossimKakaduJp2Writer::getPropertyNames(), ossimKakaduNitfWriter::getPropertyNames(), and ossimKakaduNitfOverviewBuilder::getPropertyNames().

1244 {
1245  propertyNames.push_back(ossimKeywordNames::COMPRESSION_QUALITY_KW);
1246  propertyNames.push_back(LEVELS_KW);
1247  propertyNames.push_back(REVERSIBLE_KW);
1248  propertyNames.push_back(THREADS_KW);
1249 }
ossimKeywordNames::COMPRESSION_QUALITY_KW
static const char * COMPRESSION_QUALITY_KW
Definition: ossimKeywordNames.h:40

◆ getQualityType()

ossimKakaduCompressor::ossimKakaduCompressionQuality ossimKakaduCompressor::getQualityType ( ) const
Returns
The quality type setting.

Definition at line 1062 of file ossimKakaduCompressor.cpp.

References m_qualityType.

1063 {
1064  return m_qualityType;
1065
1066 }
ossimKakaduCompressor::m_qualityType
ossimKakaduCompressionQuality m_qualityType
Definition: ossimKakaduCompressor.h:384

◆ getQualityTypeString()

ossimString ossimKakaduCompressor::getQualityTypeString ( ) const
private

Definition at line 1877 of file ossimKakaduCompressor.cpp.

Referenced by getProperty(), and saveState().

1878 {
1879  return COMPRESSION_QUALITY[m_qualityType];
1880 }
ossimKakaduCompressor::m_qualityType
ossimKakaduCompressionQuality m_qualityType
Definition: ossimKakaduCompressor.h:384

◆ getReversibleFlag()

bool ossimKakaduCompressor::getReversibleFlag ( ) const
Returns
The reversible flag.

Definition at line 1073 of file ossimKakaduCompressor.cpp.

References m_reversible.

1074 {
1075  return m_reversible;
1076 }
ossimKakaduCompressor::m_reversible
bool m_reversible
Lossless or lossy.
Definition: ossimKakaduCompressor.h:370

◆ getThreads()

ossim_int32 ossimKakaduCompressor::getThreads ( ) const
Returns
The number of threads.

Definition at line 1109 of file ossimKakaduCompressor.cpp.

References m_threads.

1110 {
1111  return m_threads;
1112 }
ossimKakaduCompressor::m_threads
ossim_int32 m_threads
Number of threads.
Definition: ossimKakaduCompressor.h:379

◆ initialize()

void ossimKakaduCompressor::initialize ( ossimNitfJ2klraTag *  j2klraTag,
ossim_uint32  actualBitsPerPixel
) const

Initializes the tag.

Parameters
j2klraTagPointer to tag. Initialized by this.
actualBitsPerPixelfor scalar type.

Definition at line 1506 of file ossimKakaduCompressor.cpp.

References ossimIrect::area(), m_imageRect, m_layerByteSizes, m_layerSpecCount, m_levels, ossimNitfJ2klraTag::setLayerBitRate(), ossimNitfJ2klraTag::setLayerId(), ossimNitfJ2klraTag::setLayersO(), ossimNitfJ2klraTag::setLevelsO(), and ossimNitfJ2klraTag::setOrigin().

1508 {
1509  if ( j2klraTag )
1510  {
1511  j2klraTag->setOrigin(0);
1512  j2klraTag->setLevelsO( (ossim_uint32)m_levels );
1513  // bands set in writer.
1514  j2klraTag->setLayersO( (ossim_uint32)m_layerSpecCount );
1515
1516  const ossim_float64 TP = m_imageRect.area();
1517  if ( TP )
1518  {
1519  for (ossim_uint32 id = 0; id < (ossim_uint32)m_layerSpecCount; ++id)
1520  {
1521  j2klraTag->setLayerId( id, id);
1522
1523  if ( m_layerByteSizes[id] != KDU_LONG_MAX )
1524  {
1525  j2klraTag->setLayerBitRate(
1526  id, ( m_layerByteSizes[id] / (TP * 0.125) ) );
1527  }
1528  else
1529  {
1530  //---
1531  // KDU_LONG_MAX indicates that the final quality layer should
1532  // include all compressed bits. (abpp=actuall bits per pixel)
1533  //---
1534  j2klraTag->setLayerBitRate( id, actualBitsPerPixel );
1535  }
1536  }
1537  }
1538  }
1539 }
ossimNitfJ2klraTag::setOrigin
bool setOrigin(ossim_uint32 origin)
Sets origin:
Definition: ossimNitfJ2klraTag.cpp:185
ossimKakaduCompressor::m_layerByteSizes
std::vector< kdu_core::kdu_long > m_layerByteSizes
Layer sizes provided in &#39;flush&#39; calls.
Definition: ossimKakaduCompressor.h:361
ossim_float64
double ossim_float64
Definition: ossimConstants.h:239
ossim_uint32
unsigned int ossim_uint32
Definition: ossimConstants.h:235
ossimKakaduCompressor::m_levels
ossim_int32 m_levels
Reduced resolution levels.
Definition: ossimKakaduCompressor.h:376
ossimNitfJ2klraTag::setLayerBitRate
bool setLayerBitRate(ossim_uint32 index, ossim_float64 bitRate)
Sets the bitrate from index.
Definition: ossimNitfJ2klraTag.cpp:309
ossimNitfJ2klraTag::setLevelsO
bool setLevelsO(ossim_uint32 levels)
Sets the number of wavelet levels in the original image.
Definition: ossimNitfJ2klraTag.cpp:200
ossimKakaduCompressor::m_imageRect
ossimIrect m_imageRect
Layer slopes array provided in &#39;flush&#39; calls.
Definition: ossimKakaduCompressor.h:367
ossimKakaduCompressor::m_layerSpecCount
int m_layerSpecCount
Num specs provided in &#39;flush&#39; calls.
Definition: ossimKakaduCompressor.h:358
ossimIrect::area
ossim_uint32 area() const
Definition: ossimIrect.h:396
ossimNitfJ2klraTag::setLayersO
bool setLayersO(ossim_uint32 layers)
Sets the number of layers in the original image.
Definition: ossimNitfJ2klraTag.cpp:230
ossimNitfJ2klraTag::setLayerId
bool setLayerId(ossim_uint32 index, ossim_uint32 id)
Sets the layer id for index.
Definition: ossimNitfJ2klraTag.cpp:294

◆ initializeCodingParams()

void ossimKakaduCompressor::initializeCodingParams ( kdu_core::kdu_params *  cod,
const ossimIrect &  imageRect
)
private

Definition at line 1541 of file ossimKakaduCompressor.cpp.

1543 {
1544  static const char MODULE[] = "ossimKakaduCompressor::initializeCodingParams";
1545
1546  if ( traceDebug() )
1547  {
1548  ossimNotify(ossimNotifyLevel_DEBUG) << MODULE << " entered...\n";
1549  }
1550
1551  if (cod)
1552  {
1553  // No ycc.
1554  cod->set(Cycc, 0, 0, false);
1555
1556  // Set the number of levels
1557  setLevels(cod, imageRect, m_levels);
1558
1559  // Set the block size. Note 64x64 is the current kakadu default.
1560  setCodeBlockSize(cod, 64, 64);
1561
1562  //---
1563  // Set the compression order. Note LRCP is the current kakadu default.
1564  // L=layer; R=resolution C=component; P=position
1565  //---
1566  if ( m_qualityType != OKP_EPJE )
1567  {
1568  setProgressionOrder(cod, Corder_LRCP);
1569  }
1570  else
1571  {
1572  setProgressionOrder(cod, Corder_RLCP);
1573  }
1574
1575  // total pixels
1576  const ossim_float64 TP = imageRect.area();
1577
1578  if ( traceDebug() )
1579  {
1580  ossimNotify(ossimNotifyLevel_DEBUG)
1581  << "quality type: " << getQualityTypeString() << endl;
1582  }
1583
1584  //---
1585  // Rate is a ratio of desired bytes / total bytes. So if you
1586  // want 4 bits per pixels it's total_pixels * 4 / 8 or
1587  // total_pixels * 4 * 0.125.
1588  //---
1589
1590  switch (m_qualityType)
1591  {
1592  case ossimKakaduCompressor::OKP_NUMERICALLY_LOSSLESS:
1593  case ossimKakaduCompressor::OKP_EPJE:
1594  {
1595  setReversibleFlag(true);
1596
1597  setWaveletKernel(cod, Ckernels_W5X3);
1598
1599  m_layerSpecCount = 20;
1600  m_layerByteSizes.resize(m_layerSpecCount);
1601
1602  m_layerByteSizes[0] =
1603  static_cast<kdu_core::kdu_long>(std::ceil( TP * 0.03125 * 0.125 ));
1604  m_layerByteSizes[1] =
1605  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.0625* 0.125 ));
1606  m_layerByteSizes[2] =
1607  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.125* 0.125 ));
1608  m_layerByteSizes[3] =
1609  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.25* 0.125 ));
1610  m_layerByteSizes[4] =
1611  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.5* 0.125 ));
1612  m_layerByteSizes[5] =
1613  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.6* 0.125 ));
1614  m_layerByteSizes[6] =
1615  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.7* 0.125 ));
1616  m_layerByteSizes[7] =
1617  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.8* 0.125 ));
1618  m_layerByteSizes[8] =
1619  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.9* 0.125 ));
1620  m_layerByteSizes[9] =
1621  static_cast<kdu_core::kdu_long>(std::ceil(TP * 1.0* 0.125 ));
1622  m_layerByteSizes[10] =
1623  static_cast<kdu_core::kdu_long>(std::ceil(TP * 1.1* 0.125 ));
1624  m_layerByteSizes[11] =
1625  static_cast<kdu_core::kdu_long>(std::ceil(TP * 1.2* 0.125 ));
1626  m_layerByteSizes[12] =
1627  static_cast<kdu_core::kdu_long>(std::ceil(TP * 1.3* 0.125 ));
1628  m_layerByteSizes[13] =
1629  static_cast<kdu_core::kdu_long>(std::ceil(TP * 1.5* 0.125 ));
1630  m_layerByteSizes[14] =
1631  static_cast<kdu_core::kdu_long>(std::ceil(TP * 1.7* 0.125 ));
1632  m_layerByteSizes[15] =
1633  static_cast<kdu_core::kdu_long>(std::ceil(TP * 2.0* 0.125 ));
1634  m_layerByteSizes[16] =
1635  static_cast<kdu_core::kdu_long>(std::ceil(TP * 2.3* 0.125 ));
1636  m_layerByteSizes[17] =
1637  static_cast<kdu_core::kdu_long>(std::ceil(TP * 2.8* 0.125 ));
1638  m_layerByteSizes[18] =
1639  static_cast<kdu_core::kdu_long>(std::ceil(TP * 3.5* 0.125 ));
1640
1641  //---
1642  // Indicate that the final quality layer should include all
1643  // compressed bits.
1644  //---
1645  m_layerByteSizes[19] = KDU_LONG_MAX;
1646
1647  break;
1648  }
1649  case ossimKakaduCompressor::OKP_VISUALLY_LOSSLESS:
1650  {
1651  setReversibleFlag(false);
1652
1653  setWaveletKernel(cod, Ckernels_W9X7);
1654
1655  m_layerSpecCount = 19;
1656  m_layerByteSizes.resize(m_layerSpecCount);
1657  m_layerByteSizes[0] =
1658  static_cast<kdu_core::kdu_long>(std::ceil( TP * 0.03125 * 0.125 ));
1659  m_layerByteSizes[1] =
1660  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.0625* 0.125 ));
1661  m_layerByteSizes[2] =
1662  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.125* 0.125 ));
1663  m_layerByteSizes[3] =
1664  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.25* 0.125 ));
1665  m_layerByteSizes[4] =
1666  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.5* 0.125 ));
1667  m_layerByteSizes[5] =
1668  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.6* 0.125 ));
1669  m_layerByteSizes[6] =
1670  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.7* 0.125 ));
1671  m_layerByteSizes[7] =
1672  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.8* 0.125 ));
1673  m_layerByteSizes[8] =
1674  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.9* 0.125 ));
1675  m_layerByteSizes[9] =
1676  static_cast<kdu_core::kdu_long>(std::ceil(TP * 1.0* 0.125 ));
1677  m_layerByteSizes[10] =
1678  static_cast<kdu_core::kdu_long>(std::ceil(TP * 1.1* 0.125 ));
1679  m_layerByteSizes[11] =
1680  static_cast<kdu_core::kdu_long>(std::ceil(TP * 1.2* 0.125 ));
1681  m_layerByteSizes[12] =
1682  static_cast<kdu_core::kdu_long>(std::ceil(TP * 1.3* 0.125 ));
1683  m_layerByteSizes[13] =
1684  static_cast<kdu_core::kdu_long>(std::ceil(TP * 1.5* 0.125 ));
1685  m_layerByteSizes[14] =
1686  static_cast<kdu_core::kdu_long>(std::ceil(TP * 1.7* 0.125 ));
1687  m_layerByteSizes[15] =
1688  static_cast<kdu_core::kdu_long>(std::ceil(TP * 2.0* 0.125 ));
1689  m_layerByteSizes[16] =
1690  static_cast<kdu_core::kdu_long>(std::ceil(TP * 2.3* 0.125 ));
1691  m_layerByteSizes[17] =
1692  static_cast<kdu_core::kdu_long>(std::ceil(TP * 2.8* 0.125 ));
1693  m_layerByteSizes[18] =
1694  static_cast<kdu_core::kdu_long>(std::ceil(TP * 3.5* 0.125 ));
1695  break;
1696  }
1697 #if 0
1698  case ossimKakaduCompressor::OKP_EPJE:
1699  {
1700  //---
1701  // Exploitation Preferred J2K Encoding(EPJE):
1702  // This is currently the same as VISUALLY_LOSSLESS but making
1703  // separate code block as I anticipate tweaking this.
1704  // drb - 16 Mar. 2016
1705  //---
1706  setReversibleFlag(false);
1707
1708  setWaveletKernel(cod, Ckernels_W9X7);
1709
1710  m_layerSpecCount = 19;
1711  m_layerByteSizes.resize(m_layerSpecCount);
1712  m_layerByteSizes[0] =
1713  static_cast<kdu_core::kdu_long>(std::ceil( TP * 0.03125 * 0.125 ));
1714  m_layerByteSizes[1] =
1715  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.0625* 0.125 ));
1716  m_layerByteSizes[2] =
1717  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.125* 0.125 ));
1718  m_layerByteSizes[3] =
1719  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.25* 0.125 ));
1720  m_layerByteSizes[4] =
1721  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.5* 0.125 ));
1722  m_layerByteSizes[5] =
1723  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.6* 0.125 ));
1724  m_layerByteSizes[6] =
1725  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.7* 0.125 ));
1726  m_layerByteSizes[7] =
1727  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.8* 0.125 ));
1728  m_layerByteSizes[8] =
1729  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.9* 0.125 ));
1730  m_layerByteSizes[9] =
1731  static_cast<kdu_core::kdu_long>(std::ceil(TP * 1.0* 0.125 ));
1732  m_layerByteSizes[10] =
1733  static_cast<kdu_core::kdu_long>(std::ceil(TP * 1.1* 0.125 ));
1734  m_layerByteSizes[11] =
1735  static_cast<kdu_core::kdu_long>(std::ceil(TP * 1.2* 0.125 ));
1736  m_layerByteSizes[12] =
1737  static_cast<kdu_core::kdu_long>(std::ceil(TP * 1.3* 0.125 ));
1738  m_layerByteSizes[13] =
1739  static_cast<kdu_core::kdu_long>(std::ceil(TP * 1.5* 0.125 ));
1740  m_layerByteSizes[14] =
1741  static_cast<kdu_core::kdu_long>(std::ceil(TP * 1.7* 0.125 ));
1742  m_layerByteSizes[15] =
1743  static_cast<kdu_core::kdu_long>(std::ceil(TP * 2.0* 0.125 ));
1744  m_layerByteSizes[16] =
1745  static_cast<kdu_core::kdu_long>(std::ceil(TP * 2.3* 0.125 ));
1746  m_layerByteSizes[17] =
1747  static_cast<kdu_core::kdu_long>(std::ceil(TP * 2.8* 0.125 ));
1748  m_layerByteSizes[18] =
1749  static_cast<kdu_core::kdu_long>(std::ceil(TP * 3.5* 0.125 ));
1750  break;
1751  }
1752 #endif
1753  case ossimKakaduCompressor::OKP_LOSSY:
1754  {
1755  setReversibleFlag(false);
1756
1757  setWaveletKernel(cod, Ckernels_W9X7);
1758
1759  m_layerSpecCount = 10;
1760  m_layerByteSizes.resize(m_layerSpecCount);
1761
1762  m_layerByteSizes[0] =
1763  static_cast<kdu_core::kdu_long>(std::ceil( TP * 0.03125 * 0.125 ));
1764  m_layerByteSizes[1] =
1765  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.0625* 0.125 ));
1766  m_layerByteSizes[2] =
1767  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.125* 0.125 ));
1768  m_layerByteSizes[3] =
1769  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.25* 0.125 ));
1770  m_layerByteSizes[4] =
1771  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.5* 0.125 ));
1772  m_layerByteSizes[5] =
1773  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.6* 0.125 ));
1774  m_layerByteSizes[6] =
1775  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.7* 0.125 ));
1776  m_layerByteSizes[7] =
1777  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.8* 0.125 ));
1778  m_layerByteSizes[8] =
1779  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.9* 0.125 ));
1780  m_layerByteSizes[9] =
1781  static_cast<kdu_core::kdu_long>(std::ceil(TP * 1.0* 0.125 ));
1782  break;
1783  }
1784
1785  case ossimKakaduCompressor::OKP_LOSSY2:
1786  {
1787  setReversibleFlag(false);
1788
1789  setWaveletKernel(cod, Ckernels_W9X7);
1790
1791  m_layerSpecCount = 5;
1792  m_layerByteSizes.resize(m_layerSpecCount);
1793
1794  m_layerByteSizes[0] =
1795  static_cast<kdu_core::kdu_long>(std::ceil( TP * 0.03125 * 0.125 ));
1796  m_layerByteSizes[1] =
1797  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.0625 * 0.125 ));
1798  m_layerByteSizes[2] =
1799  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.125 * 0.125 ));
1800  m_layerByteSizes[3] =
1801  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.25 * 0.125 ));
1802  m_layerByteSizes[4] =
1803  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.5 * 0.125 ));
1804  break;
1805  }
1806
1807  case ossimKakaduCompressor::OKP_LOSSY3:
1808  {
1809  setReversibleFlag(false);
1810
1811  setWaveletKernel(cod, Ckernels_W9X7);
1812
1813  m_layerSpecCount = 4;
1814  m_layerByteSizes.resize(m_layerSpecCount);
1815
1816  m_layerByteSizes[0] =
1817  static_cast<kdu_core::kdu_long>(std::ceil( TP * 0.03125 * 0.125 ));
1818  m_layerByteSizes[1] =
1819  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.0625 * 0.125 ));
1820  m_layerByteSizes[2] =
1821  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.125 * 0.125 ));
1822  m_layerByteSizes[3] =
1823  static_cast<kdu_core::kdu_long>(std::ceil(TP * 0.25 * 0.125 ));
1824  break;
1825  }
1826
1827  default:
1828  {
1829  m_layerSpecCount = 1;
1830  m_layerByteSizes.resize(m_layerSpecCount);
1831  m_layerByteSizes[0] = 0;
1832
1833  ossimNotify(ossimNotifyLevel_WARN)
1834  << MODULE << "unhandled compression_quality type! Valid types:\n";
1835  printCompressionQualityTypes( ossimNotify(ossimNotifyLevel_WARN) );
1836  }
1837
1838  } // matches: switch (m_qualityType)
1839
1840  //---
1841  // Set reversible flag, note, this controls the kernel.
1842  // W5X3(default) if reversible = true, W9X7 if reversible is false.
1843  //---
1844  cod->set(Creversible, 0, 0, m_reversible);
1845
1846  // Set the quality layers.
1847  setQualityLayers(cod, m_layerSpecCount);
1848
1849  if ( traceDebug() )
1850  {
1851  ossimNotify(ossimNotifyLevel_DEBUG)
1852  << "reversible: " << m_reversible
1853  << "\nLevels: " << m_levels
1854  << "\nLayers: " << m_layerSpecCount;
1855  for (int n = 0; n < m_layerSpecCount; ++n)
1856  {
1857  ossimNotify(ossimNotifyLevel_DEBUG)
1858  << "\nsize: " << m_layerByteSizes[n];
1859  }
1860  ossimNotify(ossimNotifyLevel_DEBUG) << std::endl;
1861  }
1862
1863
1864  } // matches: if (cod)
1865
1866  if ( traceDebug() )
1867  {
1868  ossimNotify(ossimNotifyLevel_DEBUG) << MODULE << " exited...\n";
1869  }
1870 }
ossimKakaduCompressor::setQualityLayers
void setQualityLayers(kdu_core::kdu_params *cod, ossim_int32 layers)
Sets the number of quality layers.
Definition: ossimKakaduCompressor.cpp:2024
ossimKakaduCompressor::m_reversible
bool m_reversible
Lossless or lossy.
Definition: ossimKakaduCompressor.h:370
ossimKakaduCompressor::setReversibleFlag
void setReversibleFlag(bool reversible)
Sets the m_reversible flag.
Definition: ossimKakaduCompressor.cpp:1068
ossimKakaduCompressor::setLevels
virtual void setLevels(ossim_int32 levels)
Sets the number of levels.
Definition: ossimKakaduCompressor.cpp:1088
ossimKakaduCompressor::m_layerByteSizes
std::vector< kdu_core::kdu_long > m_layerByteSizes
Layer sizes provided in &#39;flush&#39; calls.
Definition: ossimKakaduCompressor.h:361
ossim_float64
double ossim_float64
Definition: ossimConstants.h:239
ossimKakaduCompressor::setProgressionOrder
void setProgressionOrder(kdu_core::kdu_params *cod, ossim_int32 corder)
Sets progression order.
Definition: ossimKakaduCompressor.cpp:1974
ossimKakaduCompressor::setWaveletKernel
void setWaveletKernel(kdu_core::kdu_params *cod, ossim_int32 kernel)
Sets the wavelet kernel to use.
Definition: ossimKakaduCompressor.cpp:1996
n
os2<< "> n<< " > nendobj n
Definition: ossimPdfWriter.cpp:532
ossimKakaduCompressor::m_levels
ossim_int32 m_levels
Reduced resolution levels.
Definition: ossimKakaduCompressor.h:376
ossimKakaduCompressor::printCompressionQualityTypes
void printCompressionQualityTypes(std::ostream &out) const
Definition: ossimKakaduCompressor.cpp:2052
ossimKakaduCompressor::getQualityTypeString
ossimString getQualityTypeString() const
Definition: ossimKakaduCompressor.cpp:1877
ossimKakaduCompressor::m_qualityType
ossimKakaduCompressionQuality m_qualityType
Definition: ossimKakaduCompressor.h:384
ossimKakaduCompressor::m_layerSpecCount
int m_layerSpecCount
Num specs provided in &#39;flush&#39; calls.
Definition: ossimKakaduCompressor.h:358
ossimIrect::area
ossim_uint32 area() const
Definition: ossimIrect.h:396
ossimKakaduCompressor::setCodeBlockSize
void setCodeBlockSize(kdu_core::kdu_params *cod, ossim_int32 xSize, ossim_int32 ySize)
Set code block size.
Definition: ossimKakaduCompressor.cpp:1958
ossimNotify
OSSIMDLLEXPORT std::ostream & ossimNotify(ossimNotifyLevel level=ossimNotifyLevel_WARN)
Definition: ossimNotify.cpp:241

◆ loadState()

bool ossimKakaduCompressor::loadState ( const ossimKeywordlist &  kwl,
const char *  prefix = 0
)
virtual

Method to the load (recreate) the state of an object from a keyword list.

Return true if ok or false on error.

Reimplemented from ossimObject.

Definition at line 1294 of file ossimKakaduCompressor.cpp.

References ossimKeywordNames::COMPRESSION_QUALITY_KW, ossimKeywordlist::find(), and setQualityTypeString().

Referenced by ossimKakaduJp2Writer::loadState(), and ossimKakaduNitfWriter::loadState().

1296 {
1297  const char* value = 0;
1298
1299  value = kwl.find(prefix, ossimKeywordNames::COMPRESSION_QUALITY_KW);
1300  if(value)
1301  {
1302  setQualityTypeString( ossimString(value) );
1303  }
1304
1305  value = kwl.find(prefix, LEVELS_KW);
1306  if(value)
1307  {
1308  m_levels = ossimString(value).toInt32();
1309  }
1310
1311  value = kwl.find(prefix, REVERSIBLE_KW);
1312  if(value)
1313  {
1314  setReversibleFlag(ossimString(value).toBool());
1315  }
1316
1317  value = kwl.find(prefix, ADD_ALPHA_CHANNEL_KW);
1318  if(value)
1319  {
1320  m_alpha = ossimString(value).toBool();
1321  }
1322
1323  value = kwl.find(prefix, THREADS_KW);
1324  if(value)
1325  {
1326  m_threads = ossimString(value).toInt32();
1327  }
1328
1329  ossimString searchKey;
1330  if (prefix)
1331  {
1332  searchKey = prefix;
1333  }
1334  searchKey += "option";
1335  ossim_uint32 nOptions = kwl.numberOf(searchKey);
1336  for (ossim_uint32 i = 0; i < nOptions; ++i)
1337  {
1338  ossimString key = searchKey;
1339  key += ossimString::toString(i);
1340
1341  const char* lookup = kwl.find(key.c_str());
1342  if (lookup)
1343  {
1344  m_options.push_back(ossimString(lookup));
1345  }
1346  }
1347
1348  return true;
1349 }
ossimKakaduCompressor::setReversibleFlag
void setReversibleFlag(bool reversible)
Sets the m_reversible flag.
Definition: ossimKakaduCompressor.cpp:1068
ossimKeywordlist::numberOf
ossim_uint32 numberOf(const char *str) const
Definition: ossimKeywordlist.cpp:661
ossimKeywordlist::find
const char * find(const char *key) const
Definition: ossimKeywordlist.cpp:599
ossimKakaduCompressor::setQualityTypeString
void setQualityTypeString(const ossimString &s)
Definition: ossimKakaduCompressor.cpp:1882
ossimKakaduCompressor::m_options
std::vector< ossimString > m_options
Container for kakadu options to pass to kdu_params::parse_string.
Definition: ossimKakaduCompressor.h:382
ossimString::toString
static ossimString toString(bool aValue)
Numeric to string methods.
Definition: ossimString.cpp:907
ossimKakaduCompressor::m_alpha
bool m_alpha
If true write alpha channel.
Definition: ossimKakaduCompressor.h:373
ossimString::toInt32
ossim_int32 toInt32() const
Definition: ossimString.cpp:613
ossimString::toBool
bool toBool() const
String to numeric methods.
Definition: ossimString.cpp:451
ossim_uint32
unsigned int ossim_uint32
Definition: ossimConstants.h:235
ossimKakaduCompressor::m_levels
ossim_int32 m_levels
Reduced resolution levels.
Definition: ossimKakaduCompressor.h:376
ossimKeywordNames::COMPRESSION_QUALITY_KW
static const char * COMPRESSION_QUALITY_KW
Definition: ossimKeywordNames.h:40
ossimString::c_str
const char * c_str() const
Returns a pointer to a null-terminated array of characters representing the string&#39;s contents...
Definition: ossimString.h:396
ossimKakaduCompressor::m_threads
ossim_int32 m_threads
Number of threads.
Definition: ossimKakaduCompressor.h:379

◆ openJp2Codestream()

void ossimKakaduCompressor::openJp2Codestream ( )

Calls "open_codestream" on the m_jp2Target.

Note: Only valid if create method was called with jp2 = true.

Definition at line 560 of file ossimKakaduCompressor.cpp.

References m_jp2Target.

561 {
562  if (m_jp2Target)
563
564  {
565  //---
566  // Call `open_codestream' prior to any call to
567  // `kdu_codestream::flush'.
568  //---
569  m_jp2Target->open_codestream(true);
570  }
571 }
ossimKakaduCompressor::m_jp2Target
kdu_supp::jp2_target * m_jp2Target
Definition: ossimKakaduCompressor.h:352

◆ printCompressionQualityTypes()

void ossimKakaduCompressor::printCompressionQualityTypes ( std::ostream &  out) const
private

Definition at line 2052 of file ossimKakaduCompressor.cpp.

2053 {
2054  out << "compression_quality="
2055  << COMPRESSION_QUALITY[ossimKakaduCompressor::OKP_NUMERICALLY_LOSSLESS]
2056  << "\ncompression_quality="
2057  << COMPRESSION_QUALITY[ossimKakaduCompressor::OKP_VISUALLY_LOSSLESS]
2058  << "\ncompression_quality="
2059  << COMPRESSION_QUALITY[ossimKakaduCompressor::OKP_LOSSY]
2060  << "\ncompression_quality="
2061  << COMPRESSION_QUALITY[ossimKakaduCompressor::OKP_LOSSY2]
2062  << "\ncompression_quality="
2063  << COMPRESSION_QUALITY[ossimKakaduCompressor::OKP_LOSSY3]
2064  << "\ncompression_quality="
2065  << COMPRESSION_QUALITY[ossimKakaduCompressor::OKP_EPJE]
2066  << "\n";
2067 }

◆ saveState()

bool ossimKakaduCompressor::saveState ( ossimKeywordlist &  kwl,
const char *  prefix = 0
) const
virtual

saves the state of the object.

Reimplemented from ossimObject.

Definition at line 1251 of file ossimKakaduCompressor.cpp.

References ossimKeywordlist::add(), ossimKeywordNames::COMPRESSION_QUALITY_KW, and getQualityTypeString().

Referenced by ossimKakaduJp2Writer::saveState(), and ossimKakaduNitfWriter::saveState().

1253 {
1254  kwl.add( prefix,
1255  ossimKeywordNames::COMPRESSION_QUALITY_KW,
1256  getQualityTypeString().c_str(),
1257  true );
1258
1259  kwl.add( prefix,
1260  LEVELS_KW,
1261  ossimString::toString(m_levels),
1262  true );
1263
1264  kwl.add( prefix,
1265  REVERSIBLE_KW,
1266  ossimString::toString(m_reversible),
1267  true );
1268
1269  kwl.add( prefix,
1270  ADD_ALPHA_CHANNEL_KW,
1271  ossimString::toString(m_alpha),
1272  true );
1273
1274  kwl.add( prefix,
1275  THREADS_KW,
1276  ossimString::toString(m_threads),
1277  true );
1278
1279  std::vector<ossimString>::size_type size = m_options.size();
1280  for (ossim_uint32 i = 0; i < size; ++i)
1281  {
1282  ossimString key = "option";
1283  key += ossimString::toString(i);
1284
1285  kwl.add( prefix,
1286  key.c_str(),
1287  m_options[i].c_str(),
1288  true );
1289  }
1290
1291  return true;
1292 }
ossimKakaduCompressor::m_reversible
bool m_reversible
Lossless or lossy.
Definition: ossimKakaduCompressor.h:370
ossimKakaduCompressor::m_options
std::vector< ossimString > m_options
Container for kakadu options to pass to kdu_params::parse_string.
Definition: ossimKakaduCompressor.h:382
ossimString::toString
static ossimString toString(bool aValue)
Numeric to string methods.
Definition: ossimString.cpp:907
ossimKakaduCompressor::m_alpha
bool m_alpha
If true write alpha channel.
Definition: ossimKakaduCompressor.h:373
ossimKeywordlist::add
void add(const char *prefix, const ossimKeywordlist &kwl, bool overwrite=true)
Definition: ossimKeywordlist.cpp:177
size
yy_size_t size
Definition: ossimEquTokenizer.cpp:1782
ossim_uint32
unsigned int ossim_uint32
Definition: ossimConstants.h:235
ossimKakaduCompressor::m_levels
ossim_int32 m_levels
Reduced resolution levels.
Definition: ossimKakaduCompressor.h:376
ossimKakaduCompressor::getQualityTypeString
ossimString getQualityTypeString() const
Definition: ossimKakaduCompressor.cpp:1877
ossimKeywordNames::COMPRESSION_QUALITY_KW
static const char * COMPRESSION_QUALITY_KW
Definition: ossimKeywordNames.h:40
ossimString::c_str
const char * c_str() const
Returns a pointer to a null-terminated array of characters representing the string&#39;s contents...
Definition: ossimString.h:396
ossimKakaduCompressor::m_threads
ossim_int32 m_threads
Number of threads.
Definition: ossimKakaduCompressor.h:379

◆ setAlphaChannelFlag()

void ossimKakaduCompressor::setAlphaChannelFlag ( bool  flag)
virtual

Set the writer to add an alpha channel to the output.

Parameters
flagtrue to create an alpha channel.

Implements ossimKakaduCompressorInterface.

Definition at line 1078 of file ossimKakaduCompressor.cpp.

References m_alpha.

1079 {
1080  m_alpha = flag;
1081 }
ossimKakaduCompressor::m_alpha
bool m_alpha
If true write alpha channel.
Definition: ossimKakaduCompressor.h:373

◆ setCodeBlockSize()

void ossimKakaduCompressor::setCodeBlockSize ( kdu_core::kdu_params *  cod,
ossim_int32  xSize,
ossim_int32  ySize
)
private

Set code block size.

Nominal code-block dimensions (must be powers of 2 no less than 4 and no greater than 1024). Kakadu Default block dimensions are {64,64}

Parameters
xSize
ySize

Definition at line 1958 of file ossimKakaduCompressor.cpp.

1961 {
1962  //---
1963  // Nominal code-block dimensions (must be powers of 2 no less than 4 and
1964  // no greater than 1024).
1965  // Default block dimensions are {64,64}
1966  //---
1967  if (cod)
1968  {
1969  cod->set(Cblk,0,0,ySize);
1970  cod->set(Cblk,0,1,xSize);
1971  }
1972 }

◆ setLevels() [1/2]

void ossimKakaduCompressor::setLevels ( ossim_int32  levels)
virtual

Sets the number of levels.

This must be positive and at least 1. Default = 5 ( r0 - r5 )

Parameters
levelsLevels to set.

Implements ossimKakaduCompressorInterface.

Definition at line 1088 of file ossimKakaduCompressor.cpp.

References m_levels.

Referenced by setLevels().

1089 {
1090  if (levels)
1091  {
1092  m_levels = levels;
1093  }
1094 }
ossimKakaduCompressor::m_levels
ossim_int32 m_levels
Reduced resolution levels.
Definition: ossimKakaduCompressor.h:376

◆ setLevels() [2/2]

void ossimKakaduCompressor::setLevels ( kdu_core::kdu_params *  cod,
const ossimIrect &  imageRect,
ossim_int32  levels
)
private

Set levels.

Number of wavelet decomposition levels, or stages. May not exceed 32. Kakadu Default is 5

Parameters
codPointer to cod_params object.
imageRectThe image rectangle.
levelsNumber of levels.

Definition at line 1929 of file ossimKakaduCompressor.cpp.

References ossim::computeLevels(), and setLevels().

1932 {
1933  //---
1934  // Number of wavelet decomposition levels, or stages. May not exceed 32.
1935  // Default is 5
1936  //---
1937  if (cod)
1938  {
1939  if (levels == 0)
1940  {
1941  levels = (ossim_int32)ossim::computeLevels(imageRect);
1942  if (levels == 0)
1943  {
1944  levels = 1; // Must have at least one.
1945  }
1946  }
1947  if ( (levels < 1) || (levels > 32) )
1948  {
1949  levels = 5;
1950  }
1951  cod->set(Clevels, 0, 0, levels);
1952
1953  // Set the class attribute:
1954  setLevels(levels);
1955  }
1956 }
ossim::computeLevels
OSSIM_DLL ossim_uint32 computeLevels(const ossimIrect &rect)
Computes the number of decimation levels to get to the overview stop dimension.
Definition: ossimCommon.cpp:1253
ossimKakaduCompressor::setLevels
virtual void setLevels(ossim_int32 levels)
Sets the number of levels.
Definition: ossimKakaduCompressor.cpp:1088
ossim_int32
int ossim_int32
Definition: ossimConstants.h:234

◆ setOptions()

void ossimKakaduCompressor::setOptions ( const std::vector< ossimString > &  options)

Sets the options array.

These get passed to the generic kdu_params::parse_string method. Note this adds options to the list. Does not zero out existing options.

Parameters
optionsArray of options to add.

Definition at line 1114 of file ossimKakaduCompressor.cpp.

References m_options.

1115 {
1116  std::vector<ossimString>::const_iterator i = options.begin();
1117  while ( i != options.end() )
1118  {
1119  m_options.push_back( (*i) );
1120  ++i;
1121  }
1122 }
ossimKakaduCompressor::m_options
std::vector< ossimString > m_options
Container for kakadu options to pass to kdu_params::parse_string.
Definition: ossimKakaduCompressor.h:382

◆ setProgressionOrder()

void ossimKakaduCompressor::setProgressionOrder ( kdu_core::kdu_params *  cod,
ossim_int32  corder
)
private

Sets progression order.

Default progression order (may be overridden by Porder). The four character identifiers have the following interpretation: L=layer; R=resolution; C=component; P=position. The first character in the identifier refers to the index which progresses most slowly, while the last refers to the index which progresses most quickly. [Default is LRCP] Enumerations: (LRCP=0,RLCP=1,RPCL=2,PCRL=3,CPRL=4)

Parameters
corderThe progression order which should be one of the above enumerations.

Definition at line 1974 of file ossimKakaduCompressor.cpp.

1976 {
1977  //---
1978  // Default progression order (may be overridden by Porder).
1979  // The four character identifiers have the following interpretation:
1980  // L=layer; R=resolution; C=component; P=position.
1981  // The first character in the identifier refers to the index which
1982  // progresses most slowly, while the last refers to the index which
1983  // progresses most quickly. [Default is LRCP]
1984  // Enumerations: (LRCP=0,RLCP=1,RPCL=2,PCRL=3,CPRL=4)
1985  //---
1986  if (cod)
1987  {
1988  if ( (corder < 0) || (corder > 5) )
1989  {
1990  corder = Corder_LRCP;
1991  }
1992  cod->set(Corder,0,0,corder);
1993  }
1994 }

◆ setProperty()

bool ossimKakaduCompressor::setProperty ( ossimRefPtr< ossimProperty >  property)
virtual

Will set the property whose name matches the argument "property->getName()".

Parameters
propertyObject containing property to set.
Returns
true if property was consumed, false if not.

Implements ossimKakaduCompressorInterface.

Definition at line 1124 of file ossimKakaduCompressor.cpp.

References ossimRefPtr< T >::valid().

Referenced by ossimKakaduJp2Writer::setProperty(), ossimKakaduNitfWriter::setProperty(), and ossimKakaduNitfOverviewBuilder::setProperty().

1125 {
1126  bool consumed = false;
1127
1128  if ( property.valid() )
1129  {
1130  ossimString key = property->getName();
1131
1132  if ( traceDebug() )
1133  {
1134  ossimNotify(ossimNotifyLevel_DEBUG)
1135  << "ossimKakaduCompressor::setProperty DEBUG:"
1136  << "\nkey: " << key
1137  << " values: " << property->valueToString() << std::endl;
1138  }
1139
1140  if (key == ossimKeywordNames::COMPRESSION_QUALITY_KW)
1141  {
1142  setQualityTypeString(property->valueToString());
1143  consumed = true;
1144  }
1145  else if ( (key == LEVELS_KW) || (key == "Clevels") )
1146  {
1147  m_levels = property->valueToString().toInt32();
1148  consumed = true;
1149  }
1150  else if( (key == REVERSIBLE_KW) || (key == "Creversible") )
1151  {
1152  setReversibleFlag(property->valueToString().toBool());
1153  consumed = true;
1154  }
1155  else if (key == ADD_ALPHA_CHANNEL_KW)
1156  {
1157  m_alpha = property->valueToString().toBool();
1158  consumed = true;
1159  }
1160  else if ( key == THREADS_KW)
1161  {
1162  m_threads = property->valueToString().toInt32();
1163  consumed = true;
1164  }
1165  else if ( (key == "Clayers") ||
1166  (key == "Cprecincts") )
1167  {
1168  // Generic options passed through kdu_params::parse_string.
1169
1170  // Make in the form of "key=value" for kdu_params::parse_string.
1171  ossimString option = key;
1172  option += "=";
1173  option += property->valueToString();
1174
1175  // Add to list.
1176  m_options.push_back(option);
1177
1178  consumed = true;
1179  }
1180  }
1181
1182  return consumed;
1183 }
ossimProperty::valueToString
virtual void valueToString(ossimString &valueResult) const =0
ossimKakaduCompressor::setReversibleFlag
void setReversibleFlag(bool reversible)
Sets the m_reversible flag.
Definition: ossimKakaduCompressor.cpp:1068
ossimRefPtr::valid
bool valid() const
Definition: ossimRefPtr.h:75
ossimKakaduCompressor::setQualityTypeString
void setQualityTypeString(const ossimString &s)
Definition: ossimKakaduCompressor.cpp:1882
ossimKakaduCompressor::m_options
std::vector< ossimString > m_options
Container for kakadu options to pass to kdu_params::parse_string.
Definition: ossimKakaduCompressor.h:382
ossimKakaduCompressor::m_alpha
bool m_alpha
If true write alpha channel.
Definition: ossimKakaduCompressor.h:373
ossimKakaduCompressor::m_levels
ossim_int32 m_levels
Reduced resolution levels.
Definition: ossimKakaduCompressor.h:376
ossimKeywordNames::COMPRESSION_QUALITY_KW
static const char * COMPRESSION_QUALITY_KW
Definition: ossimKeywordNames.h:40
ossimKakaduCompressor::m_threads
ossim_int32 m_threads
Number of threads.
Definition: ossimKakaduCompressor.h:379
ossimNotify
OSSIMDLLEXPORT std::ostream & ossimNotify(ossimNotifyLevel level=ossimNotifyLevel_WARN)
Definition: ossimNotify.cpp:241

◆ setQualityLayers()

void ossimKakaduCompressor::setQualityLayers ( kdu_core::kdu_params *  cod,
ossim_int32  layers
)
private

Sets the number of quality layers.

Number of quality layers. May not exceed 16384. Kakadu default is 1.

Parameters
layers.

Definition at line 2024 of file ossimKakaduCompressor.cpp.

2026 {
2027  //---
2028  // Number of quality layers. May not exceed 16384. Kakadu default is 1.
2029  //---
2030  if (cod)
2031  {
2032  if ( (layers < 1) || (layers > 16384) )
2033  {
2034  layers = 1;
2035  }
2036  cod->set(Clayers,0,0,layers);
2037  }
2038 }

◆ setQualityType()

void ossimKakaduCompressor::setQualityType ( ossimKakaduCompressionQuality  type)
virtual

Sets the quality type.

Type enumerations: OKP_UNKNOWN = 0, OKP_USER_DEFINED = 1, OKP_NUMERICALLY_LOSSLESS = 2, OKP_VISUALLY_LOSSLESS = 3, OKP_LOSSY = 4, OKP_EPJE = 5

Parameters
typeSee enumeration for types.

Implements ossimKakaduCompressorInterface.

Definition at line 1041 of file ossimKakaduCompressor.cpp.

References m_qualityType, ossimKakaduCompressorInterface::OKP_EPJE, ossimKakaduCompressorInterface::OKP_LOSSY, ossimKakaduCompressorInterface::OKP_VISUALLY_LOSSLESS, and setReversibleFlag().

1042 {
1043  m_qualityType = type;
1044
1045  //---
1046  // Set the reversible flag for appropriate type.
1047  // Not sure what to set for unknown and user defined but visually lossless
1048  // and lossy need to set the reversible flag to false.
1049  //---
1050  if ( (type == ossimKakaduCompressor::OKP_VISUALLY_LOSSLESS) ||
1051  (type == ossimKakaduCompressor::OKP_LOSSY) ||
1052  (type == ossimKakaduCompressor::OKP_EPJE) )
1053  {
1054  setReversibleFlag(false);
1055  }
1056  else
1057  {
1058  setReversibleFlag(true);
1059  }
1060 }
ossimKakaduCompressor::setReversibleFlag
void setReversibleFlag(bool reversible)
Sets the m_reversible flag.
Definition: ossimKakaduCompressor.cpp:1068
ossimKakaduCompressor::m_qualityType
ossimKakaduCompressionQuality m_qualityType
Definition: ossimKakaduCompressor.h:384

◆ setQualityTypeString()

void ossimKakaduCompressor::setQualityTypeString ( const ossimString &  s)
private

Definition at line 1882 of file ossimKakaduCompressor.cpp.

References ossimString::downcase().

Referenced by loadState().

1883 {
1884  ossimString type = s;
1885  type.downcase();
1886
1887  if ( type == COMPRESSION_QUALITY[ossimKakaduCompressor::OKP_UNKNOWN] )
1888  {
1889  setQualityType(ossimKakaduCompressor::OKP_UNKNOWN);
1890  }
1891  else if ( type == COMPRESSION_QUALITY[ossimKakaduCompressor::OKP_USER_DEFINED] )
1892  {
1893  setQualityType(ossimKakaduCompressor::OKP_USER_DEFINED);
1894  }
1895  else if ( type == COMPRESSION_QUALITY[ossimKakaduCompressor::OKP_NUMERICALLY_LOSSLESS] )
1896  {
1897  setQualityType(ossimKakaduCompressor::OKP_NUMERICALLY_LOSSLESS);
1898  }
1899  else if ( type == COMPRESSION_QUALITY[ossimKakaduCompressor::OKP_VISUALLY_LOSSLESS] )
1900  {
1901  setQualityType(ossimKakaduCompressor::OKP_VISUALLY_LOSSLESS);
1902  }
1903  else if (type == "lossy")
1904  {
1905  setQualityType(ossimKakaduCompressor::OKP_LOSSY);
1906  }
1907  else if (type == "lossy2")
1908  {
1909  setQualityType(ossimKakaduCompressor::OKP_LOSSY2);
1910  }
1911  else if (type == "lossy3")
1912  {
1913  setQualityType(ossimKakaduCompressor::OKP_LOSSY3);
1914  }
1915  else if (type == "epje")
1916  {
1917  setQualityType(ossimKakaduCompressor::OKP_EPJE);
1918  }
1919  else
1920  {
1921  ossimNotify(ossimNotifyLevel_WARN)
1922  << "ossimKakaduCompressor::setQualityTypeString WARNING"
1923  << "\nUnhandled compression_quality type: " << type
1924  << "\n";
1925  printCompressionQualityTypes( ossimNotify(ossimNotifyLevel_WARN) );
1926  }
1927 }
ossimKakaduCompressor::printCompressionQualityTypes
void printCompressionQualityTypes(std::ostream &out) const
Definition: ossimKakaduCompressor.cpp:2052
ossimString::downcase
static ossimString downcase(const ossimString &aString)
Definition: ossimString.cpp:48
ossimKakaduCompressor::setQualityType
virtual void setQualityType(ossimKakaduCompressionQuality type)
Sets the quality type.
Definition: ossimKakaduCompressor.cpp:1041
ossimNotify
OSSIMDLLEXPORT std::ostream & ossimNotify(ossimNotifyLevel level=ossimNotifyLevel_WARN)
Definition: ossimNotify.cpp:241

◆ setReversibleFlag()

void ossimKakaduCompressor::setReversibleFlag ( bool  reversible)

Sets the m_reversible flag.

If set to true the compression will be lossless; if not, lossy. Default is lossless.

Parameters
reversibleFlag to set.

Definition at line 1068 of file ossimKakaduCompressor.cpp.

References m_reversible.

Referenced by setQualityType().

1069 {
1070  m_reversible = reversible;
1071 }
ossimKakaduCompressor::m_reversible
bool m_reversible
Lossless or lossy.
Definition: ossimKakaduCompressor.h:370

◆ setThreads()

void ossimKakaduCompressor::setThreads ( ossim_int32  threads)

Sets the number of threads.

This must be positive and at least 1. Default = 1 thread.

Parameters
threadsThe number of threads.

Definition at line 1101 of file ossimKakaduCompressor.cpp.

References m_threads.

1102 {
1103  if (threads)
1104  {
1105  m_threads = threads;
1106  }
1107 }
ossimKakaduCompressor::m_threads
ossim_int32 m_threads
Number of threads.
Definition: ossimKakaduCompressor.h:379

◆ setTlmTileCount()

void ossimKakaduCompressor::setTlmTileCount ( ossim_uint32  tilesToWrite)
private

Definition at line 2040 of file ossimKakaduCompressor.cpp.

References ossimString::c_str(), and m_codestream.

2041 {
2042  //---
2043  // Identifies the maximum number of tile-parts which will be written to the
2044  // code-stream for each tile.
2045  //
2046  // See Kakadu kdu_params.h "Macro = `ORGgen_tlm'" for more.
2047  //---
2048  ossimString s = "ORGgen_tlm=1";
2049  m_codestream.access_siz()->parse_string( s.c_str() );
2050 }
ossimString::c_str
const char * c_str() const
Returns a pointer to a null-terminated array of characters representing the string&#39;s contents...
Definition: ossimString.h:396
ossimKakaduCompressor::m_codestream
kdu_core::kdu_codestream m_codestream
Definition: ossimKakaduCompressor.h:353

◆ setWaveletKernel()

void ossimKakaduCompressor::setWaveletKernel ( kdu_core::kdu_params *  cod,
ossim_int32  kernel
)
private

Sets the wavelet kernel to use.

Wavelet kernels to use. The special value, ‘ATK’ means that an ATK (Arbitrary Transform Kernel) marker segment is used to store the DWT kernel. In this case, the ‘Catk’ attribute must be non-zero. [Default is W5X3 if ‘Creversible’ is true, W9X7 if ‘Creversible’ is false, and ATK if ‘Catk’ is non-zero.

Enumerations: (W9X7=0,W5X3=1,ATK=-1)

Parameters
kernelThe kernel which should be one of the above enumerations.

Definition at line 1996 of file ossimKakaduCompressor.cpp.

References m_reversible.

1998 {
1999  //---
2000  // Wavelet kernels to use. The special value, `ATK' means that an ATK
2001  // (Arbitrary Transform Kernel) marker segment is used to store the DWT
2002  // kernel. In this case, the `Catk' attribute must be non-zero.
2003  // [Default is W5X3 if `Creversible' is true, W9X7 if `Creversible' is
2004  // false, and ATK if `Catk' is non-zero.
2005  // Enumerations: (W9X7=0,W5X3=1,ATK=-1)
2006  //---
2007  if (cod)
2008  {
2009  if ( (kernel < -1) || (kernel > 1) )
2010  {
2011  if ( m_reversible )
2012  {
2013  kernel = Ckernels_W5X3;
2014  }
2015  else
2016  {
2017  kernel = Ckernels_W9X7;
2018  }
2019  }
2020  cod->set(Ckernels,0,0,kernel);
2021  }
2022 }
ossimKakaduCompressor::m_reversible
bool m_reversible
Lossless or lossy.
Definition: ossimKakaduCompressor.h:370

◆ writeGeotiffBox()

bool ossimKakaduCompressor::writeGeotiffBox ( const ossimImageGeometry *  geom,
const ossimIrect &  rect,
const ossimFilename &  tmpFile,
ossimPixelType  pixelType
)

Writes the geotiff box to the jp2.

Parameters
geomOutput image geometry.
rectOutput rectangle (view rect).
tmpFileTemp tiff file to write out for reading back in.
pixelTypeOSSIM_PIXEL_IS_POINT(0) or OSSIM_PIXEL_IS_AREA(1)
Returns
true on success, false on error.

Definition at line 1351 of file ossimKakaduCompressor.cpp.

References ossimRefPtr< T >::get(), ossimImageGeometry::getProjection(), m_jp2Target, ossimRefPtr< T >::valid(), and ossimGeoTiff::writeJp2GeotiffBox().

Referenced by ossimKakaduJp2Writer::writeGeotiffBox().

1355 {
1356  bool result = false;
1357
1358  if ( geom && m_jp2Target )
1359  {
1360  ossimRefPtr<const ossimImageGeometry> imgGeom = geom;
1361  ossimRefPtr<const ossimProjection> proj = imgGeom->getProjection();
1362  if ( proj.valid() )
1363  {
1364  //---
1365  // Make a temp file. No means currently write a tiff straight to
1366  // memory.
1367  //---
1368
1369  // Buffer to hold the tiff box.
1370  std::vector<ossim_uint8> buf;
1371
1372  // Write to buffer.
1373  if ( ossimGeoTiff::writeJp2GeotiffBox(tmpFile,
1374  rect,
1375  proj.get(),
1376  buf,
1377  pixelType) )
1378  {
1379  //---
1380  // JP2 box type uuid in ascii expressed as an int.
1381  // "u(75), u(75), i(69), d(64"
1382  //---
1383  const ossim_uint32 UUID_TYPE = 0x75756964;
1384
1385  // Write to a box on the JP2 file.
1386  m_jp2Target->open_next( UUID_TYPE );
1387  m_jp2Target->write(
1388  static_cast<kdu_core::kdu_byte*>(&buf.front()), static_cast<int>(buf.size()));
1389  m_jp2Target->close();
1390  result = true;
1391  }
1392  }
1393  }
1394
1395  return result;
1396
1397 } // End: ossimKakaduCompressor::writeGeotiffBox
ossimRefPtr::valid
bool valid() const
Definition: ossimRefPtr.h:75
ossimGeoTiff::writeJp2GeotiffBox
static bool writeJp2GeotiffBox(const ossimFilename &tmpFile, const ossimIrect &rect, const ossimProjection *proj, std::vector< ossim_uint8 > &buf, ossimPixelType pixelType)
Writes a geotiff box to a buffer.
Definition: ossimGeoTiff.cpp:847
ossimKakaduCompressor::m_jp2Target
kdu_supp::jp2_target * m_jp2Target
Definition: ossimKakaduCompressor.h:352
ossim_uint32
unsigned int ossim_uint32
Definition: ossimConstants.h:235
ossimImageGeometry::getProjection
const ossimProjection * getProjection() const
Access methods for projection (may be NULL pointer).
Definition: ossimImageGeometry.h:165

◆ writeGmlBox()

bool ossimKakaduCompressor::writeGmlBox ( const ossimImageGeometry *  geom,
const ossimIrect &  rect
)

Writes the GML box to the jp2.

Parameters
geomOutput image geometry.
rectOutput rectangle (view rect).
Returns
true on success, false on error.

Definition at line 1399 of file ossimKakaduCompressor.cpp.

References ossim::byteOrder(), ossimGmlSupportData::initialize(), m_jp2Target, OSSIM_LITTLE_ENDIAN, ossimEndian::swap(), and ossimGmlSupportData::write().

Referenced by ossimKakaduJp2Writer::writeGmlBox().

1401 {
1402  bool result = false;
1403
1404  if ( geom && m_jp2Target )
1405  {
1406  ossimGmlSupportData* gml = new ossimGmlSupportData();
1407  if ( gml->initialize( geom, rect ) )
1408  {
1409  // Write the xml to a stream.
1410  ostringstream xmlStr;
1411  if ( gml->write( xmlStr ) )
1412  {
1413  const ossim_uint8 ASOC_BOX_ID[4] =
1414  {
1415  0x61, 0x73, 0x6F, 0x63
1416  };
1417
1418  const ossim_uint8 LBL_BOX_ID[4] =
1419  {
1420  0x6C, 0x62, 0x6C, 0x20
1421  };
1422
1423  const ossim_uint8 XML_BOX_ID[4] =
1424  {
1425  0x78, 0x6D, 0x6C, 0x20
1426  };
1427
1428  ossim_uint32 xmlDataSize = xmlStr.str().size();
1429
1430  // Set the 1st asoc box size and type
1431  ossim_uint32 boxSize = xmlDataSize + 17 + 8 + 8 + 8 + 8 + 8 + 8;
1432  if (ossim::byteOrder() == OSSIM_LITTLE_ENDIAN)
1433  {
1434  ossimEndian endian;
1435  endian.swap( boxSize );
1436  }
1437
1438  const ossim_uint32 ASOC_BOX = 0x61736f63;
1439
1440  m_jp2Target->open_next( ASOC_BOX );
1441
1442  //m_jp2Target->close();
1443  //m_jp2Target->write( (const kdu_core::kdu_byte*)&boxSize, 4); // 1st asoc size
1444  // m_jp2Target->write( (const kdu_core::kdu_byte*)ASOC_BOX_ID, 4); // 1st asoc type
1445
1446  // Set the 1st lbl box size, type, and data
1447  boxSize = 8 + 8;
1448  if (ossim::byteOrder() == OSSIM_LITTLE_ENDIAN)
1449  {
1450  ossimEndian endian;
1451  endian.swap( boxSize );
1452  }
1453
1454  m_jp2Target->write((kdu_core::kdu_byte*)&boxSize, 4); // 1st lbl size
1455  m_jp2Target->write((const kdu_core::kdu_byte*)LBL_BOX_ID, 4); // 1st lbl type
1456  m_jp2Target->write((const kdu_core::kdu_byte*)"gml.data", 8); // 1st lbl data
1457
1458  // Set the 2nd asoc box size and type
1459  boxSize = xmlDataSize + 17 + 8 + 8 + 8;
1460  if (ossim::byteOrder() == OSSIM_LITTLE_ENDIAN)
1461  {
1462  ossimEndian endian;
1463  endian.swap( boxSize );
1464  }
1465  m_jp2Target->write((kdu_core::kdu_byte*)&boxSize, 4); // 2nd asoc size
1466  m_jp2Target->write((const kdu_core::kdu_byte*)ASOC_BOX_ID, 4); // 2nd asoc type
1467
1468  // Set the 2nd lbl box size, type, and data
1469  boxSize = 17 + 8;
1470  if (ossim::byteOrder() == OSSIM_LITTLE_ENDIAN)
1471  {
1472  ossimEndian endian;
1473  endian.swap( boxSize );
1474  }
1475  m_jp2Target->write((kdu_core::kdu_byte*)&boxSize, 4); // 2nd lbl size
1476  m_jp2Target->write((const kdu_core::kdu_byte*)LBL_BOX_ID, 4); // 2nd lbl type
1477  m_jp2Target->write((const kdu_core::kdu_byte*)"gml.root-instance", 17); // 2nd lbl data
1478
1479  // Set the xml box size, type, and data
1480  boxSize = xmlDataSize + 8;
1481  if (ossim::byteOrder() == OSSIM_LITTLE_ENDIAN)
1482  {
1483  ossimEndian endian;
1484  endian.swap( boxSize );
1485  }
1486  m_jp2Target->write((kdu_core::kdu_byte*)&boxSize, 4); // xml size
1487  m_jp2Target->write((const kdu_core::kdu_byte*)XML_BOX_ID, 4); // xml type
1488  m_jp2Target->write((const kdu_core::kdu_byte*)xmlStr.str().data(),
1489  xmlDataSize); // xml data
1490
1491  m_jp2Target->close();
1492  result = true;
1493  }
1494  }
1495
1496  // cleanup:
1497  delete gml;
1498  gml = 0;
1499
1500  } // if ( geom && m_jp2Target )
1501
1502  return result;
1503
1504 } // End: ossimKakaduCompressor::writeGmlBox
ossim::ostringstream
std::basic_ostringstream< char > ostringstream
Class for char output memory streams.
Definition: ossimIosFwd.h:35
ossim::byteOrder
OSSIM_DLL ossimByteOrder byteOrder()
Definition: ossimCommon.cpp:54
ossimGmlSupportData::write
bool write(std::ostream &os)
Write xml doc to stream.
Definition: ossimGmlSupportData.cpp:525
ossimGmlSupportData
GML support data class.
Definition: ossimGmlSupportData.h:29
ossimKakaduCompressor::m_jp2Target
kdu_supp::jp2_target * m_jp2Target
Definition: ossimKakaduCompressor.h:352
ossim_uint32
unsigned int ossim_uint32
Definition: ossimConstants.h:235
ossimGmlSupportData::initialize
bool initialize(const ossimImageGeometry *geom, const ossimIrect &rect)
Initializes gml block from geometry file.
Definition: ossimGmlSupportData.cpp:78
ossimEndian::swap
void swap(ossim_sint8 &)
Definition: ossimEndian.h:26
ossim_uint8
unsigned char ossim_uint8
Definition: ossimConstants.h:227

◆ writeTile()

bool ossimKakaduCompressor::writeTile ( ossimImageData &  srcTile)
virtual

Write tile method.

Writes tiles stream provided to create method. Note that tiles should be fed to compressor in left to right, top to bottom order.

Parameters
srcTileThe source tile to write.
Returns
true on success, false on error.

Implements ossimKakaduCompressorInterface.

Definition at line 573 of file ossimKakaduCompressor.cpp.

References ossim::getActualBitsPerPixel(), ossimImageData::getAlphaBuf(), ossimImageData::getBuf(), ossimDataObject::getDataObjectStatus(), ossimImageData::getHeight(), ossimImageData::getNumberOfBands(), ossimImageData::getOrigin(), ossimRectilinearDataObject::getScalarType(), ossimImageData::getWidth(), ossim::isSigned(), ossimIrect::lr(), m_alpha, m_codestream, m_imageRect, m_threadEnv, m_threadQueue, ossim::min(), OSSIM_NULL, OSSIM_UINT8, ossimIrect::ul(), ossimIpt::x, and ossimIpt::y.

574 {
575  bool result = true;
576
577  if (srcTile.getDataObjectStatus() != OSSIM_NULL)
578  {
579  // tile samples:
580  const ossim_int32 TILE_SAMPS =
581  static_cast<ossim_int32>(srcTile.getWidth());
582
583  // Samples to copy clipping to image width:
584  const ossim_int32 SAMPS =
585  ossim::min(TILE_SAMPS, m_imageRect.lr().x-srcTile.getOrigin().x+1);
586
587  // tile lines:
588  const ossim_int32 TILE_LINES =
589  static_cast<ossim_int32>(srcTile.getHeight());
590
591  // Lines to copy:
592  const ossim_int32 LINES =
593  ossim::min(TILE_LINES, m_imageRect.lr().y-srcTile.getOrigin().y+1);
594
595  // Get the tile index.
596  kdu_core::kdu_coords tileIndex;
597  tileIndex.x = (srcTile.getOrigin().x - m_imageRect.ul().x) / TILE_SAMPS;
598  tileIndex.y = (srcTile.getOrigin().y - m_imageRect.ul().y) / TILE_LINES;
599
600  kdu_core::kdu_tile tile = m_codestream.open_tile(tileIndex);
601
602  kdu_core::kdu_dims tile_dims;
603  m_codestream.get_tile_dims(tileIndex, 0, tile_dims);
604
605  if ( tile.exists() )
606  {
607  // Bands:
608  const ossim_int32 BANDS =
609  static_cast<ossim_int32>(m_alpha?srcTile.getNumberOfBands()+1:
610  srcTile.getNumberOfBands());
611  tile.set_components_of_interest(BANDS);
612
613  // Scalar:
614  const ossimScalarType SCALAR = srcTile.getScalarType();
615
616  // Signed:
617  const bool SIGNED = ossim::isSigned(SCALAR);
618
619  // Set up common things to both scalars.
620  std::vector<kdu_core::kdu_push_ifc> engine(BANDS);
621  std::vector<kdu_core::kdu_line_buf> lineBuf(BANDS);
622
623  // Precision:
624  ossim_int32 src_bits = ossim::getActualBitsPerPixel(SCALAR);
625
626  std::vector<ossim_int32> original_bits(BANDS);
627
628  // Initialize tile-components
629  kdu_core::kdu_tile_comp tc;
630  kdu_core::kdu_resolution res;
631  bool reversible;
632  bool use_shorts;
633  kdu_core::kdu_sample_allocator allocator;
634
635  ossim_int32 band;
636  for (band = 0; band < BANDS; ++band)
637  {
638  original_bits[band] = m_codestream.get_bit_depth(band,true);
639
640  tc = tile.access_component(band);
641  res = tc.access_resolution();
642  if ( ossim::getActualBitsPerPixel(SCALAR) > 31 )
643  {
644  // Data is not reversible.
645  reversible = false;
646  use_shorts = false;
647  }
648  else
649  {
650  reversible = tc.get_reversible();
651  use_shorts = (tc.get_bit_depth(true) <= 16);
652  }
653
654  res.get_dims(tile_dims);
655
656  engine[band] = kdu_core::kdu_analysis(res,
657  &allocator,
658  use_shorts,
659  1.0F,
660  0,
661  m_threadEnv,
662  m_threadQueue);
663
664  lineBuf[band].pre_create(&allocator,
665  SAMPS,
666  reversible, // tmp drb
667  use_shorts,
668  0, // extend_left
669  0); // extend_right
670  }
671
672  // Complete sample buffer allocation
673  allocator.finalize( m_codestream );
674
675  for (band = 0; band < BANDS; ++band)
676  {
677  lineBuf[band].create();
678  }
679
680  switch (SCALAR)
681  {
682  case OSSIM_UINT8:
683  {
684  std::vector<kdu_core::kdu_byte*> srcBuf(BANDS);
685  for (band = 0; band < BANDS; ++band)
686  {
687  void* p = const_cast<void*>(srcTile.getBuf(band));
688  srcBuf[band] = static_cast<kdu_core::kdu_byte*>(p);
689  }
690  if (m_alpha)
691  {
692  // Ugly casting...
693  const void* cp =
694  static_cast<const void*>(srcTile.getAlphaBuf());
695  void* p = const_cast<void*>(cp);
696  srcBuf[BANDS-1] = static_cast<kdu_core::kdu_byte*>(p);
697  }
698  for (ossim_int32 line = 0; line < LINES; ++line)
699  {
700  for (band = 0; band < BANDS; ++band)
701  {
702  transfer_bytes(lineBuf[band],
703  srcBuf[band],
704  SAMPS,
705  1,
706  src_bits,
707  original_bits[band]);
708
709  engine[band].push(lineBuf[band], m_threadEnv);
710
711  // Increment the line buffers.
712  srcBuf[band] = srcBuf[band]+TILE_SAMPS;
713  }
714  }
715  break;
716  }
717  case OSSIM_UINT11:
718  case OSSIM_UINT12:
719  case OSSIM_UINT13:
720  case OSSIM_UINT14:
721  case OSSIM_UINT15:
722  case OSSIM_UINT16:
723  {
724  if (!m_alpha)
725  {
726  std::vector<kdu_core::kdu_int16*> srcBuf(BANDS);
727  for (band = 0; band < BANDS; ++band)
728  {
729  void* p = const_cast<void*>(srcTile.getBuf(band));
730  srcBuf[band] = static_cast<kdu_core::kdu_int16*>(p);
731  }
732
733  for (ossim_int32 line = 0; line < LINES; ++line)
734  {
735  for (band = 0; band < BANDS; ++band)
736  {
737  transfer_words(lineBuf[band],
738  srcBuf[band],
739  SAMPS,
740  1,
741  src_bits,
742  original_bits[band],
743  SIGNED);
744
745  engine[band].push(lineBuf[band], m_threadEnv);
746
747  // Increment the line buffers.
748  srcBuf[band] = srcBuf[band]+TILE_SAMPS;
749  }
750  }
751  }
752  else // Need to write an alpha channel.
753  {
754  //---
755  // Alpha currently stored a eight bit so we must move 255 to
756  // 2047 (11 bit) or 255 to 65535 for 16 bit.
757  //---
758  const ossim_float64 SCALAR_MAX = ossim::defaultMax( SCALAR );
759  ossim_float64 d = SCALAR_MAX / 255.0;
760
761  ossim_int32 dataBands = BANDS-1;
762  std::vector<kdu_core::kdu_int16*> srcBuf(dataBands);
763  for (band = 0; band < dataBands; ++band)
764  {
765  void* p = const_cast<void*>(srcTile.getBuf(band));
766  srcBuf[band] = static_cast<kdu_core::kdu_int16*>(p);
767  }
768
769  const ossim_uint8* alphaPtr = srcTile.getAlphaBuf();;
770  std::vector<kdu_core::kdu_int16> alphaLine(SAMPS);
771
772  for (ossim_int32 line = 0; line < LINES; ++line)
773  {
774  for (band = 0; band < dataBands; ++band)
775  {
776  transfer_words(lineBuf[band],
777  srcBuf[band],
778  SAMPS,
779  1,
780  src_bits,
781  original_bits[band],
782  SIGNED);
783
784  engine[band].push(lineBuf[band], m_threadEnv);
785
786  // Increment the line buffers.
787  srcBuf[band] = srcBuf[band]+TILE_SAMPS;
788  }
789
790  // Transfer alpha channel:
791  for (ossim_int32 samp = 0; samp < SAMPS; ++samp)
792  {
793  alphaLine[samp] = static_cast<kdu_core::kdu_int16>(alphaPtr[samp]*d);
794  }
795
796  transfer_words(lineBuf[band],
797  &alphaLine.front(),
798  SAMPS,
799  1,
800  src_bits,
801  original_bits[band],
802  SIGNED);
803
804  engine[band].push(lineBuf[band], m_threadEnv);
805
806  alphaPtr = alphaPtr+TILE_SAMPS;
807  }
808  } // End of alpha section.
809  break;
810  }
811  case OSSIM_SINT16:
812  {
813  std::vector<ossim_sint16*> srcBuf(BANDS);
814  for (band = 0; band < BANDS; ++band)
815  {
816  void* p = const_cast<void*>(srcTile.getBuf(band));
817  srcBuf[band] = static_cast<ossim_sint16*>(p);
818  }
819
820  for (ossim_int32 line = 0; line < LINES; ++line)
821  {
822  for (band = 0; band < BANDS; ++band)
823  {
824  transfer_words(lineBuf[band],
825  srcBuf[band],
826  SAMPS,
827  1,
828  src_bits,
829  original_bits[band],
830  SIGNED);
831
832  engine[band].push(lineBuf[band], m_threadEnv);
833
834  // Increment the line buffers.
835  srcBuf[band] = srcBuf[band]+TILE_SAMPS;
836  }
837  }
838  break;
839  }
840
841  //---
842  // ??? This should probably take the same path as OSSIM_SINT32 data.
843  // Need test case.
844  //---
845  case OSSIM_UINT32:
846  {
847  std::vector<kdu_core::kdu_int32*> srcBuf(BANDS);
848  for (band = 0; band < BANDS; ++band)
849  {
850  void* p = const_cast<void*>(srcTile.getBuf(band));
851  srcBuf[band] = static_cast<kdu_core::kdu_int32*>(p);
852  }
853
854  for (ossim_int32 line = 0; line < LINES; ++line)
855  {
856  for (band = 0; band < BANDS; ++band)
857  {
858  transfer_dwords(lineBuf[band],
859  srcBuf[band],
860  SAMPS,
861  1,
862  src_bits,
863  original_bits[band],
864  SIGNED);
865
866  engine[band].push(lineBuf[band], m_threadEnv);
867
868  // Increment the line buffers.
869  srcBuf[band] = srcBuf[band]+TILE_SAMPS;
870  }
871  }
872  break;
873  }
874
875  case OSSIM_SINT32:
876  case OSSIM_FLOAT32:
877  {
878  //---
879  // Kakadu wants float data normalized between -0.5 and 0.5:
880  // 1) Normalize between 0.0 and 1.0 using ossim code.
881  // 2) Copy applying -0.5 offset.
882  //---
883  srcTile.copyTileToNormalizedBuffer(m_normTile->getFloatBuf());
884
885  std::vector<ossim_float32*> srcBuf(BANDS);
886  for (band = 0; band < BANDS; ++band)
887  {
888  srcBuf[band] = m_normTile->getFloatBuf(band);
889  }
890
891  for (ossim_int32 line = 0; line < LINES; ++line)
892  {
893  for (band = 0; band < BANDS; ++band)
894  {
895  kdu_core::kdu_sample32* dp = lineBuf[band].get_buf32();
896  for (ossim_int32 samp = 0; samp < SAMPS; ++samp)
897  {
898  dp[samp].fval = srcBuf[band][samp] - 0.5; // -.5 for kakadu.
899  }
900  engine[band].push(lineBuf[band], m_threadEnv);
901
902  // Increment the line buffers.
903  srcBuf[band] = srcBuf[band]+TILE_SAMPS;
904  }
905  }
906  break;
907  }
908  default:
909  {
910  ossimNotify(ossimNotifyLevel_WARN)
911  << __FILE__ << " " << __LINE__ << " Unhandle scalar!\n";
912  result = false;
913  break;
914  }
915
916  } // End: switch(scalar)
917
918  if (m_threadEnv)
919  {
920  // m_threadEnv->synchronize(m_threadQueue);
921
922  //---
923  // Snip from kdu_threads.h:
924  // If `descendants_only' is true, the function waits for all queues
925  // descended from `root_queue' to identify themselves as "finished"
926  // via the `kdu_thread_queue::all_done' function.
927  //---
928  m_threadEnv->join(m_threadQueue,
929  true); // descendants_only flag
930  }
931
932  for (band = 0; band < BANDS; ++band)
933  {
934  engine[band].destroy();
935  lineBuf[band].destroy();
936  }
937  tile.close();
938  allocator.restart();
939
940  // Done with tile flush it...
941  m_codestream.flush( &(m_layerByteSizes.front()), // layerbytes,
942  m_layerSpecCount, // num_layer_specs
943  0, // layer_thresholds
944  true, // trim_to_rate
945  true, // record_in_comseg
946  0.0, // tolerence,
947  m_threadEnv); // env
948
949  } // if (tile.exists())
950  else
951  {
952  result = false;
953  }
954  }
955  else // srcTile has null status...
956  {
957  result = false;
958  }
959
960  return result;
961
962 } // End: ossimKakaduCompressor::writeTile
ossimImageData::getWidth
virtual ossim_uint32 getWidth() const
Definition: ossimImageData.cpp:7235
OSSIM_UINT12
16 bit unsigned integer (12 bits used)
Definition: ossimConstants.h:298
ossimImageData::getNumberOfBands
virtual ossim_uint32 getNumberOfBands() const
Definition: ossimImageData.cpp:1659
OSSIM_UINT16
16 bit unsigned integer
Definition: ossimConstants.h:283
OSSIM_UINT14
16 bit unsigned integer (14 bits used)
Definition: ossimConstants.h:300
OSSIM_SINT16
16 bit signed integer
Definition: ossimConstants.h:284
ossimIrect::ul
const ossimIpt & ul() const
Definition: ossimIrect.h:274
ossimDataObject::getDataObjectStatus
virtual ossimDataObjectStatus getDataObjectStatus() const
Definition: ossimDataObject.cpp:56
ossimKakaduCompressor::m_alpha
bool m_alpha
If true write alpha channel.
Definition: ossimKakaduCompressor.h:373
ossimImageData::getHeight
virtual ossim_uint32 getHeight() const
Definition: ossimImageData.cpp:7240
ossim::getActualBitsPerPixel
OSSIM_DLL ossim_uint32 getActualBitsPerPixel(ossimScalarType scalarType)
Get actual bits per pixel for a given scalar type.
Definition: ossimCommon.cpp:392
OSSIM_UINT13
16 bit unsigned integer (13 bits used)
Definition: ossimConstants.h:299
OSSIM_FLOAT32
32 bit floating point
Definition: ossimConstants.h:289
OSSIM_UINT32
32 bit unsigned integer
Definition: ossimConstants.h:285
ossimKakaduCompressor::m_layerByteSizes
std::vector< kdu_core::kdu_long > m_layerByteSizes
Layer sizes provided in &#39;flush&#39; calls.
Definition: ossimKakaduCompressor.h:361
ossim_float64
double ossim_float64
Definition: ossimConstants.h:239
ossimKakaduCompressor::m_normTile
ossimRefPtr< ossimImageData > m_normTile
tile to use for normalized float data.
Definition: ossimKakaduCompressor.h:387
ossim::isSigned
OSSIM_DLL bool isSigned(ossimScalarType scalarType)
Definition: ossimCommon.cpp:370
ossim_sint16
signed short ossim_sint16
Definition: ossimConstants.h:232
OSSIM_SINT32
32 bit signed integer
Definition: ossimConstants.h:286
ossimKakaduCompressor::m_threadEnv
kdu_core::kdu_thread_env * m_threadEnv
Definition: ossimKakaduCompressor.h:354
ossimImageData::copyTileToNormalizedBuffer
virtual void copyTileToNormalizedBuffer(ossim_float64 *buf) const
Copies entire tile to buf passed in.
Definition: ossimImageData.cpp:5892
ossimIrect::lr
const ossimIpt & lr() const
Definition: ossimIrect.h:276
ossim::min
T min(T a, T b)
Definition: ossimCommon.h:203
ossimKakaduCompressor::m_imageRect
ossimIrect m_imageRect
Layer slopes array provided in &#39;flush&#39; calls.
Definition: ossimKakaduCompressor.h:367
ossimScalarType
ossimScalarType
Definition: ossimConstants.h:278
ossimImageData::getFloatBuf
virtual const ossim_float32 * getFloatBuf() const
Definition: ossimImageData.cpp:253
ossimRectilinearDataObject::getScalarType
virtual ossimScalarType getScalarType() const
Definition: ossimRectilinearDataObject.cpp:157
OSSIM_UINT15
16 bit unsigned integer (15 bits used)
Definition: ossimConstants.h:301
transfer_dwords
void transfer_dwords(kdu_core::kdu_line_buf &dest, kdu_core::kdu_int32 *src, int num_samples, int sample_gap, int src_bits, int original_bits, bool is_signed)
Definition: ossimKakaduCompressor.cpp:199
ossim::defaultMax
OSSIM_DLL double defaultMax(ossimScalarType scalarType)
Definition: ossimCommon.cpp:152
ossimKakaduCompressor::m_layerSpecCount
int m_layerSpecCount
Num specs provided in &#39;flush&#39; calls.
Definition: ossimKakaduCompressor.h:358
ossimIpt::y
ossim_int32 y
Definition: ossimIpt.h:142
ossimImageData::getBuf
virtual const void * getBuf() const
Definition: ossimImageData.cpp:179
ossimIpt::x
ossim_int32 x
Definition: ossimIpt.h:141
OSSIM_UINT8
8 bit unsigned integer
Definition: ossimConstants.h:281
ossimKakaduCompressor::m_threadQueue
kdu_core::kdu_thread_queue * m_threadQueue
Definition: ossimKakaduCompressor.h:355
ossimKakaduCompressor::m_codestream
kdu_core::kdu_codestream m_codestream
Definition: ossimKakaduCompressor.h:353
ossimImageData::getAlphaBuf
virtual const ossim_uint8 * getAlphaBuf() const
Definition: ossimImageData.cpp:161
OSSIM_UINT11
16 bit unsigned integer (11 bits used)
Definition: ossimConstants.h:297
ossimImageData::getOrigin
virtual const ossimIpt & getOrigin() const
Definition: ossimImageData.h:185
ossim_uint8
unsigned char ossim_uint8
Definition: ossimConstants.h:227
ossimNotify
OSSIMDLLEXPORT std::ostream & ossimNotify(ossimNotifyLevel level=ossimNotifyLevel_WARN)
Definition: ossimNotify.cpp:241
ossim_int32
int ossim_int32
Definition: ossimConstants.h:234

Member Data Documentation

◆ m_alpha

bool ossimKakaduCompressor::m_alpha
private

If true write alpha channel.

Definition at line 373 of file ossimKakaduCompressor.h.

Referenced by getAlphaChannelFlag(), setAlphaChannelFlag(), and writeTile().

◆ m_codestream

kdu_core::kdu_codestream ossimKakaduCompressor::m_codestream
private

Definition at line 353 of file ossimKakaduCompressor.h.

Referenced by finish(), setTlmTileCount(), and writeTile().

◆ m_imageRect

ossimIrect ossimKakaduCompressor::m_imageRect
private

Layer slopes array provided in 'flush' calls.

Image rectangle. Used for clip in writeTile.

Definition at line 367 of file ossimKakaduCompressor.h.

Referenced by initialize(), and writeTile().

◆ m_jp2FamTgt

kdu_supp::jp2_family_tgt* ossimKakaduCompressor::m_jp2FamTgt
private

Definition at line 351 of file ossimKakaduCompressor.h.

Referenced by finish().

◆ m_jp2Target

kdu_supp::jp2_target* ossimKakaduCompressor::m_jp2Target
private

Definition at line 352 of file ossimKakaduCompressor.h.

Referenced by finish(), openJp2Codestream(), writeGeotiffBox(), and writeGmlBox().

◆ m_layerByteSizes

std::vector<kdu_core::kdu_long> ossimKakaduCompressor::m_layerByteSizes
private

Layer sizes provided in 'flush' calls.

Definition at line 361 of file ossimKakaduCompressor.h.

Referenced by finish(), and initialize().

◆ m_layerSpecCount

int ossimKakaduCompressor::m_layerSpecCount
private

Num specs provided in 'flush' calls.

Definition at line 358 of file ossimKakaduCompressor.h.

Referenced by getNumberOfLayers(), and initialize().

◆ m_levels

ossim_int32 ossimKakaduCompressor::m_levels
private

Reduced resolution levels.

Definition at line 376 of file ossimKakaduCompressor.h.

Referenced by getLevels(), initialize(), and setLevels().

◆ m_normTile

ossimRefPtr<ossimImageData> ossimKakaduCompressor::m_normTile
private

tile to use for normalized float data.

Definition at line 387 of file ossimKakaduCompressor.h.

Referenced by finish().

◆ m_options

std::vector<ossimString> ossimKakaduCompressor::m_options
private

Container for kakadu options to pass to kdu_params::parse_string.

Definition at line 382 of file ossimKakaduCompressor.h.

Referenced by setOptions().

◆ m_qualityType

ossimKakaduCompressionQuality ossimKakaduCompressor::m_qualityType
private

Definition at line 384 of file ossimKakaduCompressor.h.

Referenced by getQualityType(), and setQualityType().

◆ m_reversible

bool ossimKakaduCompressor::m_reversible
private

Lossless or lossy.

Definition at line 370 of file ossimKakaduCompressor.h.

Referenced by getReversibleFlag(), setReversibleFlag(), and setWaveletKernel().

◆ m_target

ossimKakaduCompressedTarget* ossimKakaduCompressor::m_target
private

Definition at line 349 of file ossimKakaduCompressor.h.

Referenced by finish().

◆ m_threadEnv

kdu_core::kdu_thread_env* ossimKakaduCompressor::m_threadEnv
private

Definition at line 354 of file ossimKakaduCompressor.h.

Referenced by finish(), and writeTile().

◆ m_threadQueue

kdu_core::kdu_thread_queue* ossimKakaduCompressor::m_threadQueue
private

Definition at line 355 of file ossimKakaduCompressor.h.

Referenced by finish(), and writeTile().

◆ m_threads

ossim_int32 ossimKakaduCompressor::m_threads
private

Number of threads.

Definition at line 379 of file ossimKakaduCompressor.h.

Referenced by getThreads(), and setThreads().

The documentation for this class was generated from the following files:
Generated on Fri Aug 3 2018 08:47:07 for OSSIM - Open Source Software Image Map by   doxygen 1.8.14
